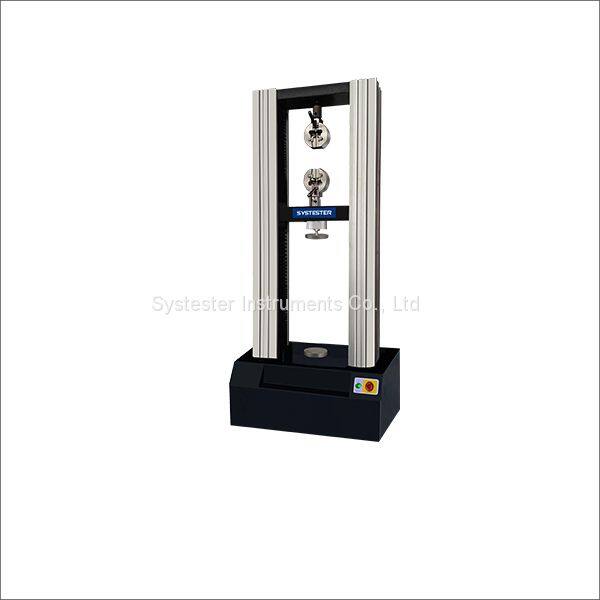

5KN UTM For Material Test Auto Servo Tensile Testing Machine UTM

5KN UTM For Material Test Auto Servo Tensile Testing Machine UTM

Catalogs

What we can provide

Packages & Logistics

About Quality

Product Details

Application:

Applies to the test of all kinds package materials and films.

5KN UTM For Material Test Auto Servo Tensile Testing Machine UTM

Features:

1: Professionally design, multiple medical test fixture optional

2: Bilingually controlled by computer and embedded system

3: Highly accurate load cell, Bi-direction test.

4: High performance servo drive.

5: Test speed can be preset freely through software.

6: Selectable load cell: 50N, 100N, 250N, 500N, 1000N.

7: Silence running,<25db@1000.

8: ISO, ASTM standards test available and non-standard test available.

9: Electronic limit, computer preset, non-mechanical limit.

10: Overload protection, less power consumption.

11: DB9 RS232 communication port .

12: Tensilyst workstation support.

13: Break force, elastic modulus, seal strength, tensile,90 peeling strength, 180 peeling strength test available.

14: Historical data traceable, system log.

15: 5 degrees user management.

16: Group test, auto multiple curves overlaying display, auto statistic calculation.

17: DSM system is optional(Laboratory Management Information System), easy to manage test data.

5KN UTM For Material Test Auto Servo Tensile Testing Machine UTM

Technical Indexes:

1. Load range: 1000N, 2000N, 3000N, 5000N, 10000N (optional)

2. Accuracy: 0.05%FS

3. Max travel distance:1000mm

4. Displacement resolution: 0.01mm

5. Test speed: 0.1mm/min~1000mm/min

6. Sample width: 38mm (standard)

7. Sample thickness: 5mm (standard)

8. Power supply: AC 220V 50Hz

Standards:

ASTM, ISO, GB
