Factory Selling Eco Friendly Paper Straw Manufacturing Machine High Speed Paper Straw Machine

About us

Shenzhen Ruicheng Technology Co., Ltd. is a company dedicated to the research and development, production and promotion of environmental protection machinery and equipment, industrial equipment, food processing machinery and equipment, packaging machinery and equipment, textile machinery and equipment, non-standard automation equipment, optical inspection equipment and medical equipment, etc. A technology company integrating sales and marketing.

Equipment introduction:

It is suitable for the production of small paper tubes (inner diameter 5-12 mm), such as paper straws, ballpoint pen refills, yarn inner tubes, etc.

Features: Characteristic:

1. Automatically cut and automatically drop the tube, and automatically change speed and automatically return when cutting;

2. Equipped with a multi-knife cutting device, the finished product can be rolled out at one time, eliminating the need for secondary cutting and saving labor time.

Device parameters:

Number of winding paper layers: 3 layers

Host power: 3KW

Reel diameter: 5-12mm

Coil thickness: 0.5-1mm

Cutting method: 6 knives cut at the same time

Gluing method: single side glue

Voltage: 380V*3P/50Hz

Working pressure: 0.6Mpa

Host size: 3300*1100*1650

Floor area: 6000*8000 mm

Total weight: 1300KG

Product feature

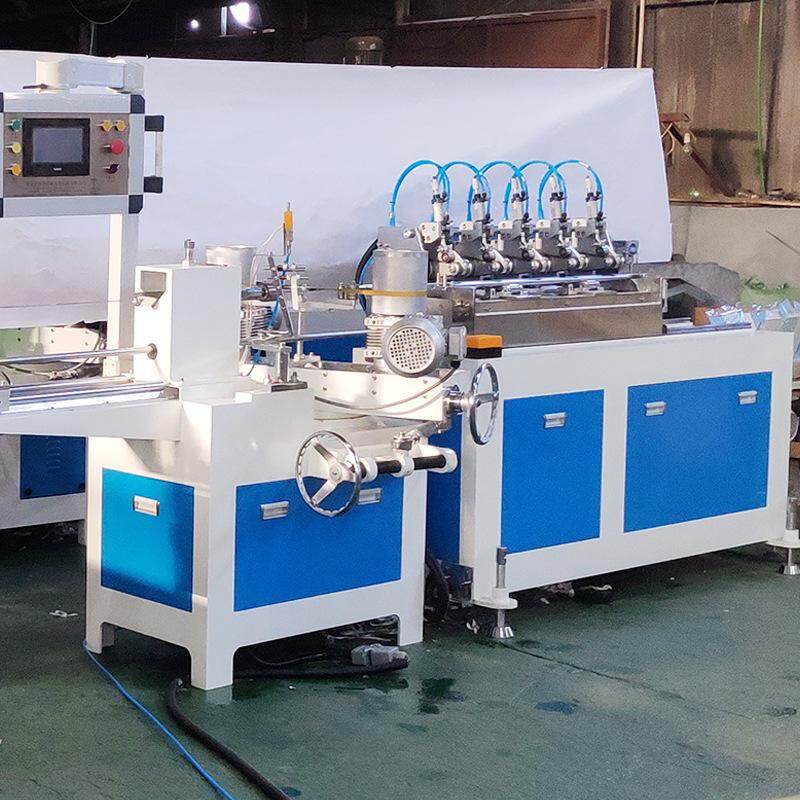

The high-speed paper straw machine integrates paper feeding, gluing, winding and cutting into a whole, and is equipped with a CNC multi-knife cutting system. The finished paper pipe can be cut online. 6 mm; 8 mm; 10 mm, etc.

1. The machine is controlled by PLC, and the main machine is equipped with frequency conversion and speed adjustment.

2. The cutting part adopts the servo multi-cutter cutting system, which can synchronously follow the cutting of motor, with higher accuracy and time-saving efficiency.

3. The body and main accessories are made of stainless steel to ensure the product's health and environmental protection.
