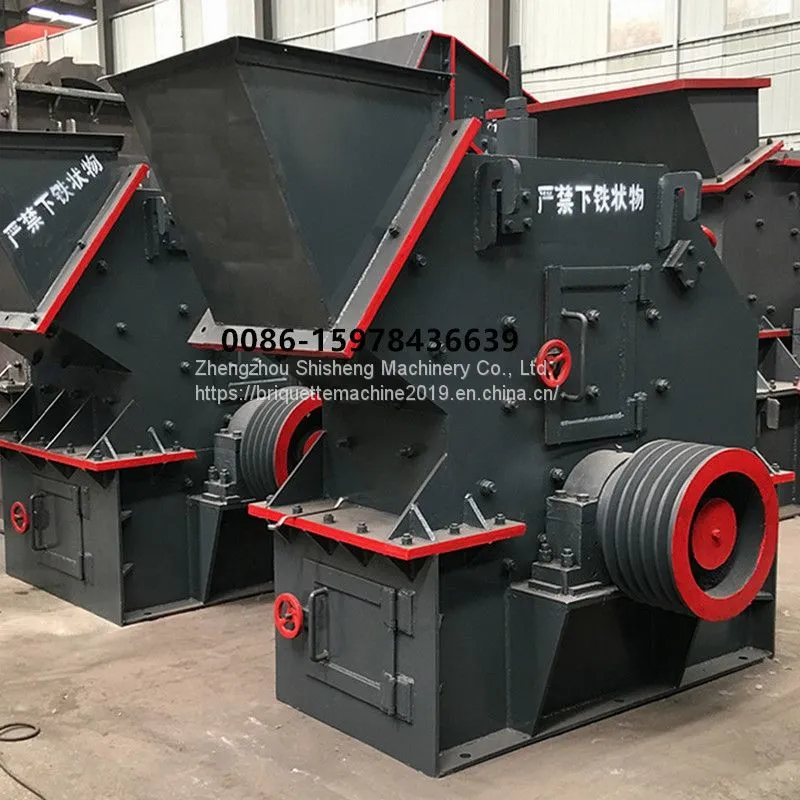

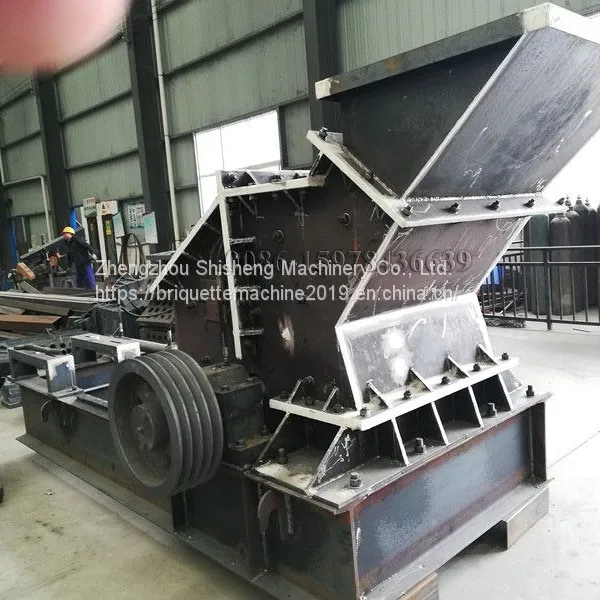

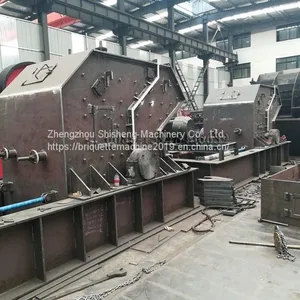

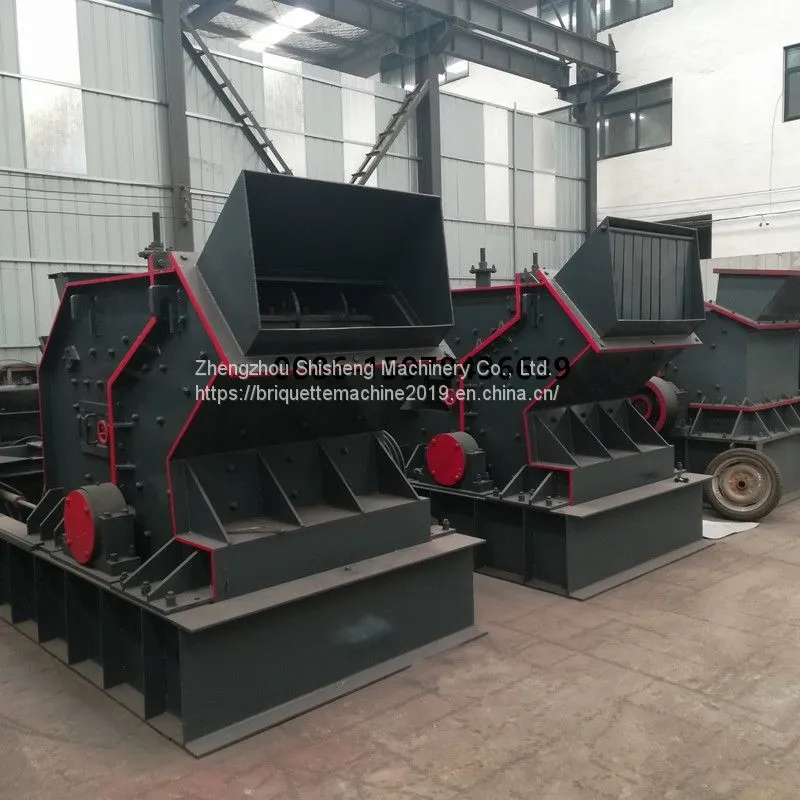

Crusher Fine Gravel
Crusher Fine Gravel Introduction:

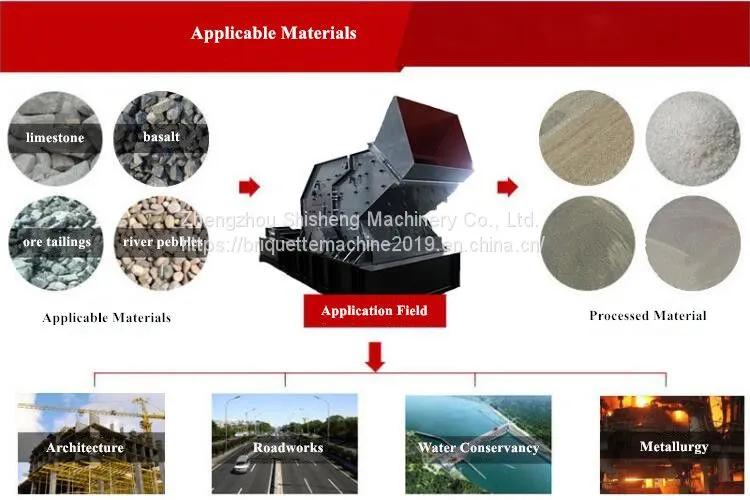

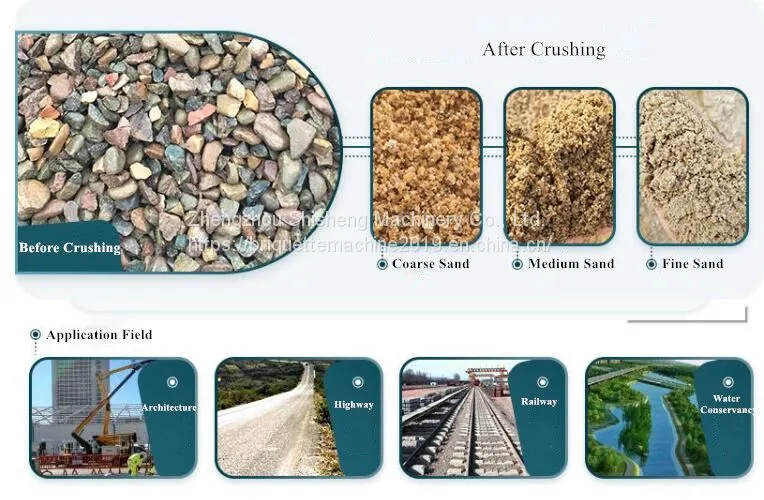

Crusher Fine Gravel is the most effective and reliable gravel machine. The new type fine crusher suitable for crushing granite, basalt, limestone, river gravel, cement clinker, quartz, iron ore, bauxite and other minerals. Also the fine crusher could apply to artificial Sand, highway, railway, water conservancy, airport, construction, cement, refractory, metallurgical and other industries for the production of superior quality stone.
Crusher Fine Gravel Features:
1. Feeding size: 120mm-200mm
2. More than 85% of output below 5mm

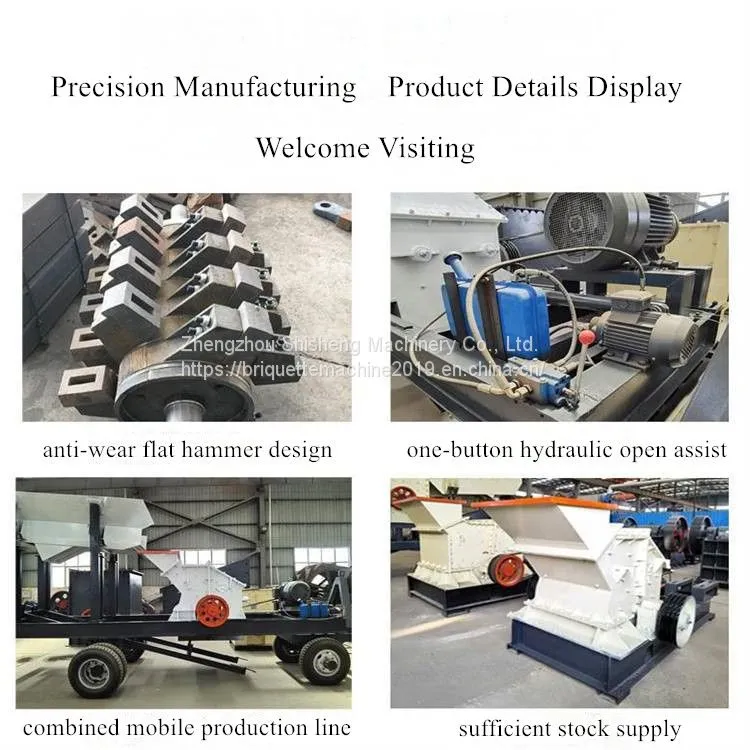

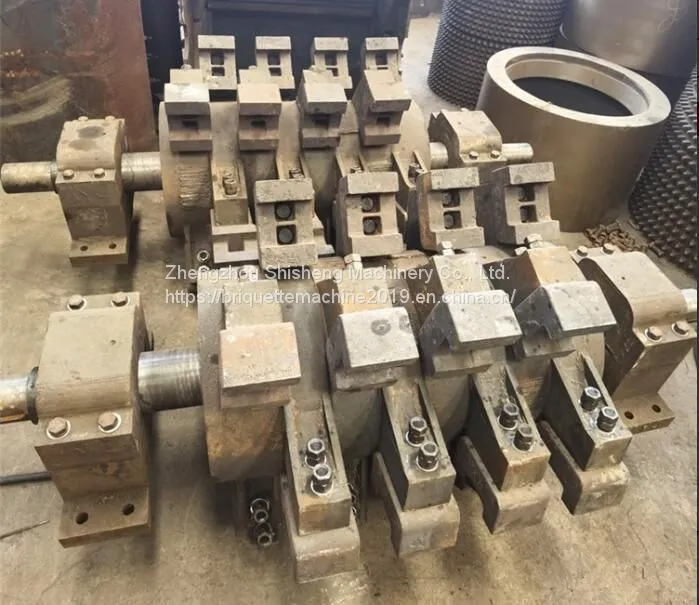

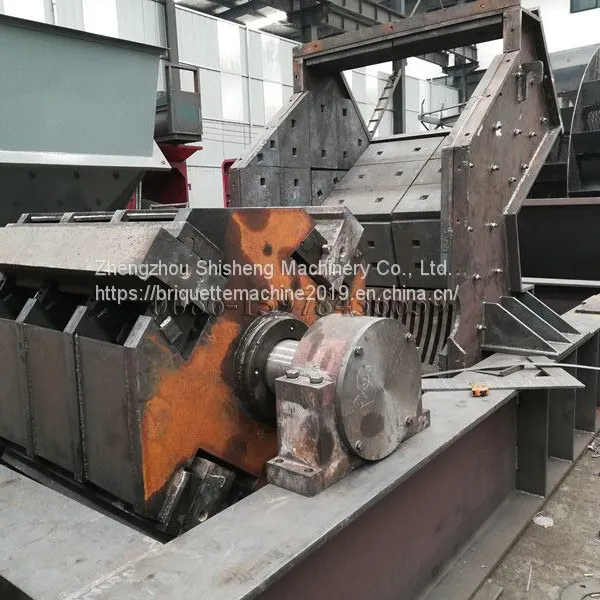

3. Even particle size small, higher output, more durable plate hammer
4. Lower motor power, don’t need thirdly crushing
5. Simple structure, easy maintenance and stable running.
Crusher Fine Gravel Technical Parameter:
| Model | 800*400 | 800*600 | 800*800 | 1010*1010 | 1200*1200 | 1400*1400 | 1600*1600 | 1800*1800 |
| Feeding Inlet(mm) | 400*185 | 500*250 | 550*300 | 1000*350 | 1200*450 | 1500*500 | 1600*550 | 1800*800 |
| Feeding Size(mm) | ||||||||
| Output Size(mm) | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 |
| Discharge Gap Adjusting Range(mm) | 5-50 | 5-50 | 5-50 | 5-50 | 5-50 | 5-50 | 5-50 | 5-50 |
| Cement Clinker Capacity(t/h) | 10-30 | 10-40 | 20-45 | 25-55 | 35-90 | 50-150 | 85-210 | 125-270 |
| Limestone Capacity(t/h) | 18-45 | 23-55 | 28-65 | 35-75 | 45-110 | 50-150 | 95-260 | 140-310 |
| Motor Power(kw) | 4P 37kw | 4P 45kw | 4P 45kw | 4P 55kw | 6P 110kw | 6P 160kw | 4P 250kw | 4P 315kw |
| Weight(t) | 3.9 | 4.5 | 6 | 10.5 | 14.4 | 22 | 35 | 49.7 |
