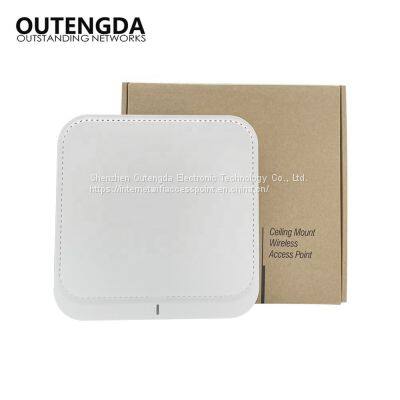

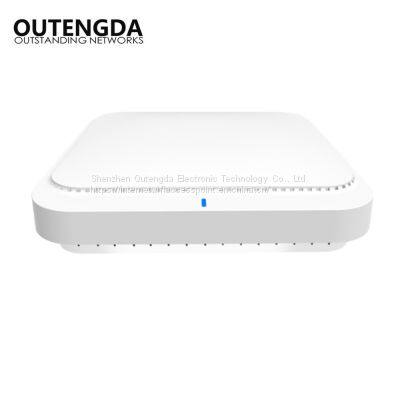

Help CenterNew 11ax Wi-Fi6 Ceiling Wireless AP 1800Mbps 802.11ax 200 End Users Dual Radio 5G Support PoE DC WiFi6 Router 11AX Access Point
Related Products
-
802.11ax Wifi6 In Wall Access Point With Gigabit Lan Support Poe Pwoer Indoor Soho Hotel Enterprise Multi-Port Embedded RouterUS$ 60 - 90MOQ: 1 Piece -
600Mbps 802.11AC 5G High Power Outdoor CPE AP Router WiFi Signal Hotspot Amplifier Repeater Long Range Wireless PoE Access PointUS$ 135 - 200MOQ: 1 Piece
-
600Mbps 802.11AC 5G High Power Outdoor CPE AP Router WiFi Signal Hotspot Amplifier Repeater Long Range Wireless PoE Access PointUS$ 135 - 200MOQ: 1 Piece
-
11AC 2.4G 5G WiFi Access Point Outdoor CPE AP Router Wi-Fi Signal Amplifier Repeater Outside Long Range WiFi Wireless Router PoeUS$ 135 - 200MOQ: 1 Piece
-
MP938 300Mbps in Wall AP Wireless Router Access Point With RJ45 RJ11 WPS WISP WIFI RepeaterUS$ 15 - 25MOQ: 1 Piece
802.11ax Wifi6 High-Power Ceiling Ap Enterprise Wireless Access Point For Smart Hospital Hotel Distributed Wifi Coverage Router
Product Description
CAX840 Is A High-Performance 4t4r Dual-Band 802.11ax Product That Supports 4g/5g, Optical Fiber Interface, Reserved Zigebee, Zwave Wireless Product External Interface Design. The Maximum Bandwidth That Can Be Supported-2.4g Is 600mbps, 5.8g Supports 1200mbps
Product Features
• It Has Better Transmission Quality, Higher Transmission Rate, And The Maximum Concurrent Rate Can Reach 1800mbps.
• The Ipq6000 Chip Is Adopted, Which Greatly Expands The User Capacity And Can Support 150+ Users.
• The Heat Sink Adopts A Snap Structure Design And Surface Nano-Coating Treatment, Which Makes The Heat Dissipation Effect More Ideal
• The Radio Frequency Adopts Skyworks High-Power Pa And Fem, With Stable Performance, Wide Wireless, And Longer Transmission.
• The Basic Software Is Open Software, Which Enhances Scalability And Compatibility.
Specifications | |
Product Number |
CAX840 |
CPU |
IPQ6000 +QCA8075+QCN5022+QCN5052 |
Flash |
SPI NOR 8MB |
DDR3L |
512MB*1 |
NAND |
128MB |
2.4G RF |
QCN5022-2.4G external FEM uses SKY85333-11 |
5.8G RF |
QCN5052-5.8G external FEM uses SKY85747-11 |
Built-in antenna |
4*2.4G/5.8G dual-band antennas, each gain: 3 dBi+ |
2.4G working frequency band |
2.4GHz–2.484GHz |
2.4G WIFI transmission protocol |
802.11 b / g / n /ax |
5G working frequency band |
5.150GHz～5.850GHz |
5G WIFI transmission protocol |
802.11 a / n /ac /ax |
Highest WIFI Speed |
5G: 1200Mbps 2.4G:600Mbps |
Maximum support for wireless access |
150+ |
2.4G maximum transmit power |
|
5.8G maximum transmit power |
|
WAN |
1*10/100/1000, 802.3AT POE |
LAN |
1*10/100/1000 |
External buttons |
reset button (long press for 6-10 seconds to restore the factory default configuration) |
DC 2.0 |
12V1.5A |
POE |
802.3at |
Status Indicator |
WAN port light, LAN port light, tri-color light (three different colors indicate: sys-red, 2.4G-green, 5.8G-blue) |
Maximum power consumption |
|
Product Size |
198mm * 198mm * 41mm |
Operating temperature |
-20°C to 45°C |
Storage temperature |
0°C to 70°C |
humidity |
5%～95% (no condensation) |
