Acrel AC Current Sensor Input:0-600A Output:0-20mA/4~20mA Diameter:50mm CTs Accuracy Class 0.2 0.5 Current Transducer BA50-AI/I
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel AC Current Sensor Input:0-600A Output:0-5V/0-10V Diameter:50mm CTs Accuracy Class 0.2 0.5 Current Transducer BA50-AI/VNegotiableMOQ: 1 -
Acrel AC Current Transducer Input:AC 0-10A Output:DC 4-20mA/0-20mA CTs True RMS Accuracy Class 0.5 0.2 Current Sensor BA05-AI/INegotiableMOQ: 1
-
Acrel AC Current Sensor Input AC 0-10A Output DC 4-20mA/0-20mA CTs True RMS Accuracy Class 0.5 0.2 Current Transducer BA05-AI/INegotiableMOQ: 1
-
Acrel AC Leckage Current Sensor Input:AC 0-1A Output:DC 0-5V/0-10V Diameter:50mm CT TrueRMS Residual Current Sensor BA50L-AI/V-TNegotiableMOQ: 1
-
Acrel AC Residual Current Sensor Input:AC 0-1A Output:DC 4-20mA/0-20mA Diameter:50mm CT TrueRMS Current Transformer BA50L-AI/I-TNegotiableMOQ: 1
Solutions & Applications
Application Scenario
Petrochemical
Siderurgy
Rail Transportation
Products Description

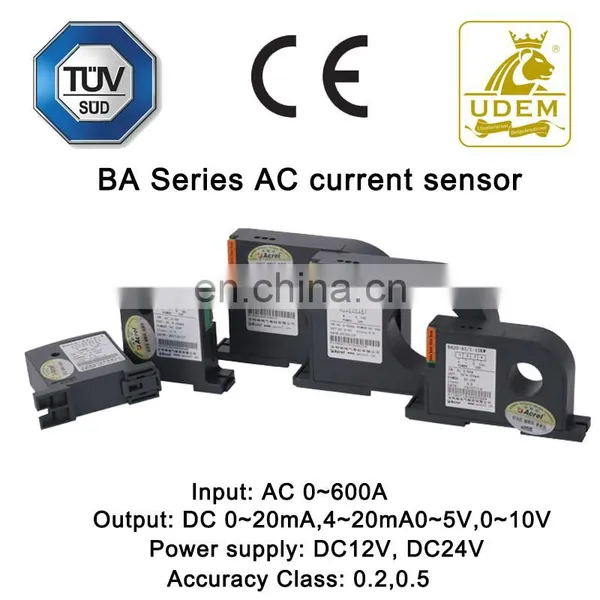

BA50-AI/I ----------BA Series AC Current Sensor

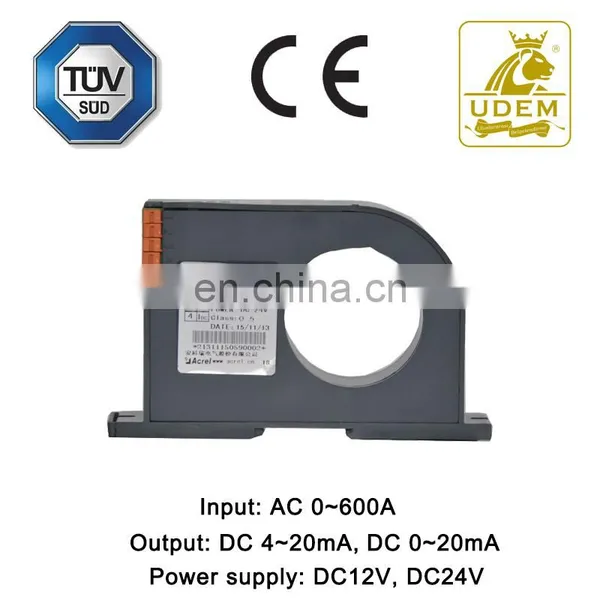

BA50-AI/I, AC current input, DC current output
BA series CTs can measure the AC from power grid in real time by using electromagnetic induction principle (Lenz's Law). Meanwhile,with constant current and linear temperature compensation technique, can BA current sensors
transfer AC input into standard DC signal output isolatedly. Also,since the products are powered by safe DC 24V or DC 12V power supply, BA CTs have features of such as high overload sustainability, safe using protection, low power consumption and etc. Thus they can be widely used in the industrial field like industry automation

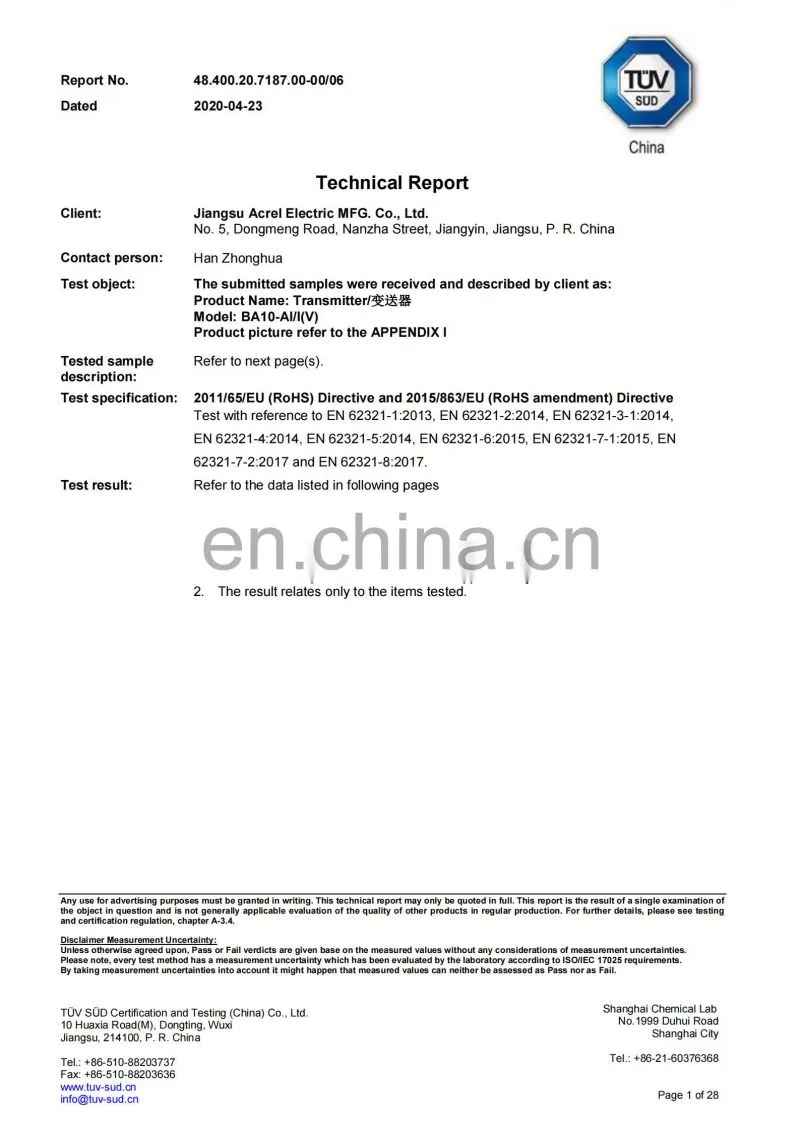

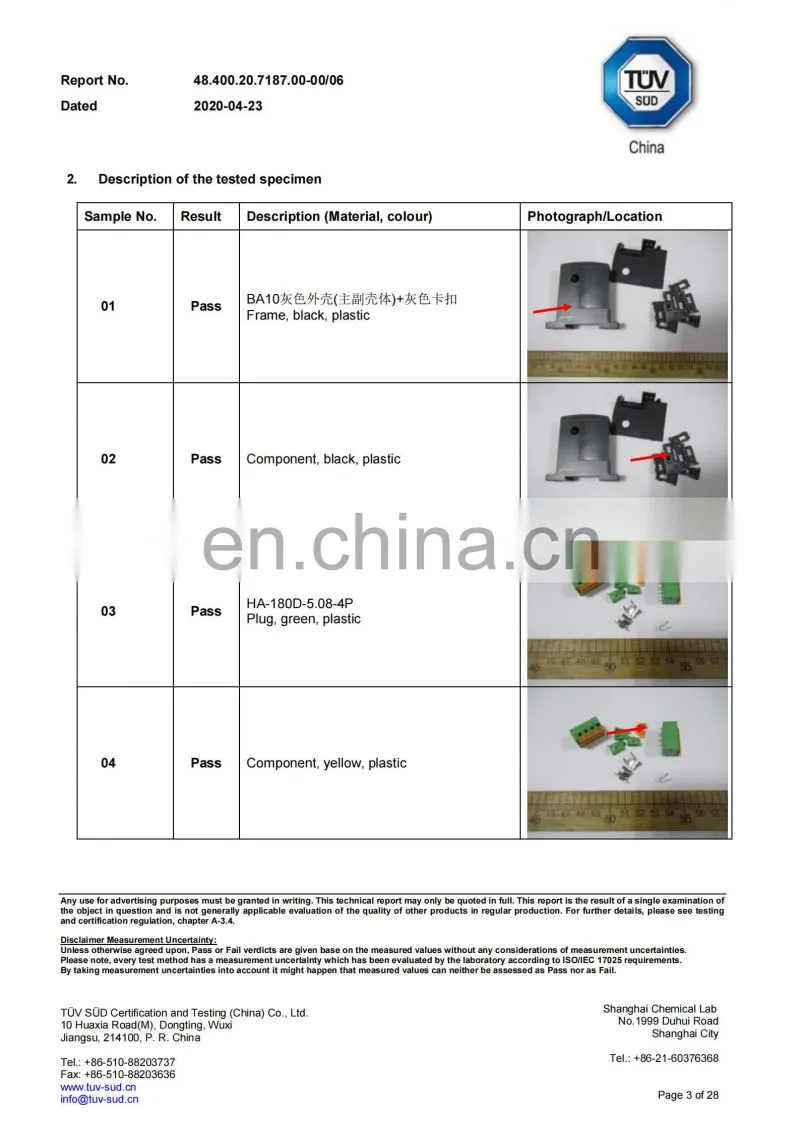

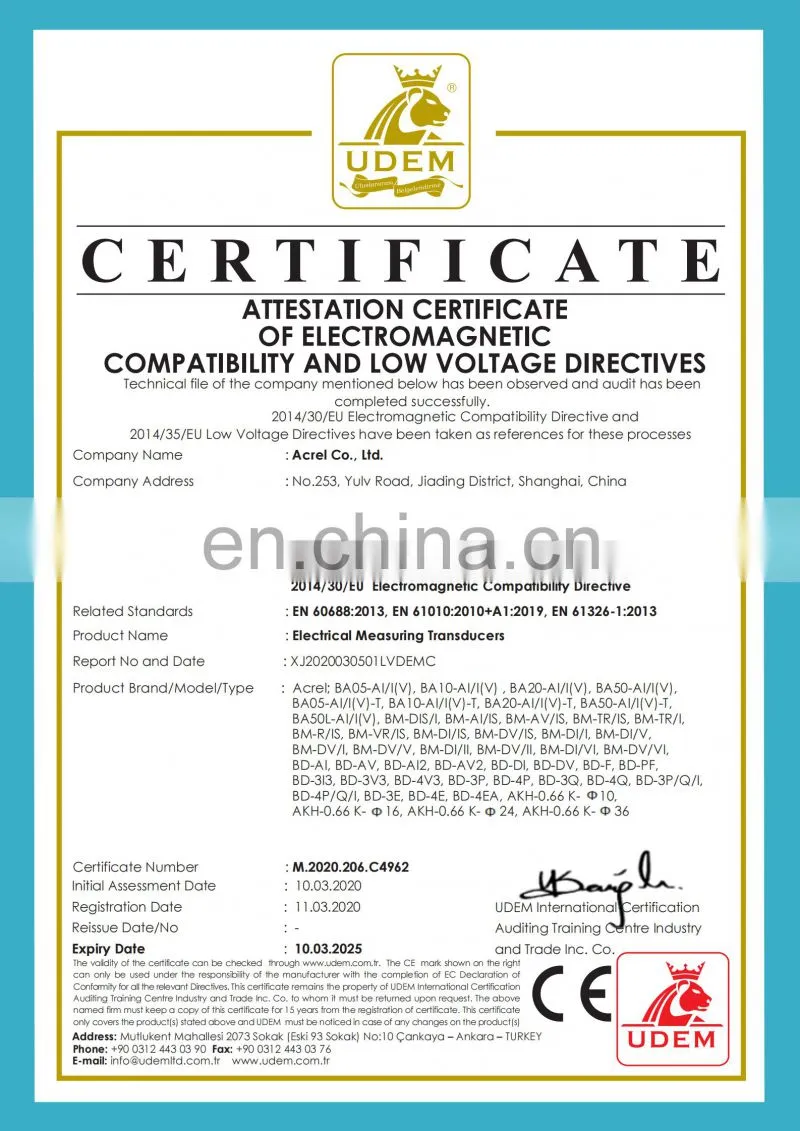

Also, as the prove for quality, BA series AC current sensor is strictly compliant of the standard of CE (EN 60688:2013, EN 61010:2010+A1:2019, EN 61326-1:2013);TUV(EN 62321-1:2013, EN 62321-2:2014 and etc). Certificates are shown below

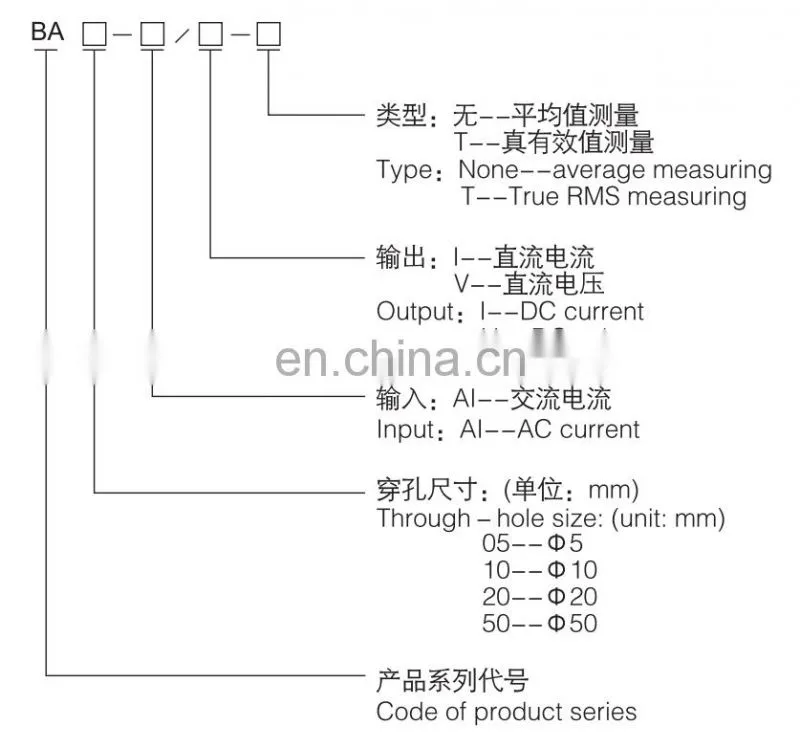

Explanation of Model Name
Function & Parameter
General Specification
Item |
Description |
||||||
Power
Supply
|
Voltage |
DC 24V or DC 12V |
|||||
Consumption |
≤ 1W |
||||||
Insulation Resitance |
＞100 MΩ |
||||||
Withstand Strength |
Between input/output, power supply 2.0 kV/1min, 50Hz |
||||||
Temperature Coefficient |
≤200 PPM/℃，under -10℃~+55℃ |
||||||
Environment
|
Temperature |
Working: -10℃~+55℃, Storage: -25℃~+70℃。 |
|||||
Humidity |
≤95% RH, No condensation, without corrosive gas |
||||||
Altitude |
TS35 guide rail or fiexed on cabinet with screws |
||||||
Technical Parameters
Paramters |
Value&Description |
||||||
Accuracy Class |
class 0.5, class 0.2 |
||||||
Input
|
Nominal Value |
AC 0~600 A |
|||||
Overload |
continuous overload 1.2×Ib (1.2 times of nominal value); instant overload 10×Ib/1s (10 times of nominal value for 1 second)
|
||||||
Absorbed Power |
≤1 VA |
||||||
Frequency response |
25Hz~800Hz (average); 25Hz~5000 Hz(true RMS), specialized for power frequency scenario
|
||||||
Output |
Nominal Value |
DC 4~20mA, DC 0~20mA etc. |
|||||
Load Resistance |
≤500 Ω with current output; ≤1000 Ω with voltage output |
||||||
Response Time |
≤ 350 ms (average); ≤100 ms (true RMS) |
||||||
Dimension & Installation

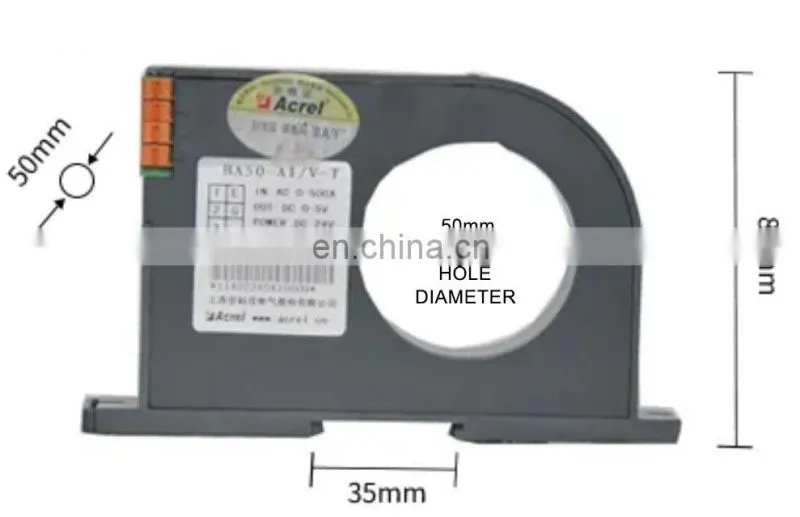

Dimension Overview
Wiring Illustration
Wiring instruction for BA with current output
1--E: stand for power supply anode (+)
2--G: stand for power ground
3--Output ground(can share groud with power supply, suitable for long rage transmission)
4--IDC: stand for DC current output anode(+)

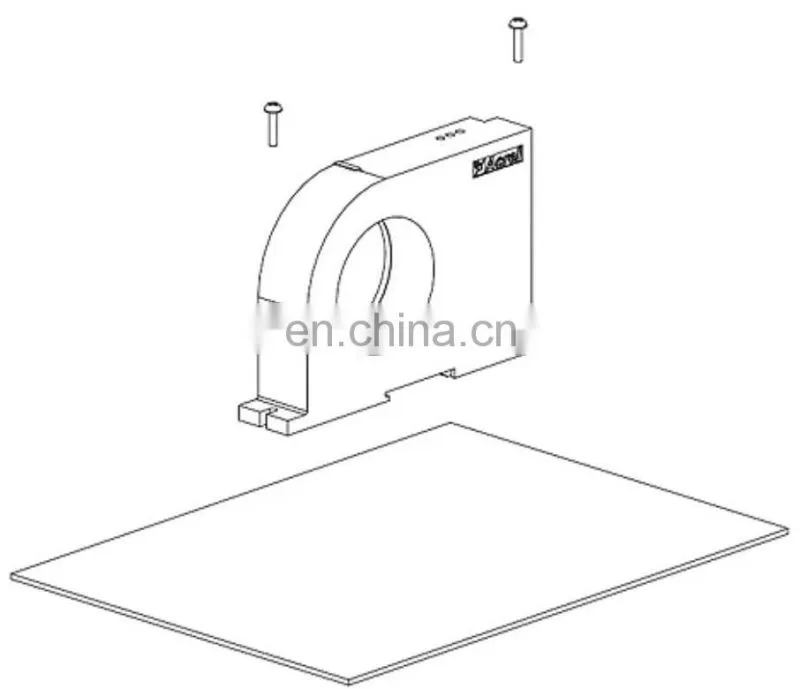

Installation Instruction

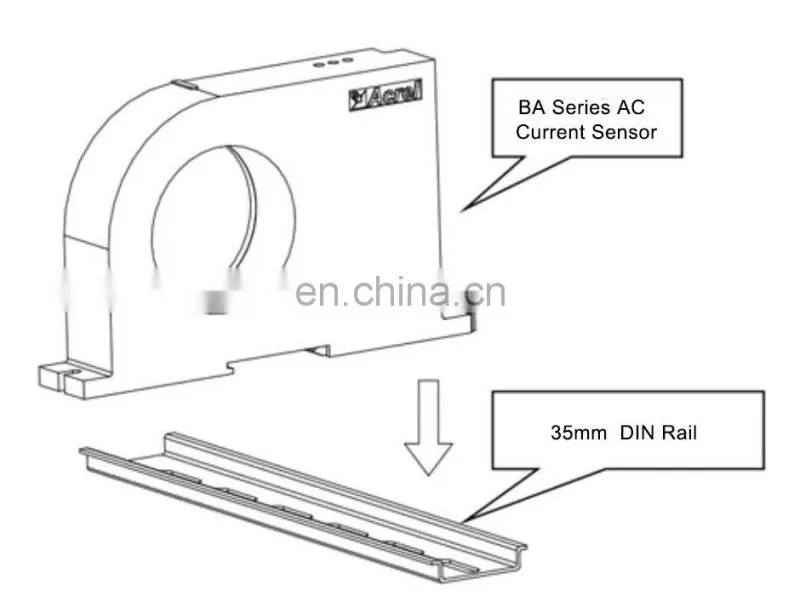

① 35mm DIN rail installation
② Fixed by screw
