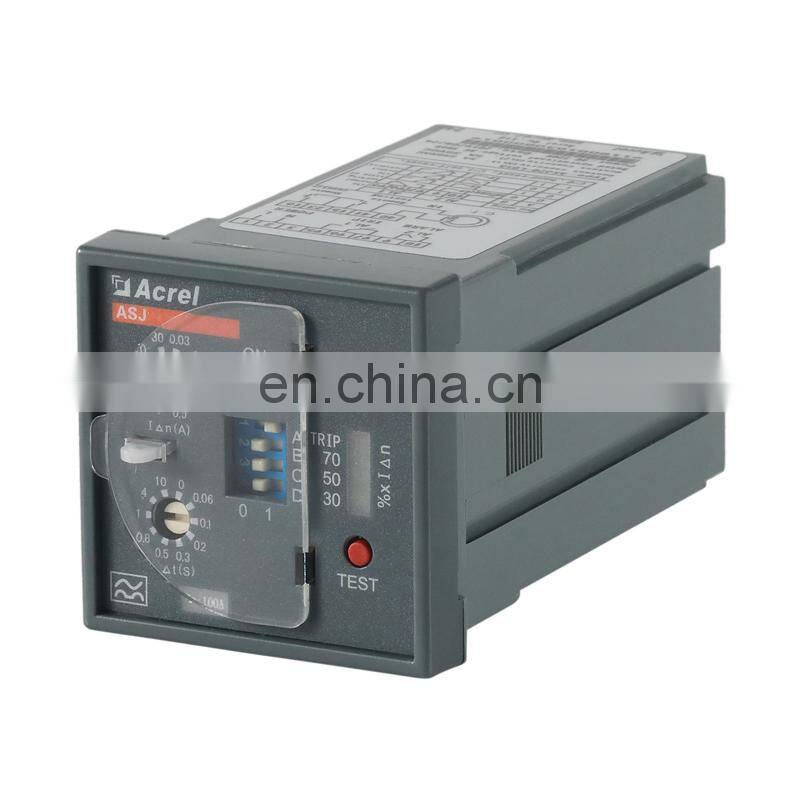

Help CenterAcrel ASJ20-LD1C Smart Din Rail Earth Leakage Fault Protection Relay
Related Products
-
Acrel ASJ20-LD1C Din 35mm-installing Earth Leakage Protection Relay High Quality Ac Residual Current Circuit RelayNegotiableMOQ: 1 -
Acrel ASJ10-LD1C Leakage Protection Current Relay With Warning Relay OutputNegotiableMOQ: 1
-
Acrel Earth Leakage Protection Relay ASJ10-LD1A Series Residual Current RelayNegotiableMOQ: 1
-
Acrel ASJ10-LD1A Din Rail Digital Measuring Residual Current Protection Relay Earth Leakage Protection RelayNegotiableMOQ: 1
-
ASJ Series of the Action Relay of After-Current ASJ10-LD1ANegotiableMOQ: 1 Piece

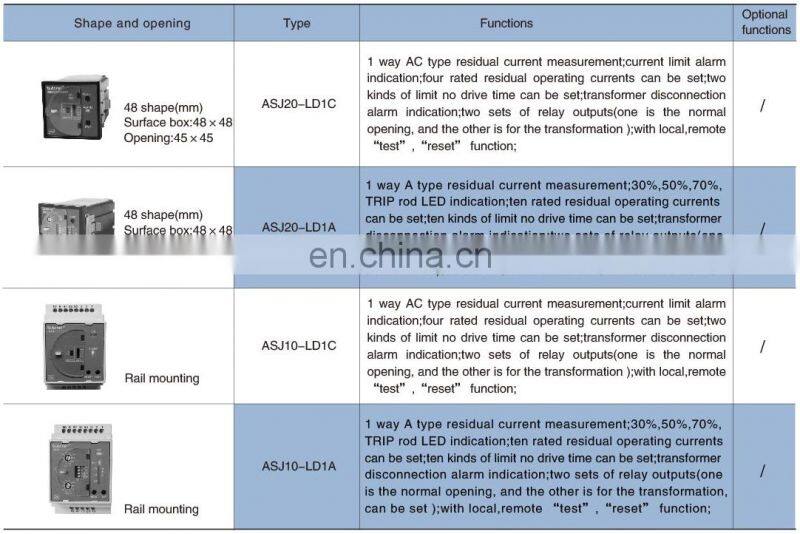

ASJ20-LD1C: Residual Current Relay
|
|
* The measurement of A-type residual current * The streamer display of current percentage
* The setting of rated residual action current
* The setting of non-driving time of limitation
* Two- pair relay output
* Possessing the function of on-the-spot and long- distance testing and resetting |
| Information | parameter | Company profile | Certificate |
Characteristic
|
Frequency 50Hz±5Hz Auxiliary power supply AC110V,AC220V,DC85 ~270V (permissible error±10%) Consumption ≤5W |
|
|
Installation
Pannel mounted
Dimension(L*W*H)
Panel size: 48×48(mm)
Cutout: 45×45(mm) |

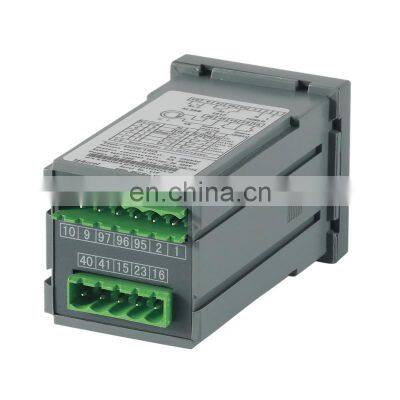

Typical connection
| Information | parameter | Company profile | Certificate |

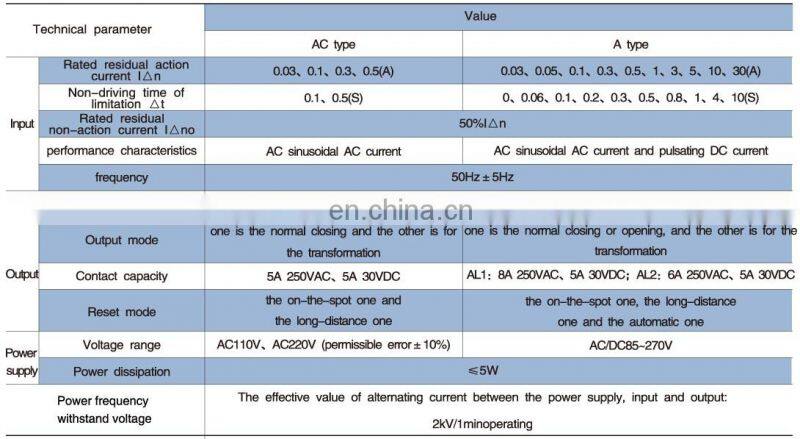

Parameter
| Information | parameter | Company profile | Certificate |
About us
Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise concentrating on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. ‘Acrel’ is equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users to realize energy visual management ,supply energy data services and improve electrical efficiency and safety. ‘Acrel’ has maintained steady growth since its listing in 2012. The company will adhere to the concept of ‘innovation,high-efficiency,unity and honesty’ and it provides more high-quality solutions,products and service for power system users and micro-grid.
Packing
Shipping
Function
