ARD2F Smart Motor Protector

Contact US

email shelly@acrel.cn
whatsapp 86-18702111813
wechat 86-18702111813


 Acel ARD2F-25 Din rail small intelligent motor protector main module rated current 25a



* Measurement functions are divided into basic measurement (current parameter) and co-selection measurement (voltage, power, phase sequence, residual current (leakage current)

* Start timeout, overload, stall, block, underload, phase failure, unbalance, residual current (ground/leakage), temperature, external fault, phase sequence, overvoltage, undervoltage, underpower, overpower, tE time Motor comprehensive protection function

* 9-channel DI passive dry node input, signal power supply with built-in DC24V power supply

* 5-channel DO output, which can meet the direct start, star-delta start, autotransformer start, soft start and other starting modes. Real-time remote control "start/stop" operation of the remote master station can be realized through the communication bus

* It has standard RS-485 communication interface and adopts Modbus_RTU and Profibus_DP communication protocol to ensure fast and reliable communication of the host computer

* It has a DC4-20mA analog output interface and is directly connected to the DCS system to monitor the field devices.




Information parameter Company profile Certificate
Characteristic

* Rated U and I: AC380/660V,rated current up to 800A

* LCD display for U,I,P,Q etc

* 4 digitals LED display

Function





Accuracy

U, I: Class 1.5

Frequency

Range: 45-65Hz

Auxiliary power supply

AC85V-265V/DC100V-350V

SOE event recorder

Record 8 fault messages

 Acel ARD2F-25 Din rail small intelligent motor protector main module rated current 25a
Acel ARD2F-25 Din rail small intelligent motor protector main module rated current 25a
    Installation:
    1,Main body:DIN 35mm
    2,Display unit:Panel mounted

   Dimension(L*W*H):
    81.5mm*86mm*90mm

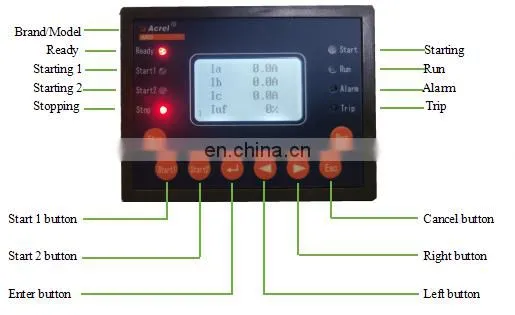

Appearance

 Acel ARD2F-25 Din rail small intelligent motor protector main module rated current 25aAcel ARD2F-25 Din rail small intelligent motor protector main module rated current 25aAcel ARD2F-25 Din rail small intelligent motor protector main module rated current 25a

Wiring



Acel ARD2F-25 Din rail small intelligent motor protector main module rated current 25a



Typical connection



Acel ARD2F-25 Din rail small intelligent motor protector main module rated current 25a

Information parameter Company profile Certificate
Parameter



Acel ARD2F-25 Din rail small intelligent motor protector main module rated current 25aAcel ARD2F-25 Din rail small intelligent motor protector main module rated current 25a

 Acel ARD2F-25 Din rail small intelligent motor protector main module rated current 25a



Information parameter Company profile Certificate
About us



Acel ARD2F-25 Din rail small intelligent motor protector main module rated current 25a

Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise concentrating on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. ‘Acrel’ is equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users to realize energy visual management ,supply energy data services and improve electrical efficiency and safety. ‘Acrel’ has maintained steady growth since its listing in 2012. The company will adhere to the concept of ‘innovation,high-efficiency,unity and honesty’ and it provides more high-quality solutions,products and service for power system users and micro-grid.
