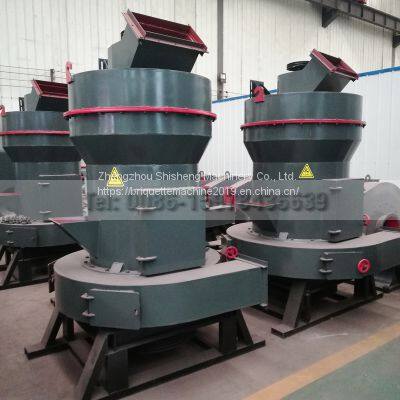

Raymond Grinding Mill
Raymond Grinding Mill Introduction:
This Raymond Grinding Mill is widely used in barite, calcite, carborundum, silicon carbide, potassium feldspar, marble, limestone, dolomite, fluorite, lime, titanium dioxide, activated carbon, bentonite, kaolin, white cement, calcium carbonate, gypsum, glass, manganese, titanium, refractory materials, insulation materials, coal gangue, carbon black, coal, clay, talc, shell, resin, ferric oxide, hong huang dan, quartz, petroleum coke with hardness less than 7 humidity, in more than 500 in charge of flammable and explosive materials powder processing under 6%, the product size can be adjusted in the range of 60-325 mesh, part of the material up to 1000 mesh.
Raymond Grinding Mill Technical Parameter:
| Model | Roller Number(pcs) | Mill Roll Size(R*Hmm) | Size and Height of Grinding Ring(mm) | Maximum Feed Length(mm) | Product Granularity(mm) | Capacity(t/h) | Motor Power(kw) |
| 3R1510 | 3 | 150*100 | 480*100 | 15 | 0.2-0.044 | 0.3-1 | 7.5 |
| 3R2615 | 3 | 260*150 | 780*150 | 20 | 0.2-0.044 | 1-1.5 | 18.5 |
| 3R2715 | 3 | 270*150 | 830*150 | 20 | 0.2-0.044 | 1-3 | 22 |
| 3R3016 | 3 | 300*160 | 880*160 | 20 | 0.2-0.044 | 1-4 | 30 |
| 3R3018 | 3 | 300*180 | 990*180 | 20 | 0.2-0.044 | 3-5 | 30 |
| 4R3216 | 4 | 320*160 | 1073*160 | 25 | 0.2-0.044 | 2-6 | 37 |
| 4R3220 | 4 | 320*200 | 1075*200 | 25 | 0.2-0.044 | 2-7 | 37 |
| 5R4119 | 5 | 410*190 | 1300*190 | 35 | 0.2-0.044 | 2-8.5 | 75 |
| 5R4121 | 5 | 410*210 | 1300*210 | 35 | 0.2-0.044 | 3-9 | 75 |
| 5R4125 | 5 | 410*250 | 1300*250 | 35 | 0.2-0.044 | 5-10 | 75 |
| 6R4528 | 6 | 450*280 | 1600*280 | 40 | 0.2-0.044 | 3-16 | 132 |
