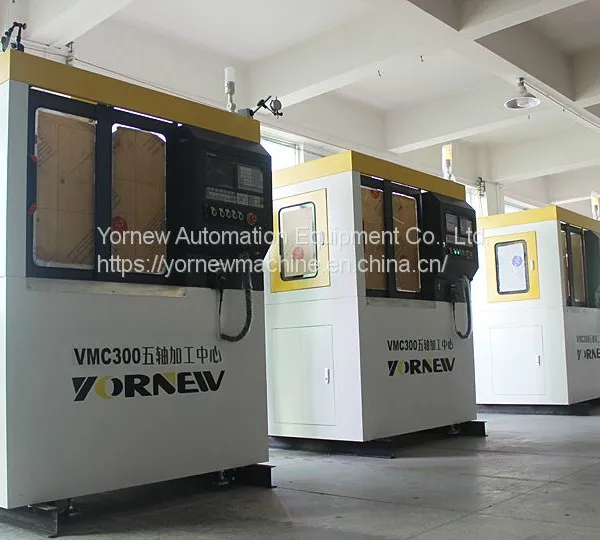

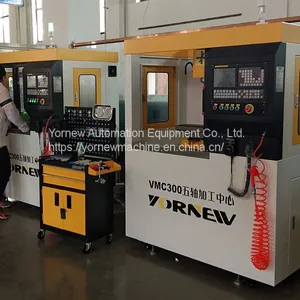

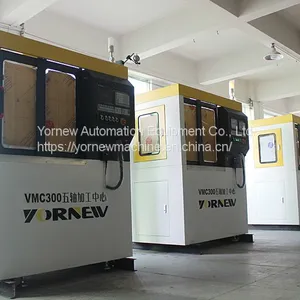

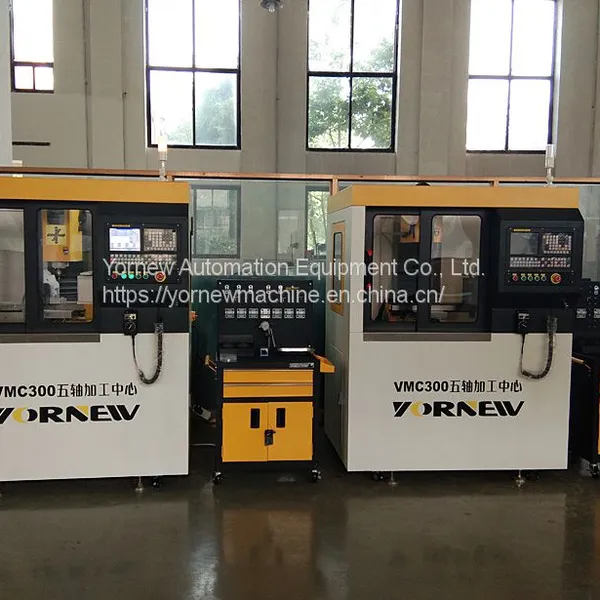

Help CenterVMC300 5 Axis Small CNC Machining Center
Related Products
-
5 Axis Mini CNC Mill, RTCP, 5 Axis, Machine Center, Education Cnc, Garage CncNegotiableMOQ: 1 Set -
VMC300 5 Axis Small CNC Machining CenterNegotiableMOQ: 1 Set
-
5 Axis Mini CNC Mill, RTCP, 5 Axis, Machine Center, Education Cnc, Garage CncNegotiableMOQ: 1 Set
-
5 Axis Mini CNC Mill, RTCP, 5 Axis, Machine Center, Education Cnc, Garage CncNegotiableMOQ: 1 Set
-
MX220 Desktop Milling Machine, Mini Cnc Machines, 4 Axis Machine, 5 Axis Machine, RTCP,NegotiableMOQ: 1 Set
Features
(1). High performance 5 axis CNC center machine controller.
(2). The standard spec includes electronic hand wheel.
(3). Selection of high -quality casting materials, more compact.

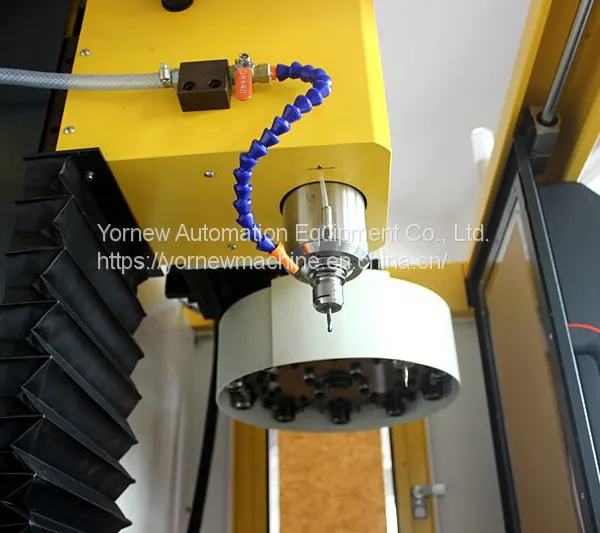

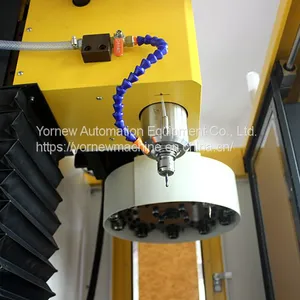

(4). 10 tools ATC.ISO20 spindle type, 24000rpm spindle speed.
(5). USB/U dis/RS232COM etc many kinds of communication mode, to help users achieve different data transmission and software upgrades easily.
(6). Frequency conversion water cooling motor, low noise, high speed and good durability.
(7). Perfect self diagnosis function, internal and external status real-time display, alarm immediately when abnormal.
(8). Macro variable, macro definition programming, realizing a variety of logical relations. Support macro program with parameters, convenient to the user programming.
(9). Can run ISO G code
(10). Graphic simulation function: show the graphics of the processing program and the tool path of the actual operation, tool path simulation processing without controlling the operation of the machine , to exam if the preparation process is correct.
(11). Multi interface selection: support multi language interface display, automatic fault alarm. Processing information display, processing time, the number.
(12). Parameter tabular: Input / output address number setting, only need to fill in the corresponding value in the configuration table.
(13).Applicable industry: technology development, advertising design, art, vocational technical college Education & Training CNC and DIY enthusiasts.
Technical parameters | |
X axis travel |
310mm |
Y axis travel |
180mm |
Z axis travel |
290mm |
4th axis Travel |
A axis:+30° to -120° |
5th axis Travel |
±360° |
Spindle taper |
ISO 20 |
Tool number |
10 |
Pneumatic supply |
0.6 MPa |
Tool DIA. range |
4-12mm |
Standard Size Collet |
1mm- 13mm |
Control system |
5 axis CNC center machine controller |
Instruction |
Run ISO G code |
MPG hand wheel |
5 axis |
Spindle Power |
2.2kw |
Spindle speed |
300-24000rpm |
Motor Type |
X/Y/Z/A/B axis are AC Servo |
Rapid movement in X /Y/Z Axis |
1-8000mm/min |
Feed rate in X/Y/Z Axis |
1-4000mm/min |
Power of X/Y/Z Axis |
AC Servo 750W |
Power of A/B Axis |
AC Servo 200W |
Positioning accuracy |
0.03mm |
Repeatability accuracy |
0.02mm |
Transmission |
ball screw |
Table size |
450*160mm |
Number of T-slots |
3 |
Width of T-slot |
12mm |
Table structure |
Full cast iron |
Power |
230VAC / 110VAC |
Weight(NW/GW) |
600/650kg |
Overall dimension |
1360*990*1800mm |
Packing size |
1400*1050*2000mm |
