CK210B Small CNC Lathe

Yornew Automation Equipment Co., Ltd.
CK210B Small CNC Lathe thumbnail-1
CK210B Small CNC Lathe thumbnail-2
CK210B Small CNC Lathe thumbnail-3
CK210B Small CNC Lathe thumbnail-4
CK210B Small CNC Lathe thumbnail-5
CK210B Small CNC Lathe photo-1

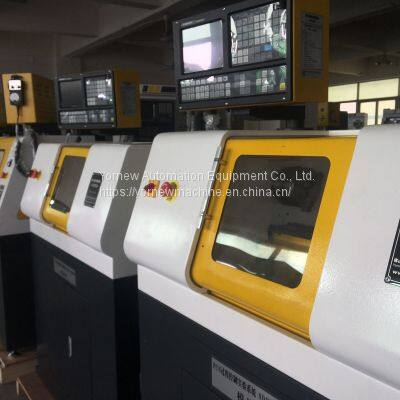

CK210B Small CNC Lathe photo-2

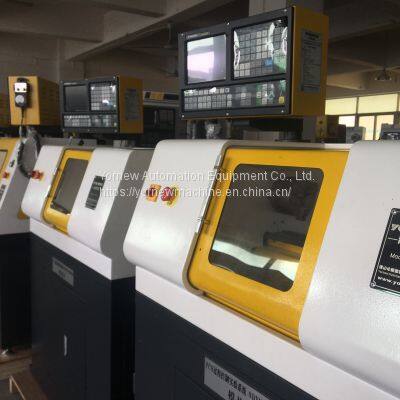

CK210B Small CNC Lathe photo-3

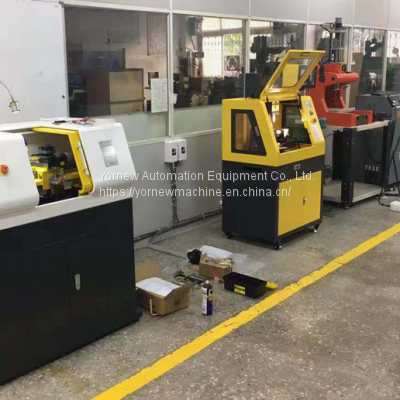

CK210B Small CNC Lathe photo-4

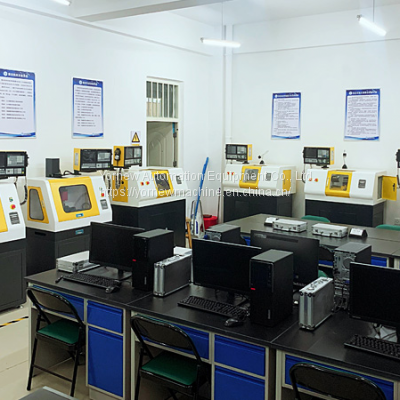

CK210B Small CNC Lathe photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Yornew
Place of Origin:
China
Model Number:
CK210B
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Yornew
Place of Origin China
Model Number CK210B

Features

(1).Automatic 4 positions tool post. (2).With sink and nozzles.

(3).High performance 2 axis CNC Yornew  lathe controller,

(4).Lathe CNC machine tools based entirely on the design and manufacture, reflects the structural integrity of facilitate future design ideas.

(5). The standard spec includes MPG hand wheel. (6). USB port for program input,

 (7). Control speed by G code.

(8). Selection of high -quality casting materials, more compact.

(9). A collection of ball screw, bearings and couplings with high precision positioning, while adding an oil lubrication system, to protect your machine precision, extended service life.

(10). 220V/110V single-phase AC power supply. (11). Safety electrical components of high quality. (12). Auto power off when door open.

(13). Applicable industry: technology development, advertising design, art, ocational technical college Education & Training CNC and DIY enthusiasts.



Technical parameters

Swing over bed

210mm

Chuck diameter

100mm

Spindle speed

100-1750r/min ( 3000RPM optional )

Spindle through-hole

25mm

Spindle mount

MT4

Spindle motor power

1100W DC brushless motor

X travel

80mm

Z travel

290mm

The max moving speed

4000mm/min

X/Z motor

400W Servo Motor

The max feeding speed

2000mm/min

Control system

Yornew 980 cnc controller

MPG hand wheel

4 axis

Tool position

4

4+2+2 （Optional）

Tool dimension

10*10mm

Tailstock taper

MT2

Travel of tailstock

50mm

Positioning accuracy:

0.03mm

Repeatability accuracy

0.02mm

Power

230V/120V

Weight(NW/GW)

280/320KG

Overall dimension

1000*580*1180mm

Packing size

1100*800*1770mm




Product Tags: hobby , diy , training , education , lab , prototype , makerspace , hackerspace , prototyping
