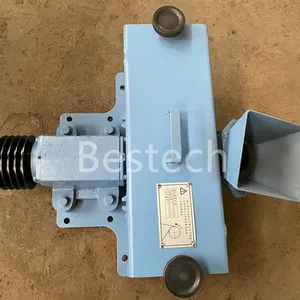

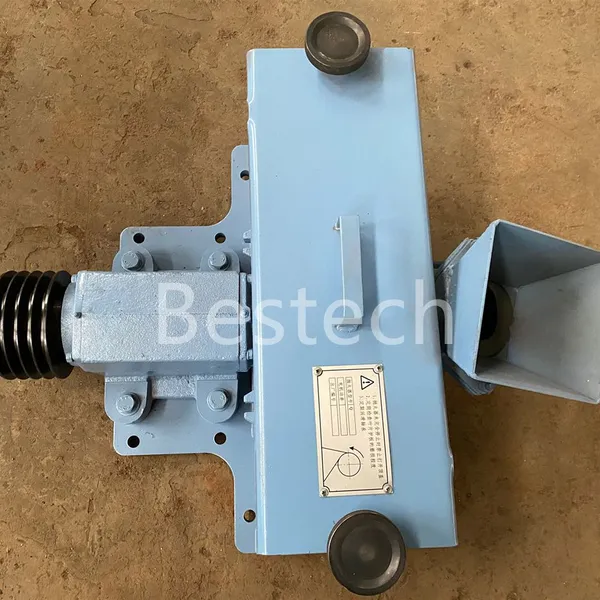

Help CenterSINTO Standard Shot Blasting Turbine Impeller
Related Products
-
Tilting Barrel Shot Blasting Machine China FactoryUS$ 2000 - 20000MOQ: 1 Set -
Automatic Tilting Drum Shot Blasting Machine for Cast Iron Surface CleaningUS$ 2000 - 20000MOQ: 1 Set
-
Helmets Welded Structural Parts Tilt Drum Shot Blasting MachineUS$ 2000 - 20000MOQ: 1 Set
-
Inclined Drum Type Shot Blasting Machine/Batch Metal ProcessingUS$ 2000 - 20000MOQ: 1 Set
-
Continuous Tilting Drum Shot Blasting Machine for Thin WorkpieceUS$ 2000 - 20000MOQ: 1 Set

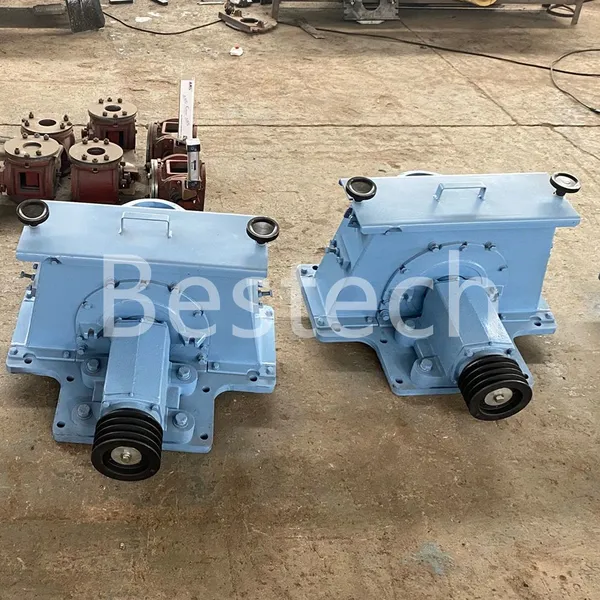

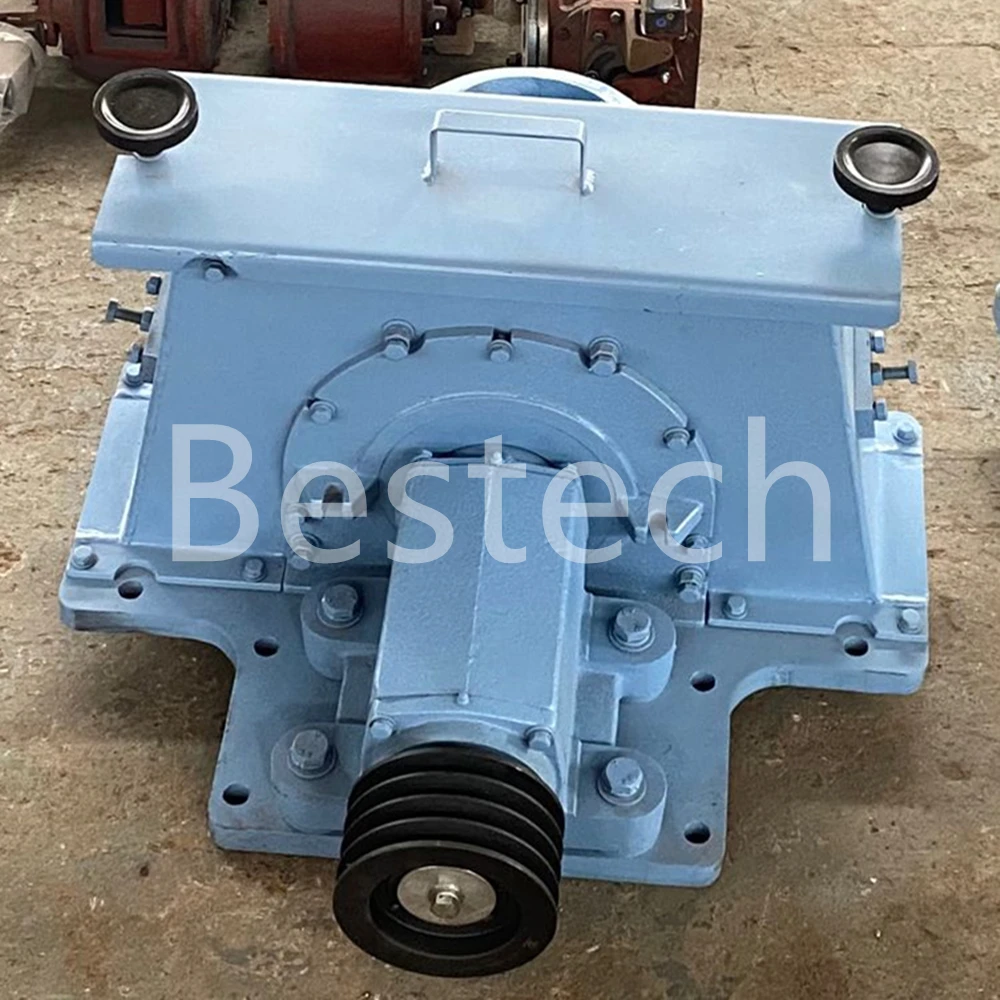

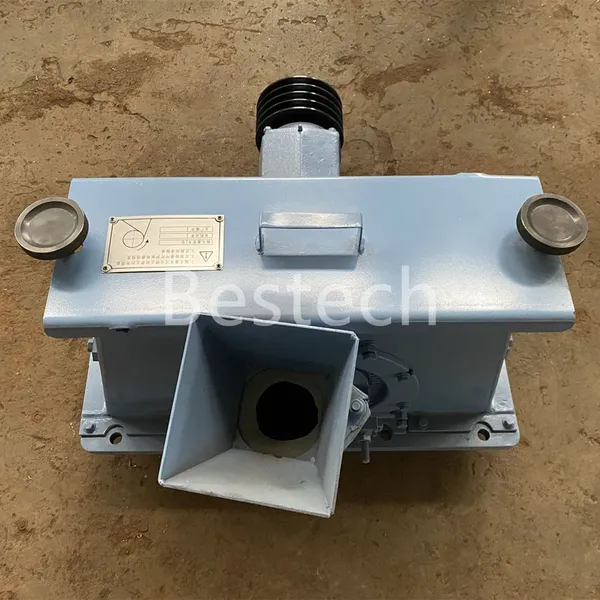

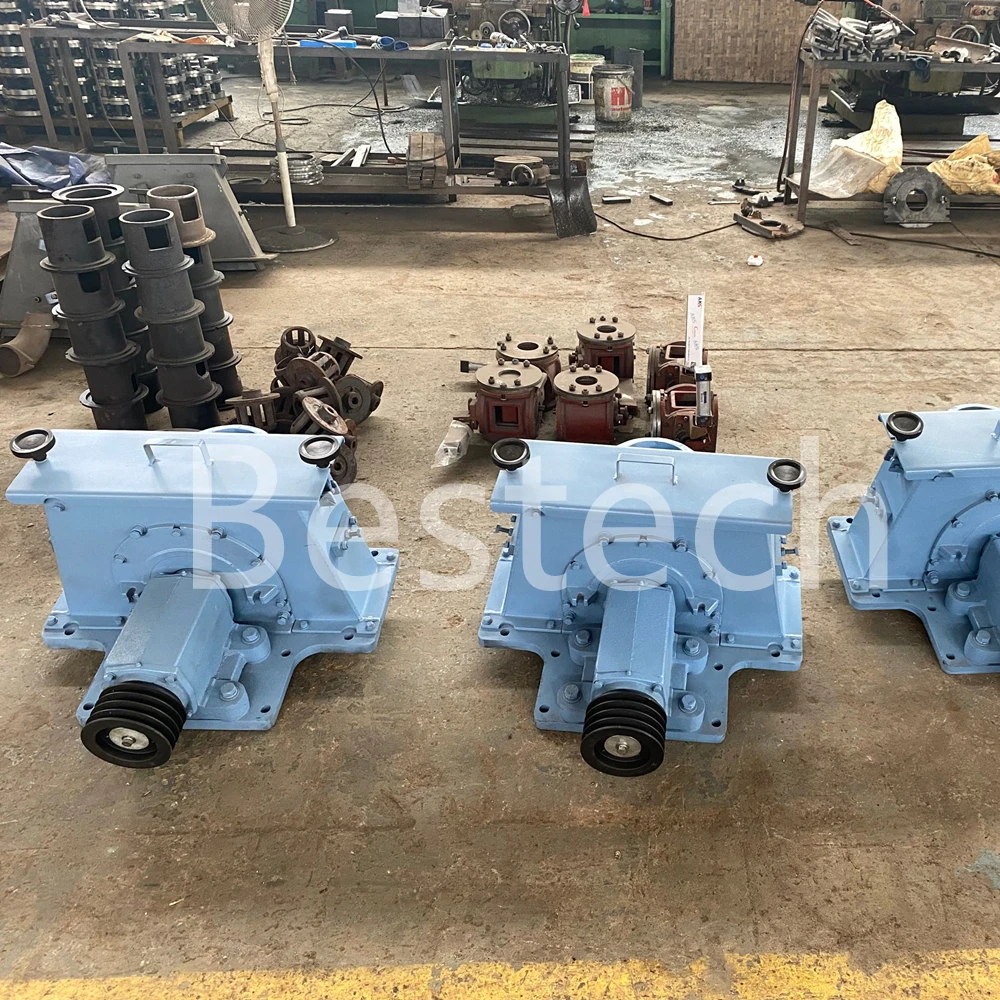

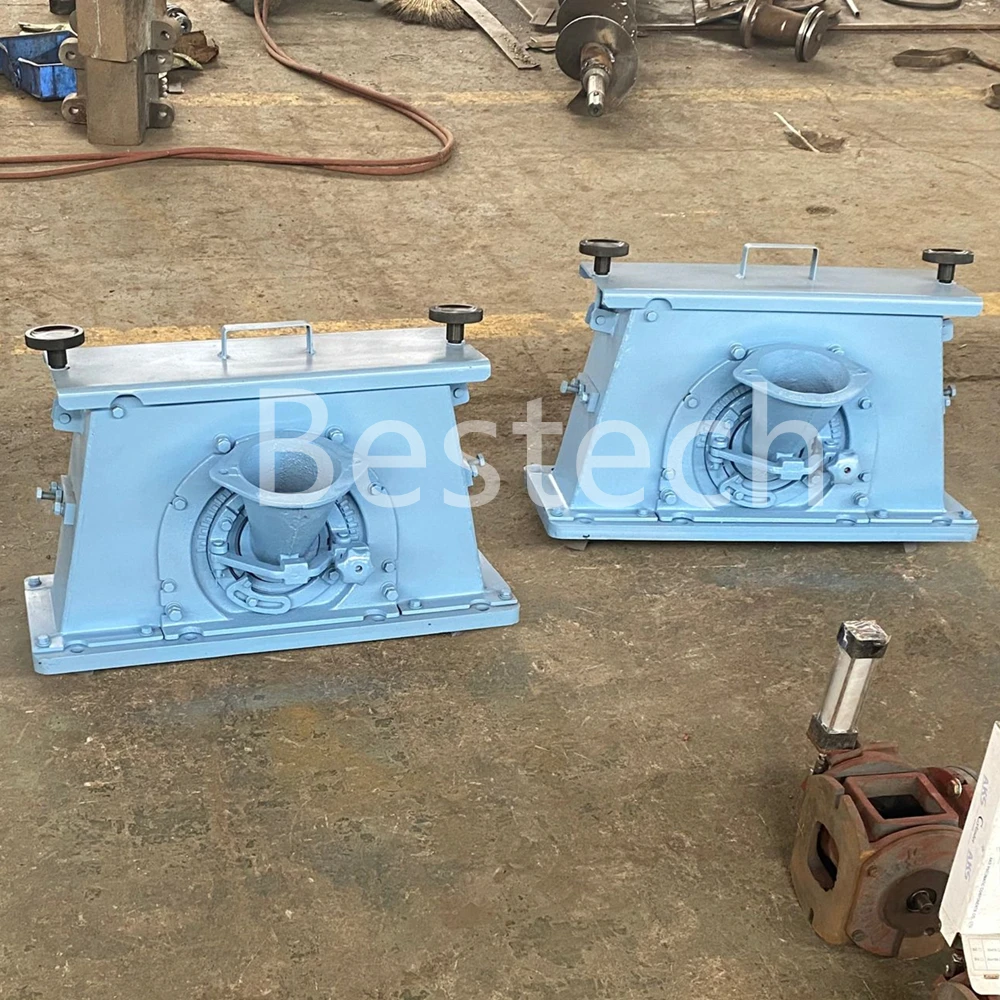

Belt type blast wheel with high blade tip velocity for shot blasting machines. Bestech provides state of the art machines for various industries around the world. One of the major parts of shot blasting machines is the blast wheel. Whatever your finishing challenges, Sinto Surface Treatment has the expertise to provide solutions that will exceed your expectations!
FEATURES:
Reduced Maintenance Cost
High Chromium alloy blades for long life
Robust state-of-the-art wheel design with high volume throw capability
Easy blade change out
Double runner head for energy efficiency and uniform shot flow
Unique impeller design for long life and increased feed

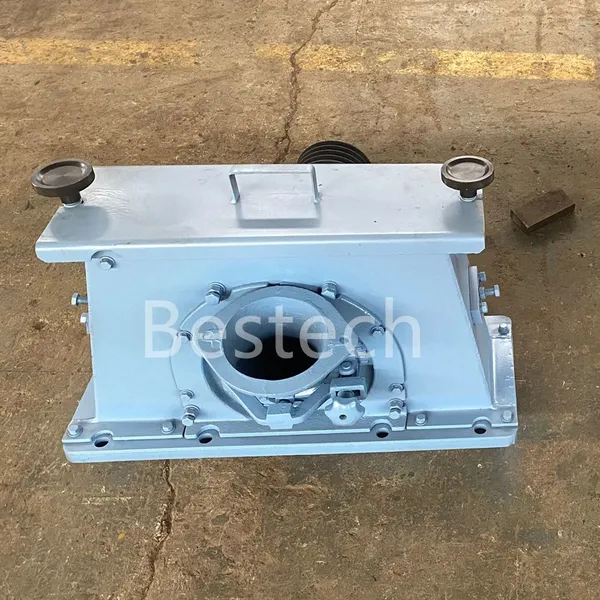

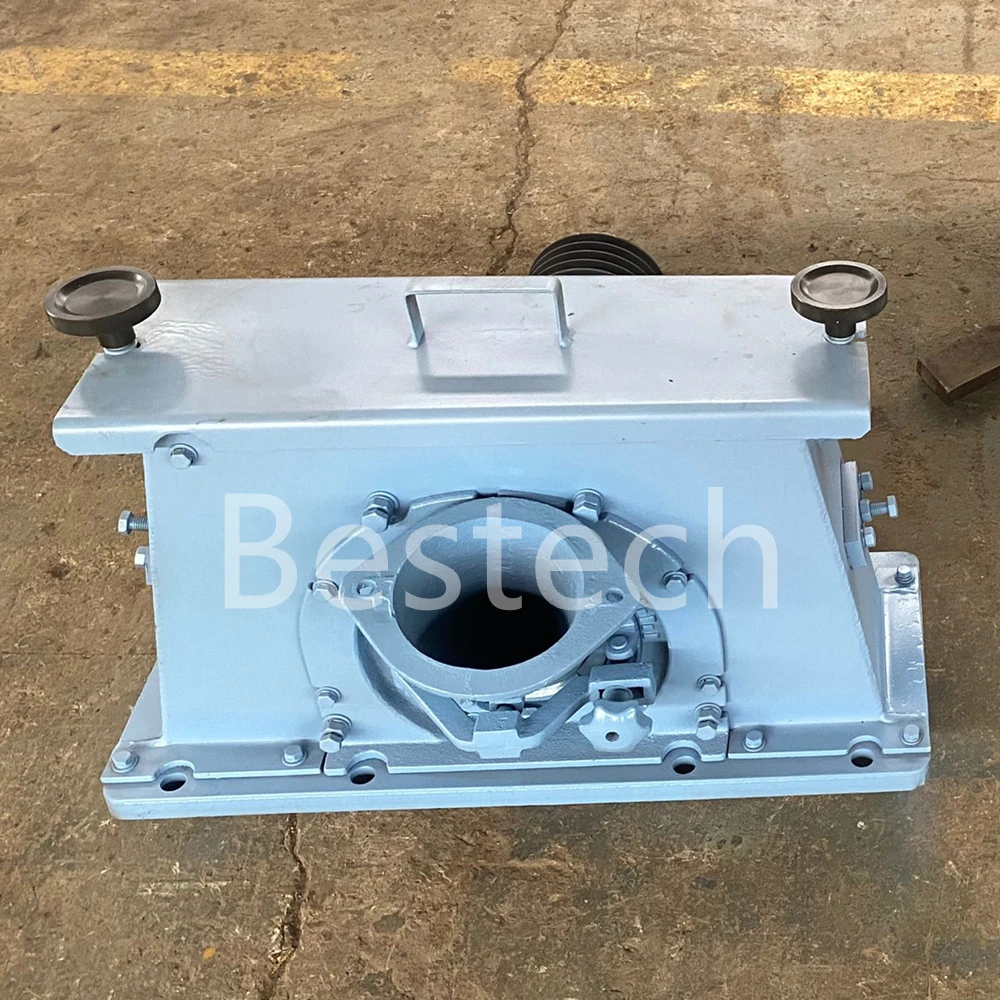

Large funnel style feed spout for maximum shot feed

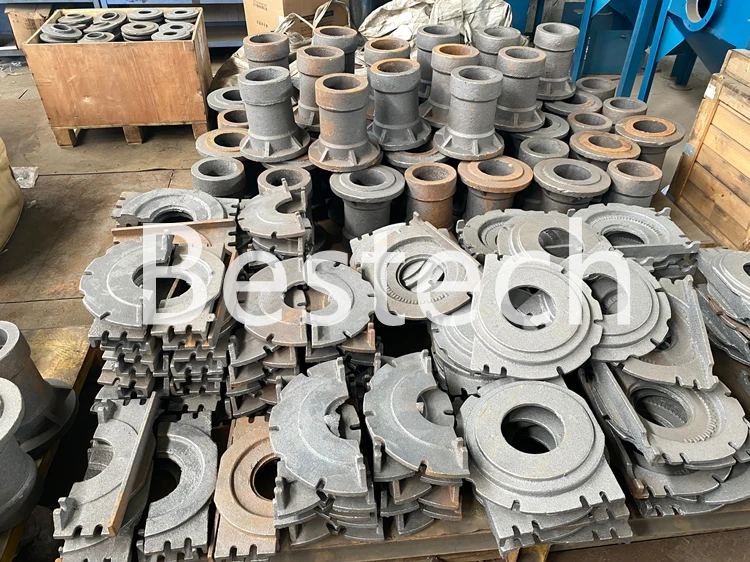

Precision cast parts
Wheel housing completely lined with replaceable long-life alloy liners
BELT WHEEL FEATURES:
Higher RPM, smaller diameter
Typically lower flow rates
High particle velocity- smaller particle sizes can be used
No unit bearing, less maintenance, added safety
Specs
Equipment Features |
General Use Size |
Blade Diameter |
14.17" |
Blade Length |
4.43" |
Blade Width |
2.52" |
Blade Quantity |
8 |
Driving Method |
Belt |
Motor Output |
10 HP ~ 60 HP |
Standard Project Distance |
23.62" ~ 98.43" |
Shot Diameter |
0.012" ~ 0.067" |
Shot Material |
Steel |
Shot Project Volume |
70 - 460 kg/min |
Shot Project Speed |
61 ~ 80 m/s |
Processing Pattern |
2.76" ~ 3.15" x 26.78" ~ 49.21" |
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 20 years, competitive with good quantity.
7.Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
8.As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
Q:How many days will be used to produce this shot blasting machine spare parts?
A:Normally within 7 workdays or according to customer's requirement
Q:Can you provide installation and commissioning overseas?
A:We can supply oversea service if needed
Q:Are you manufacture or trading company?
A:We are manufacture,welcome to visit our factory
