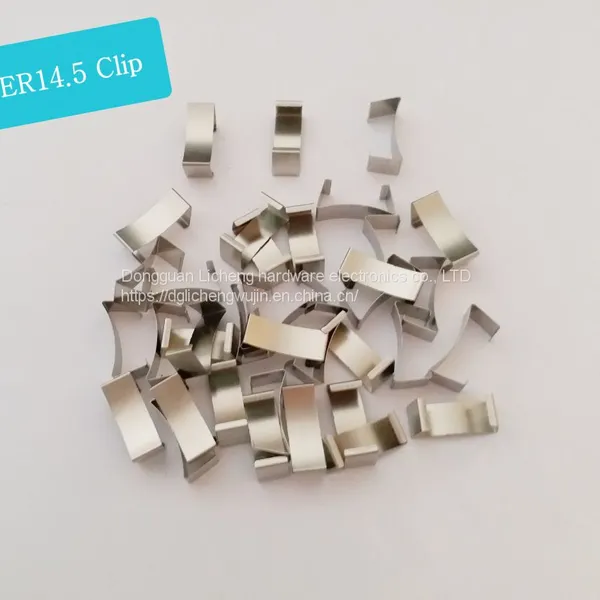

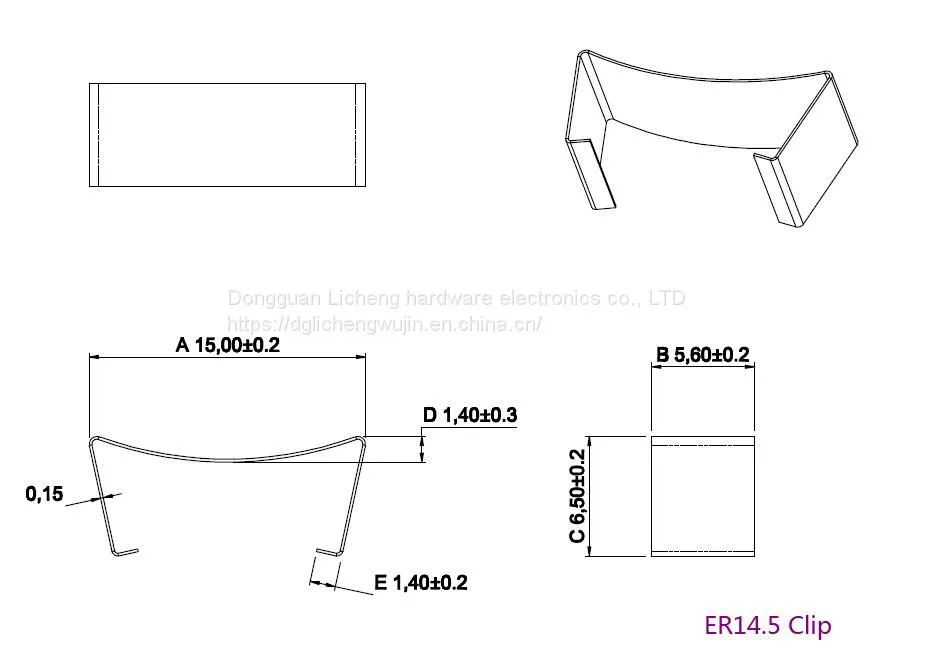

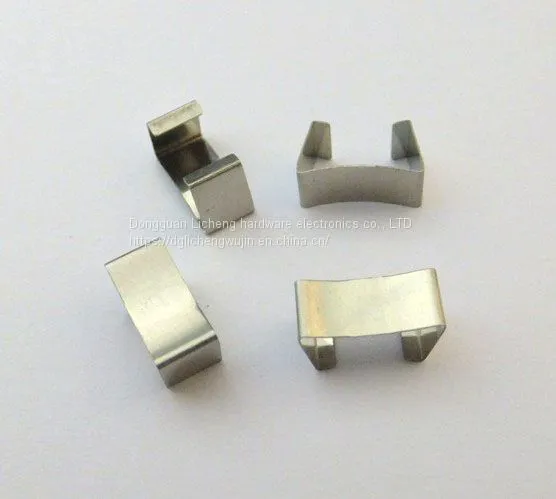

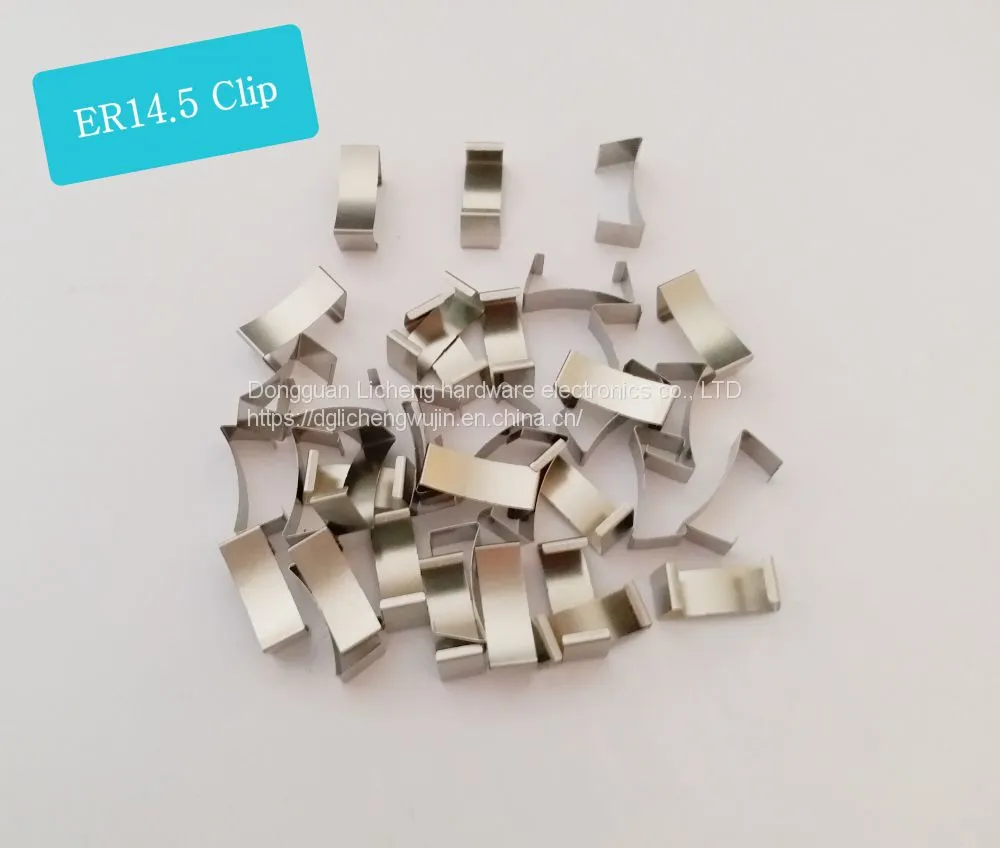

ER9.5 clip,ER11.5,ER13.6,ER14.5 high frequency transformer clamps clip,ER core clamp,SUS301 stainless steel.

1000PCS/BAG

 ER11.5 ER9.5 ER13.6

 ER9.5

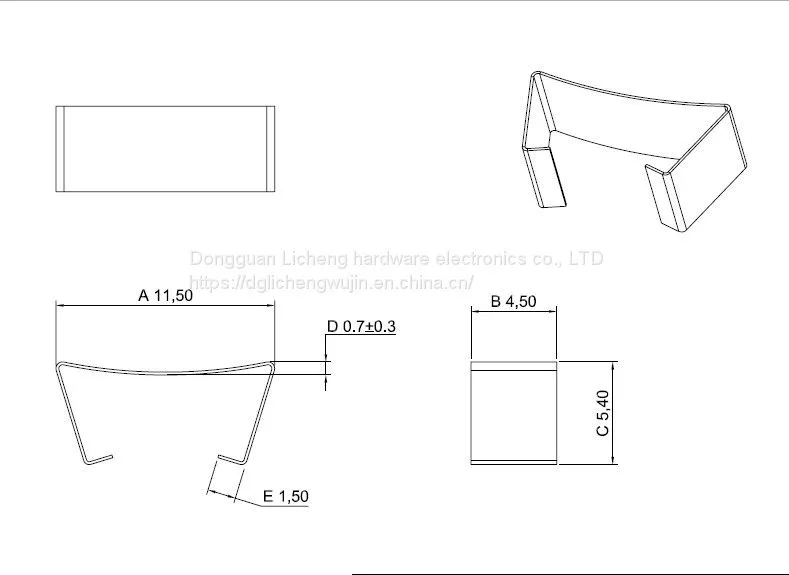

ER11.5

1. Definition of transformer steel clamp terms:

After bobbin and magnetic core are assembled in high-frequency transformer, a clamp (steel clamp) is needed to clamp the peripheral package to play a fixed role, so as to achieve a stable inductance when the transformer is working. This type of metal clamp is called transformer iron clamp (steel clamp, clamp).

2. Common materials of transformer steel clip:

A) Stainless steel (SUS301) b) sk7 C) phosphor copper (C5191)

3. Common classification of transformer steel clips:

RM series (RM4, 5, 6, 7, 8, 10, 12, RM14)

Er series (er9.5, er11.5, 13.6, er14.5)

EF series (ef20, ef12.6, 16, 19, 25, ef30)

EE series (ee5.0, ee5-1, ee5-2, ee5-3, ee5-4)

EFD series (efd10, efd12, efd15, efd15-1, efd17, efd20, etd20-1, 25, efd30)

ETD series (etd29, 34, 39, 44, 49, 54, etd59)

Fk-etd series (fk-etd34, fk-etd39, fk-etd44, fk-etd54)

EP series (ep6 cover, EP7 buckle, EP7, ep7-1, EP13, ep13-1)

PQ series (pq2020, pq4040, pq5050, pq3415, etc.)

4. Production process classification:

Class A: stamping --- cleaning --- packing and shipping（ This kind of material is suitable for the production of stainless steel SUS301

Class B: stamping forming - heat treatment - Surface tin plating - packaging and shipping（ This kind of material is suitable for sk7 production)

Class C: stamping forming --- surface tin plating --- packing and shipping (this class is applicable to the production of phosphor copper C5191 material)

Dongguan Licheng hardware electronics co., LTD., founded in 2010, our factory is located on approximately the dongjiang river, with Chinese electronic town --  shijie town, dongguan.

Our factory is specialized in production of metal stamping parts, high and low frequency transformer steel CLIP, spring CLIP (such as RM, ETD, EFD, EF, ER, EP, PQ, etc) and all kinds of electrical and electronic hardware parts, Brass terminal, lamp clip；copper needle, KAPTON film, etc. Its products are widely used in modern communication equipments, digital technology and household electrical appliances, etc.

To cater to today's era of science and technology, our factory has introduced advanced production equipment, testing equipment, has experienced r &d and technical personnel, and constantly improve the internal management level, scale, standardization, efficiency, innovation of management mode, to ensure efficient production, quality。
