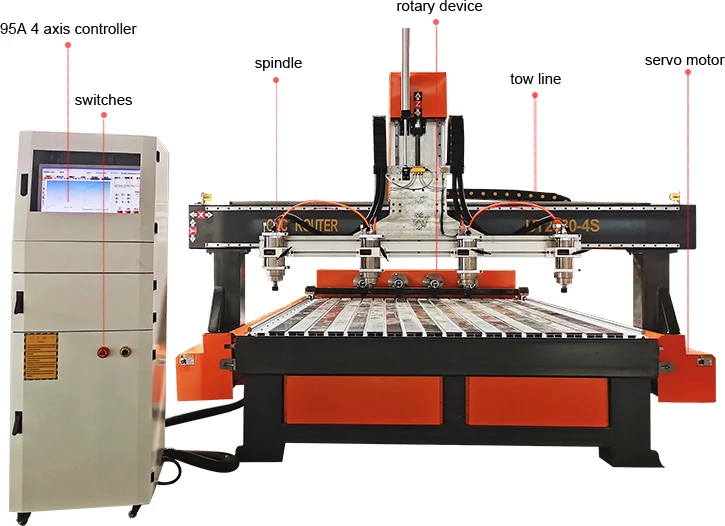

3 Axis 2030 CNC Router Machine For Woodworking Advertising Cutting Signs Carving Machine With 4 Heads

2000 * 3000mm the standard working size, equipped with 300mm rotary device, is professionally used for processing cylindrical products, such as wooden table legs,railing etc. We have Italian HSD brand spindle for option.

1. UnionTech 4 axis CNC router uses HIWIN25 linear square rails, XYZ axis adopts import ball

   screw, move smoothly, high accuracy carving. high-speed low noise.

2. UnionTech 4 axis  CNC router has widened machine head part assembly additional bob-weight.

   and ancillary shorting, make the whole machine move more smoothly.

3. UnionTech 4 axis CNC router with computer connection directly, support break, continue

   carving after cut off electric.

4. UnionTech 4 axis CNC router has multi-function, it can make the machine work on flat or cylinders.

	Spindle:    World best brand Italy HSD 3kw air cooling     spindle. ER25 collet.     Good qualiy and high precision. 4.5kw, 6kw,         7kw for options.
Motor:    Leadshine pure servo motor and driver,           powerful and high quality, with alarm function.    Chinese easy servo motor or YASKAWA servo     motor for options.

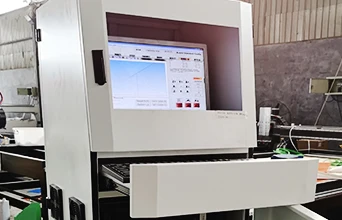

	Controller:  Weihong 95A four-axis control system. computer-   controlled, fast reading speed. Intelligent   processing memory, supports power fail to   safeguard and breakpoint function.

1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,craft sash,

composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble,plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

4. relief sculpture, 3D engraving & Cylinder object engraving.

Jinan UnionTech Machinery Co., Ltd. is located in Jinan City, Shandong Province. We have always been devoted to the research and manufacture of CNC machines. We have R & D Production Department, Quality Control Department, and Sales & Service Department. Our products are widely used in Woodworking, Advertising, Model, Electricity, CAD/CAM Industrial Models, Clothing, Package Printing, Marking, Laser Sealing and so on. We can offer you high quality products with the competitive price. Our products got the CE certificate. Our main products are robot arm CNC Routers, 5 axis CNC router, Laser Engraving and Cutting Machines, Fiber Laser Cutting Machines, Plasma Metal Cutting machines and so on. With advanced technology, high quality, reasonable price and perfect post-sales service, our products have attained favorable comments among other our clients and our business has developed rapidly. Our products are exported worldwide, including Southeast, the Middle East, Africa, Europe and the U.S.A. We are looking forward to establishing relationships with you in the near future.

Q1. Delivery time of CNC router machine?
UnionTech standard size and configuration CNC router machine delivery time is 7 days, ATC series machine delivery time is 15 days, 4 axis and 5 axis series machine delivery time is 25 days.
 Q2. Can you send machine to my home?
Yes, we have cooperation long time shipping agent, famous team in China, they can offer FCA,FOB, CIF, DDU, DDP price, usual suggest receiver address is Business district, usual less big car drive in the Civil area.
 Q3. This is the first time to use cnc router machine, is it easy to operate?
Yes, it is easy for a newer, if you can draw with software, the machine operation is no problem, because we will support:
1).English guide video and instruction book together with the cnc router.
2).Free training course in our factory. Engineers are available to serve overseas.



Product process:







Packing and delivery:







more other machines:





   1325 CNC ROUTER          ATC cnc router              4axis cnc router             EPS cnc router
