China Factory T Shirt Oval Screen Printing Machine t- Shirts Silk Screen Printer Printing Equipment

China Factory T Shirt Oval Screen Printing Machine t- Shirts Silk Screen Printer Printing Equipment photo-1

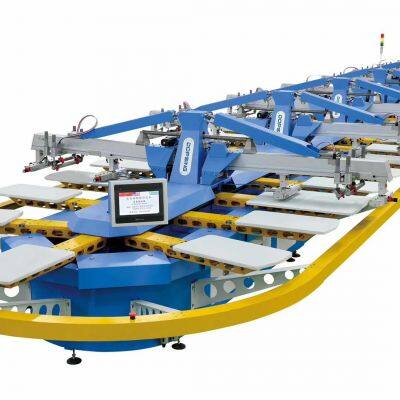

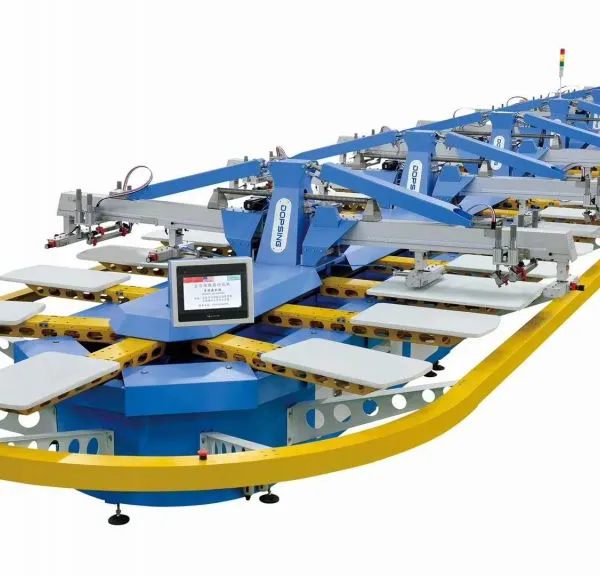

China Factory T Shirt Oval Screen Printing Machine t- Shirts Silk Screen Printer Printing Equipment photo-2

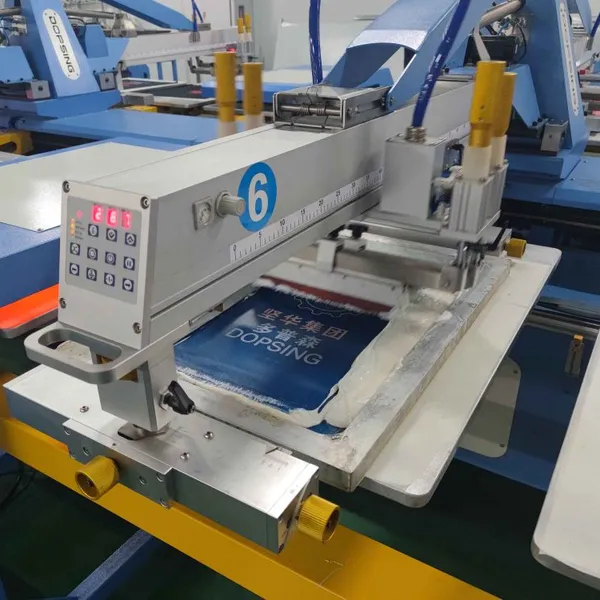

China Factory T Shirt Oval Screen Printing Machine t- Shirts Silk Screen Printer Printing Equipment photo-3

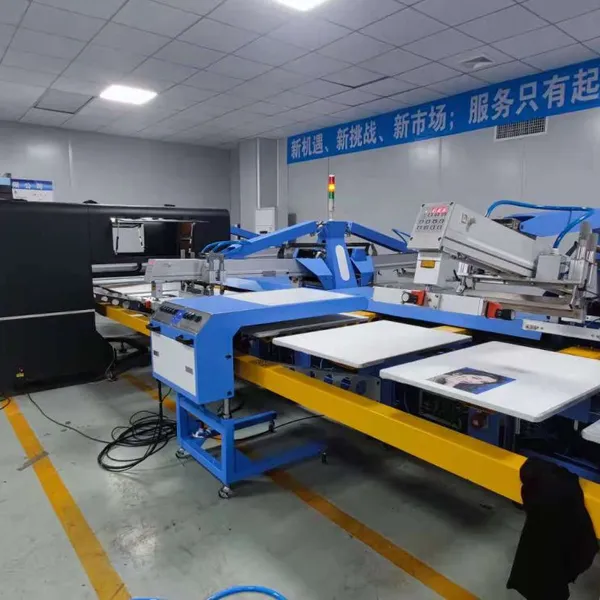

China Factory T Shirt Oval Screen Printing Machine t- Shirts Silk Screen Printer Printing Equipment photo-4

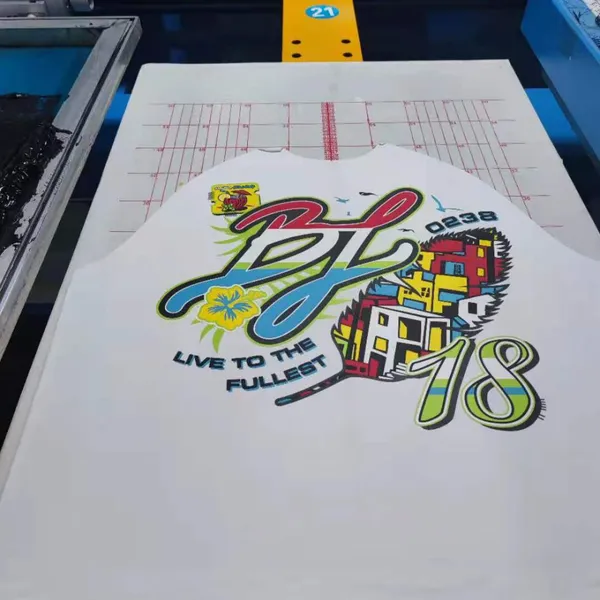

China Factory T Shirt Oval Screen Printing Machine t- Shirts Silk Screen Printer Printing Equipment photo-5
US$ 35000 - 60000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
KINWAH
Place of Origin:
China
Model Number:
DT-616
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
15 days
Brand Name KINWAH
Place of Origin China
Model Number DT-616
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 years
Weight 2656kgs
Voltage AC380V
Usage Cloths Printer
Condition New
Automatic Grade Automatic
Dimensions(L*W*H) 1020cm x 344cm x 150cm
Gross Power 3.9-12.6KW
Color & Page Multicolor
Product Description

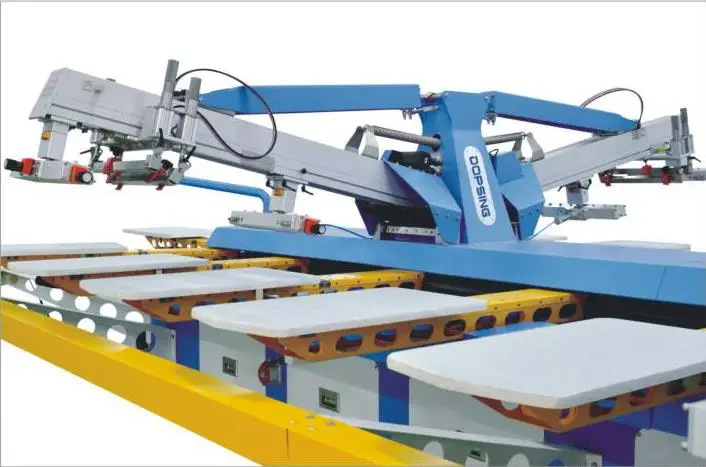

High performance t shirts custom printing machine oval screen printing machine automatic



Model NO
DPS67-01
Printing Area
600x700mm
Voltage
AC380V
Weight
Customized
Max. Power
14Kw/380V/3P/50-60HZ
Machine Size
Customized
Printing Side
single side
Frequency
50/60Hz
Driven Type
Electric Servo Moto
Working capacity
800-900 pcs/h
Air pressure
0.6 - 0.8 Mpa
Machine width:
344cm
 Frame size
730x1030mm
Detailed Images

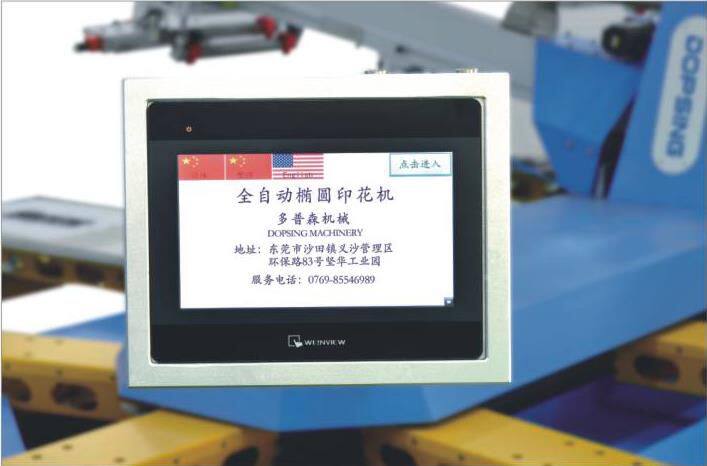

Multi - function operation panel




Intelligent Touch



Precision Pursuit Focus On Stability

Difference comparative analysis

Specifications

Color
Printing head QTY
Plate QTY
Machine weight
Consumption
Machine length
6 colors
6
24 PCS
2656kgs
3.9KW
1020cm
8 colors
8
30 PCS
3323kgs
4.7KW
1243cm
10 colors
10
36 PCS
3990kgs
5.5KW
1466cm
12 colors
12
42 PCS
4657kgs
6.3KW
1689cm
14 colors
14
48 PCS
5324kgs
8.6KW
1912cm
16 colors
16
54 PCS
5991kgs
9.4KW
2135cm
18 colors
18
60 PCS
6658kgs
10.2KW
2358cm
20 colors
20
66 PCS
7325kgs
11KW
2581cm
22 colors
22
72 PCS
7992kgs
11.8KW
2804cm
24 colors
24
78 PCS
8659kgs
12.6KW
3027cm
Ten Advantages

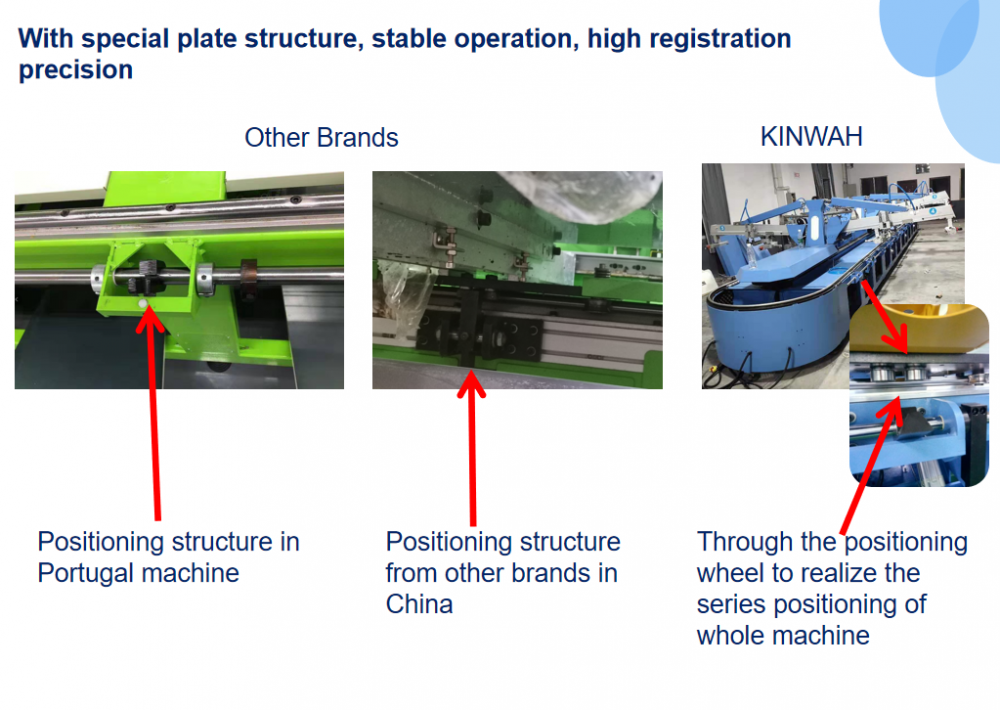

1) With special plate structure, stable operation, high registration precision;

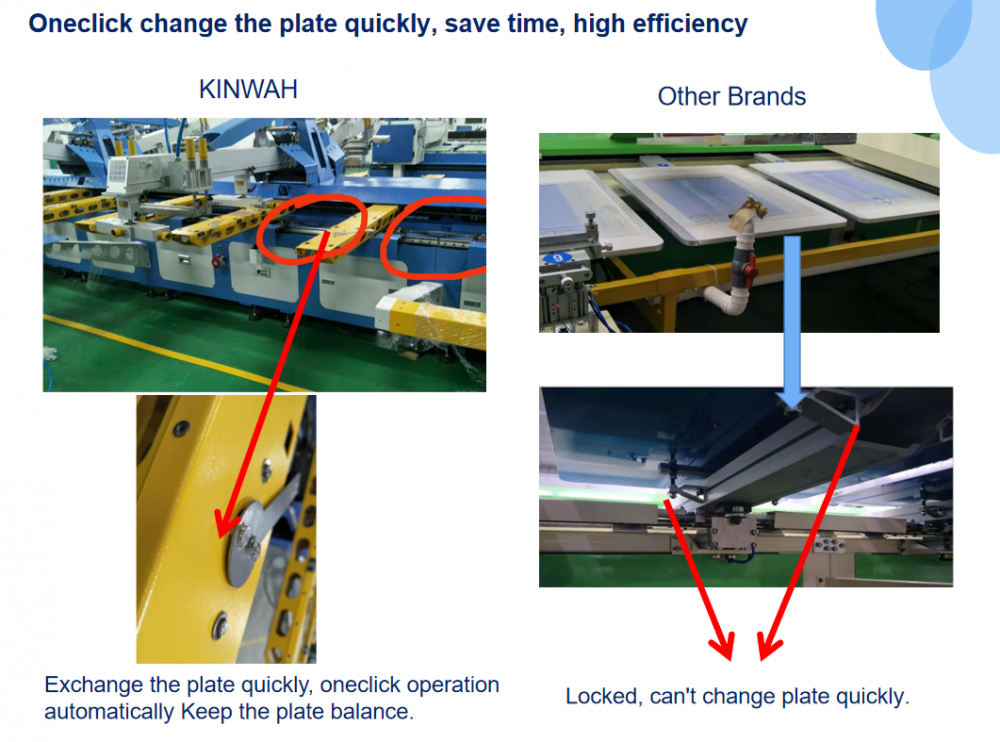

2) Exchange plate quickly, only need few second, one-click operation automatically keep the plate balance.Various printing
application for cut-pieces,garments etc;

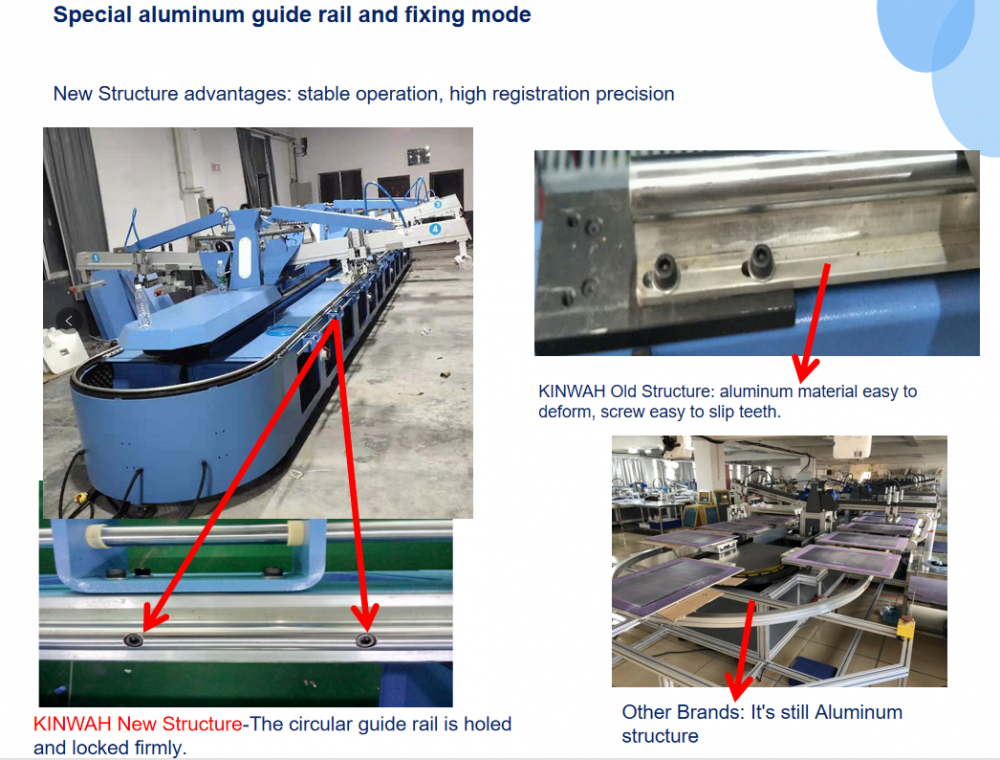

3) The beam made form sheet metal, more stable and solid than traditional aluminum structure;

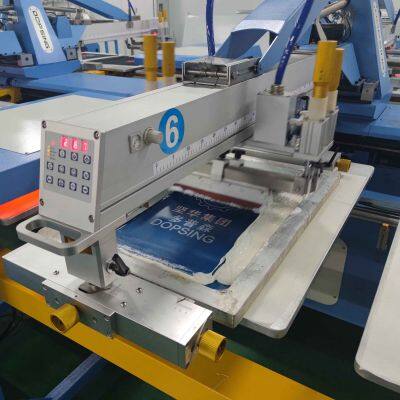

4) There are independent print and reset Multi-function operation panel and independent print/flood speed controls on each
printing head to make setup and operation fast and easy;
5) Clean the screen frame by lifting the printing head, do not need to take the take the frame off;

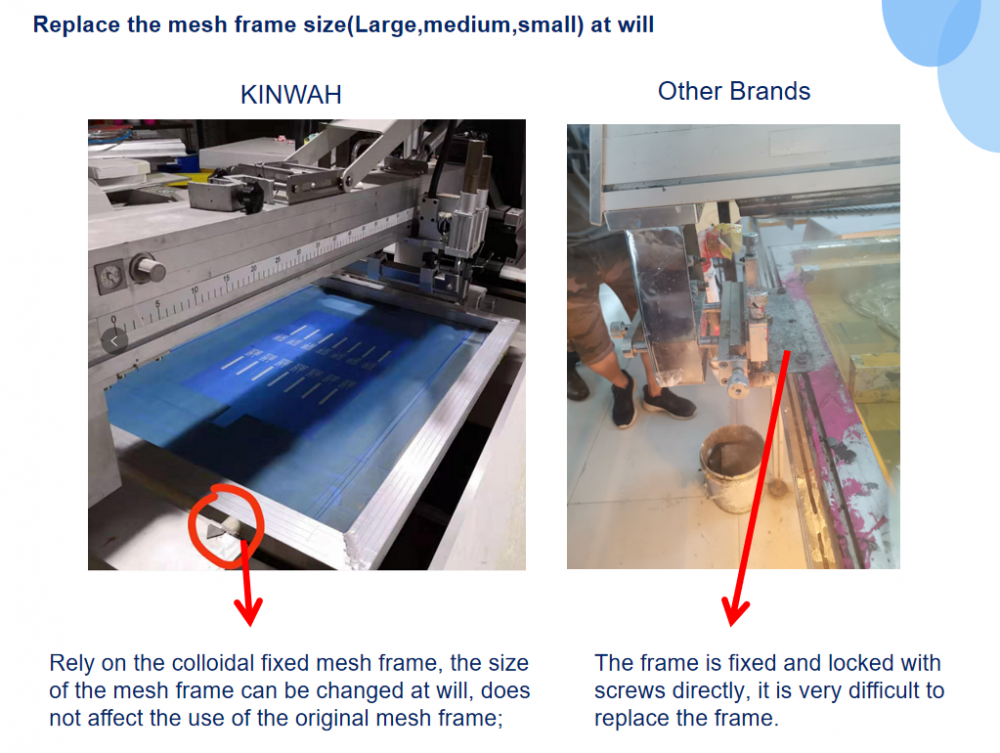

6) Lower the production cost, large,medium and small mesh frame arbitrary interchange, without any waste of the existing screen
frame;
7) Servo system, high precision color registration.Tolerance±0.01mm. High efficiency, lower power consumption, energy saving and
environment protection;
8) Colorized intelligent touching screen, HMI in Chinese and English, with intuitive and convenient operation;
9) High quality for all parts, running FAI&CPK in processing, ensure the dimension is qualified, the machine structure performance
is good;
10) With special welding process and accurate machining work, machine working life more than 15 years.
