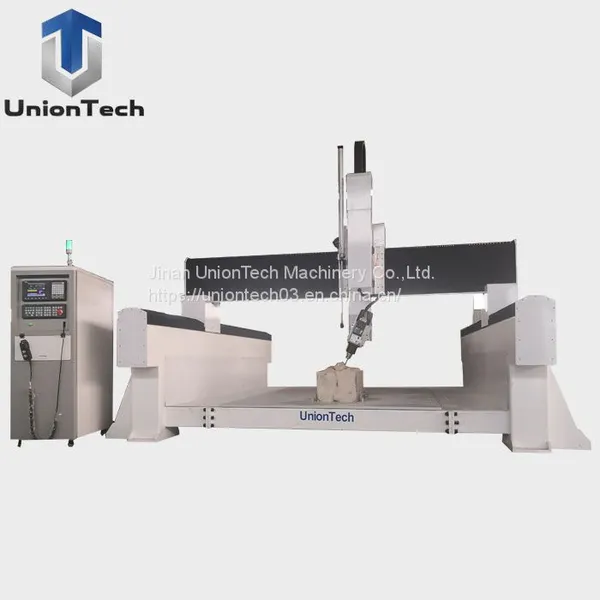

China Manufacturer Wood Foam Styrofoam 3d Model EPS Foam Moulding Cutting Milling Machine CNC Router
ODM Service:
As a cnc machinery manufacturer in China for many years, we can design and produce the machinery to your requirment.
Quality Guarantee:
We offer 12 months warranty for whole machine and half year warranty for spindle.
Trade Assurance:
You can make the order by Trade Assurance to get 100% Product quality protection 100% On-time shipment protection 100% Payment protection.
Description |
Parameters |
X,Y,Z Working Area |
2000*3000*1000mm |
Table Surface |
Vacuum with T-slot Table |
Frame |
Welded Structure |
X, Y Structure |
30# PMI linear guide, helical rack |
Z Structure |
Hiwin Rail Linear guide and TBI Ball Screw |
Max. Power Consumption |
(Without Spindle)2.5kw~3kw |
Spindle Power |
9kw Italy HSD air cooling spindle |
Spindle Speed |
0-18000RPM |
Drive Motors |
Japanese YASKAWA servo motor |
Reducer |
Japanese Shimpo reducer |
Working Voltage |
AC380V/50-60Hz,3PH (Option: 220V/1phase) |
Command Language |
G Code |
Operating System |
Syntec control system |
Inverter |
11kw DELTA inverter |
Computer Interface |
USB |
X,Y,Z repositioning Accuracy |
±0.02mm |
X,Y Resolution |
±0.01mm |
Software Compatibility |
Powermill, including the post-processing |
Lubrication system |
Auto |
Tool sensor |
Auto |
Dust collector |
3kw double packages dust collector |
Optional parts |
9kw HQD ATC spindle, Rotary device |
| Feature of chinese atc cnc router: |
Effective working area: 2000*3000*1000mm
The spindle can rotate ±90 degree
Heavy duty thicker structure
Carousel type automatic tool changer with 8 tool storage
Taiwan Syntec 6MB control system
Japanese YASKAWA 1000w servo motor and 850w servo driver
Helical rack & Gear
Taiwan TBI ball screw
Imported 30mm square linear guide way for X,Y,Z axis, Table moving for Y axis with 32mm ball screw
Automatic Tool sensor calibration
Automatic oil lubrication system
| Machine details: |
Taiwan DELTA inverter:
| Applictions: |
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble,plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4. relief sculpture, 3D engraving & Cylinder object engraving.
| Certificate showing: |
| Customer photo: |
