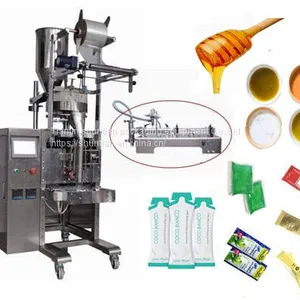

China Small Tomato Sauce Packet Bag Pouch Packing Machine Manufacturer
- Tianjin
- T/T L/C
- 15 days
You May Like
Product Details
| Brand Name | SHUNTIAN | Place of Origin | China | |
| Model Number | DXDY-500H/800H | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas | Weight | 400kg | |
| Dimension(L*W*H) | 1100mm*900mm*2000mm | Power | 220/380V | |
| Application | Beverage, Chemical, Commodity, Food, Medical | Condition | New | |
| Automatic Grade | Automatic | Driven Type | Pneumatic | |
| Packaging Material | Plastic, Wood | Packaging Type | Bags, Cartons, Case, Pouch |
Product Description
Contact us: enquiry@chinashrinkmachine.com 0086 133 0206 3626
Application
The machine is practical innovation model, PLC + Pneumatic drive, simple type mechanism, easy operation. Optional variety filing type: volume cups, auger rod, piston pump, vibration plate, chain buckets, electric scale etc. Used in food, chemical, medicine packing for granule, powder, liquid, sauce etc.
Use:

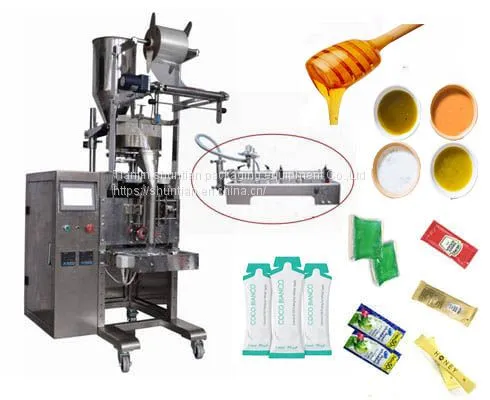

The DXDY-500H/800H automatic liquid packaging machine is suitable for the packaging of liquid and liquid materials in the food, chemical, and pharmaceutical industries, such as laundry detergent, fruit juice, syrup, fruit wine, etc.
Features:
1.The body of the DXDY-500H/800H automatic liquid packaging machine is made of stainless steel and is corrosion-resistant. Meet the requirements of QS/GMP regulations.
2.Computer control can choose single-chip microcomputer controller and key operation. A PLC touch screen is also optional, and the screen displays faults at a glance, which is convenient for maintenance.
3.The machine's hot air control system adopts heat-sealed four-way intelligent temperature control, and the temperature control is accurate and visible.
4.The photoelectric control system adopts high-quality photoelectric head, which has strong anti-light and electrical interference ability, effectively eliminates false color marks, and automatically completes bag positioning and length fixation.
5.Special mechanical pumps, pneumatic pumps and other feeding devices can be customized according to the user's material status.
Packaging materials: paper/polyethylene, cellophane/polyethylene, polypropylene/polyethylene, polyester/aluminum foil/polyethylene, polyester/aluminized/polyethylene, nylon/polyethylene, polyester/polyethylene and other composite materials.
Related technical parameters:
model:
DXDY-500H
DXDY-800H
Sealing form:
Back seal/Three side seal
Back seal/Three side seal
Packing speed 20-50 packs/min 20-50 packs/min
Maximum bag size 150mm*200mm 200mm*280mm
Measuring range 100-500ml 100-800ml
Power supply 220V 220V
Weight 350kg 400kg
Product specifications 760mm*900mm*1850mm 1100mm*900mm*2000mm
