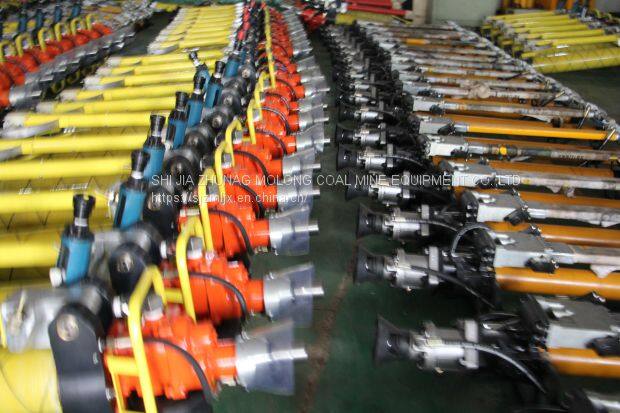

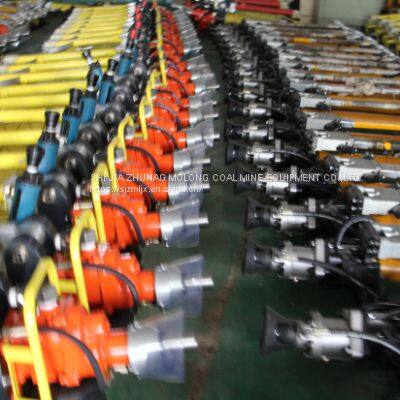

MQT Series Pneumatic Anchor Drilling Rig for Mining Use Drill Machine
US$ 800 - 950
MOQ: 1 Set
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2000
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin port
Delivery Detail:
10 days
Related Products
-
Pneumatic Jumnolter 130 Drilling RigUS$ 900 - 1200MOQ: 1 Piece -
Pneumatic Jumnolter 130 Drilling RigUS$ 800 - 1100MOQ: 1 Piece
-
Pneumatic Jumnolter 130 Drilling Rig MQT-130/3.5US$ 800 - 1100MOQ: 1 Piece
-
Pneumatic 130 Jumbolter Drilling Rig MQTUS$ 800 - 1100MOQ: 1 Piece
-
MQT 130 Coal Mine Drill Rig Rock Bolt DrillUS$ 300 - 1200MOQ: 5 Sets
Main Parameter of MQT Series Coal Mining Pneumatic Hand-heldAnchor Drilling Rig
Model |
MQT-120/2.3-A |
MQT-120/2.3-B |
MQT-120/2.3-C |
||
Working Pressure |
MPa |
0.4~0.63 |
|||
Rated Pressure |
MPa |
0.5 |
|||
Rated Torque |
N.m |
≥120 |
|||
Rated Rotate Speed |
r/min |
220 |
|||
No Load Rotate Speed |
r/min |
≥650 |
|||
Max. Output Power |
kW |
≥2.3 |
|||
Max. Propelling Force |
kN |
≥9.5 |
|||
Voice |
dB(A) |
≤95 |
|||
Max.Load Rotate Torque |
N.m |
≥230 |
|||
Gas Consumption |
m3/min |
2.9~3.8 |
|||
Max.Height |
mm |
2457 |
3057 |
3657 |
|
Min.Height |
mm |
1126 |
1276 |
1426 |
|
Tunnel Height Adaptable |
m |
1.5~2.5 |
2.2~3.1 |
2.8~3.7 |
|
Weight |
kg |
46 |
51 |
53 |
|
Optimal Flushing Water Pressure |
MPa |
0.6~1.2 |
|||
Water Pressure Adaptable |
MPa |
≤12 |
|||
Optimal Drilling Diameter |
mm |
Φ25~32 |
|||
Drilling Diameter Adaptable |
mm |
B19 |
|||
Max.Deviation Angle for Vertical Drilling |
≤25° |
||||
