Product Introduction

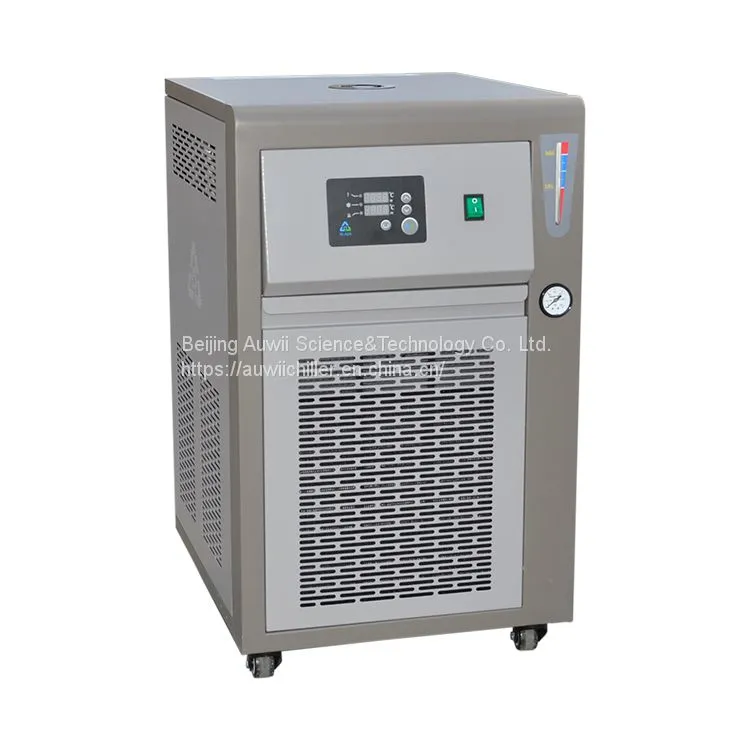

K series chiller is specially designed for small/medium size industrial equipment.
The small size machines adopt front air come-in design, which is convenient for condenser cleaning.
Medium size machines air discharge from top, good for heat dissipation.
It is an ideal companion of small/medium industrial equipment refrigeration requirement.
Functions and Features
◎ Vertical structure, beautiful appearance, small size with lockable caster wheels;
◎ Removable front panel, easy to clean condenser;
◎ Branded stainless steel pump;
◎Level display and level detector, easy to observe and monitored the level of liquid, and timely fluid supplement;
◎ PP cotton and resin ion filter can be selected to ensure that the water is clean;
◎ Various connectors, easy to connect with customer equipment;
◎ Multiple types of remote control;
◎Multiple alarm protection functions: compressor delay protection, compressor over current protection, water flow alarm, high and low temperature alarm, etc.
Typical Application
Kingii is mainly used for supporting laser, industrial furnace, injection molding machine, fermentation reaction tank, welding cutting machine, material testing platform, vacuum furnace, vacuum coating equipment, etc.
Product Specifications
| Model | Cooling Capacity W@25℃ | Temperature Range | Temperature Stability | Max Flow | Max Pressure | Reservoir | Size of Connection | Overall Dimension W*D*H |
| ℃ 50/60Hz | ℃ | ℃ | L/min | Bar | L | mm | ||
| sK1 | 1200/1450 | 5-35℃ | ±0.2℃ | 25 | 1.7 | 8 | Rp 1/2 | 360x475x655-60 |
| sK2 | 1900/2300 | 5-35℃ | 25 | 1.7 | 12 | Rp 1/2 | 430x540x720-60 | |
| sK3 | 2600/3200 | 5-35℃ | 50 | 2.8 | 20 | Rp 1/2 | 500x605x812-72 | |
| sK4 | 3600 | 5-35℃ | 50 | 3.6 | 30 | Rp 1/2 | 540x705x922-72 | |
| sK5 | 5600/6600 | 5-35℃ | 80 | 3.6 | 50 | Rp 1 | 540x880x972-92 | |
| sK6 | 8000 | 5-35℃ | 80 | 3.6 | 60 | Rp 1 | 620x980×1072-92 | |
| sK7.04 | 10K | 5-35℃ | 100 | 3.8 | 120 | Rp 1 | 620x980×1072-92 | |
| sK7.05 | 15K | 5-35℃ | 100 | 3.8 | 120 | Rp 1 | 620x1260×1162-92 | |
| sK1β | 900/1100 | -20-35℃ | ±0.2℃ | 15 | 1.7 | 8 | Rp 1/2 | 360x475x655-60 |
| sK2β | 1600/1900 | -20-35℃ | 15 | 1.7 | 12 | Rp 1/2 | 430x540x720-60 | |
| sK3β | 2200/2600 | -20-35℃ | 30 | 2.8 | 20 | Rp 1/2 | 500x605x812-72 | |
| sK4β | 3200 | -20-35℃ | 35 | 3.6 | 30 | Rp 1/2 | 540x705x922-72 | |
| sK5β | 5200/5800 | -20-35℃ | 60 | 3.6 | 50 | Rp 1 | 540x880x972-92 | |
| sK6β | 7.2K | -20-35℃ | 60 | 3.6 | 60 | Rp 1 | 620x980×1072-92 | |
| sK7β04 | 8K | -20-35℃ | 60 | 3.8 | 120 | Rp 1 | 620x980×1072-92 | |
| sK7β05 | 12K | -20-35℃ | 60 | 3.8 | 120 | Rp 1 | 620x1260×1162-92 | |
| sK5γ | 3.5K | -40-35℃ | ±0.5℃ | 20 | 3.5 | 50 | Rp 1 | 540x880x972-92 |
| sK6γ | 5.0/6.5K | -40-35℃ | 25 | 3.5 | 60 | Rp 1 | 620x980×1072-92 | |
| sK7γ05 | 6/7.2K | -40-35℃ | 50 | 4 | 120 | Rp 1 | 620x980×1072-92 | |
| sK7γ07 | 8K/10K | -40-35℃ | 50 | 4 | 120 | Rp 1 | 620x1260×1162-92 | |
| rK1 | 1200/1450 | 5-35℃ | ±1℃ | 25 | 1.7 | 8 | Rp 1/2 | 360x475x655-60 |
| rK2 | 1900/2300 | 5-35℃ | 25 | 1.7 | 12 | Rp 1/2 | 430x540x720-60 | |
| rK3 | 2600/3200 | 5-35℃ | 50 | 2.8 | 20 | Rp 1/2 | 500x605x812-72 | |
| rK4 | 3600 | 5-35℃ | 50 | 3.6 | 30 | Rp 1/2 | 540x705x922-72 | |
| rK5 | 5600/6600 | 5-35℃ | 80 | 3.6 | 50 | Rp 1 | 540x880x972-92 | |
| rK6 | 8000 | 5-35℃ | 80 | 3.6 | 60 | Rp 1 | 620x980×1072-92 | |
| rK7.04 | 10K | 5-35℃ | 100 | 3.8 | 120 | Rp 1 | 620x980×1072-92 | |
| rK7.05 | 15K | 5-35℃ | 100 | 3.8 | 120 | Rp 1 | 620x1260×1162-92 |
