Automatic Stretching Machine

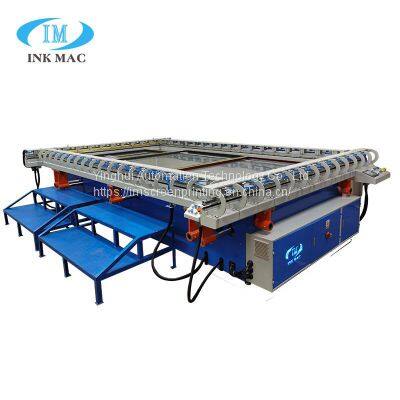

Automatic Stretching Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2015
Port of Shipment:
tianjin, shanghai
Payment & Shipping
Payment Methods:
Port of Shipment:
TianJin port,Shanghai port,Guangzhou port
Delivery Detail:
45 days

Automatic stretching machine

Mesh stretching is the most important step during screen plate manufacturing. the Tension consistency will directly influence the quality of printing. Our company have invested a lot of manpower, resource and time into research and development, this machine is one of our large scale mesh stretching equipment.

One major highlight is intelligent automation control. Not only save the manpower and material resource, but also increase efficiency and accuracy. By using the stability of mechanical motion, realised the synchronism of stretching. and the consistent tension of warp and weft realised the maximize the screen tension.

Highlight 2: Automatic pneumatic chuck, synchronous operation, in the process, no manual labor needed to operate the chunk one by one.

Highlight 3: stretching angle is controllable.the machinical stretching is best suitable for making screen with a certain angle.the Automation Plate-Making Equipment has angle controller function which can reduce human error and multi stretching mode options.

The Yinghui stretching process: After Startup, the crossbeams return back to home position under the control of PLC and serve motor.

Then select date set of screen stretching, the four crossbeams will move to appropriate position immiedately, decrease the height of the worktable and put the frame on. for oblique stretching, you can select rule for positioning, then laying the mesh on the table and clamping the mesh tightly by  pneumatic switch. press the start button, the high pressure chunk will clamp the mesh more tightly, the stretching process starts automatically. when stretching stopped, measure the tension, use accurate adjustment method if additional adjustments is required. raising the worktable, when the frame touched the mesh, coat adhesive and drying. press the stop button, the crossbeams will return to home position, then take the screen plate down.

More information please visit our website.
