Home > Manufacturing & Processing Machinery > Machine Tools > Drilling Machine > Diesel Engine Driven Drilling Mud Pump For Oil Field Drilling / Grouting

Diesel Engine Driven Drilling Mud Pump For Oil Field Drilling / Grouting

Diesel Engine Driven Drilling Mud Pump For Oil Field Drilling / Grouting photo-1

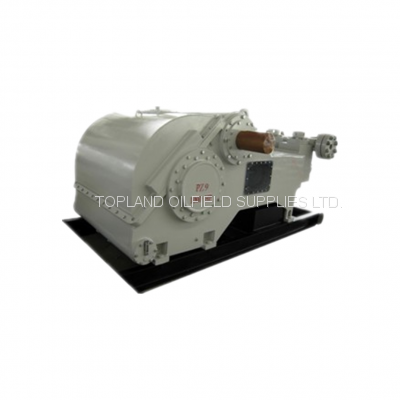

Diesel Engine Driven Drilling Mud Pump For Oil Field Drilling / Grouting photo-2

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

China

Certification:

API Standard

After-sales Service Provided:

No overseas service provided

Contact Supplier Request Quote Chat Now

Topland Oilfield Supplies Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Certification API Standard

After-sales Service Provided No overseas service provided

FEATURES

-F-series triplex mud pump’s advanced structure and smooth operation will meet the requirements of middle-deep well drilling operations.

- Long stroke and reliable service, it can be run at the lower strokes per minute to extend the expandable parts life of fluid end.

-The suction valves can be interchangeable with the discharge valves. The main parts between three cylinders and fluid ends can be interchangeable and completely interchangeable with those of F-series pump of EMSCO.

F-SERIES MUD PUMP PARAMETER LIST

Model	Unit	F-500	F-800	F-1000	F-1300	F-1600
Max. input power	HP(Kw)	500（370）	800(590)	1000(735)	1300(969)	1600(1193)
Rated pump speed	spm	165	150	140	120	120
Max. fulid cylinder liner bore	in(mm)	7(177.8)	7(177.8)	7(177.8)	7(177.8)	7(177.8)
Stroke	in(mm)	7.5()	9”()	11”()	12(304.8)	12(304.8)
Hydrostatic test pressure of standard fluid cylinders	Psi(kg/c㎡)	7500（527）	7500（527）	7500（527）	7500（527）	7500（527）
Ratio of gears		4.268:1	4.185:1	4.207:1	4.324	4.324
Suction connection,ASA-150Ib,R.J.flange	in	8	10	12	12	12
Discharge connection cross w/API-5000-Ib R.J. flange	in	4	5	5	5	5
Valve port, API		API 5#	API 6#	API 6#	API 7#	API 7#
Weight	Ibs(kg)	21540(9770)	31965 (14500)	41423(18790)	45650(20707)	46820(21238)

PZ Series Pump

Model	Max liner size & Stroke(in)	Displacement (GPM)	Max. RPM	Power Rating (HP)	Gear Ratio	Weight(lbs)
PAH	5x8	357	175	275	4.7:1	9.2
PZ-9	7x9	585	130	1000	4.48:1	24,368
PZ-11	7x11	632	115	16000	4.38:1	37,000
