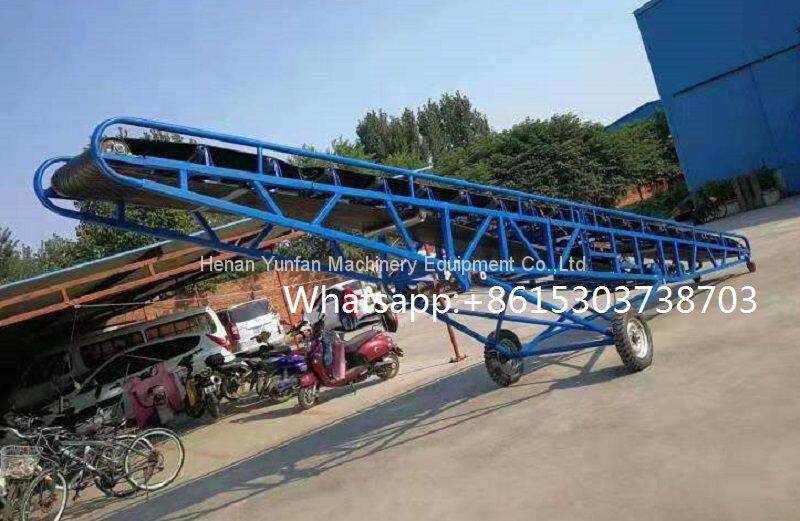

China stone quarry conveying portable inclined belt conveyor is one kind of continuous mechanical handling and loading unloading equipment with feature of high efficiency and durability,safety and reliability. China stone quarry conveying portable inclined belt conveyor is mainly used for short-distance transport and loading work for bulk or packed materials. Adopts the steel tubular structure , it has the feature of lightness and good mobility. Drived by electric motor and roller, and equipped with two universal steel wheels and pneumatic tires. The inclination angle can be adjusted when overall machine length above 10 meters.
Main Features of Belt Conveyor
The mobile belt conveyor is suitable for bulk grain, conveying, stacking, loading and unloading operations. It advantages as follow:
1: There are 5 meters, 8 meters, 10 meters, 12 meters, 15 meters, 18 meters, 20 meters and other specifications.
2: The belt width can be as 500mm, 600mm, 650mm, 700mm, 800mm, 1000mm, 1200mm....
3: The belt thickness can be as 8mm, 10mm, 12mm, 14mm.....Use the high quality EP Belt.
4: The frame as strong carbon steel
5: The running speed can be controlled from 0.3m/s-2.5m/s, The mobile belt conveyor can control the running speed to meet the different requirements of bulk transportation and packaging,
6: The height can be adjustable by the up and down motor, very easy to operate.
Main Specifications of Belt Conveyor
| Item | DY6551 | DY6571 | DY65101 | DY65102 | DY65102A | DY65151 | DY65152 | DY65152A | |
| Length(m) | 5 | 7 | 10 | 10 | 10 | 15 | 15 | 15 | |
| Belt width （mm） |
650 | 650 | 650 | 650 | 650 | 650 | 650 | 650 | |
| Belt speed (m/s) |
1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | |
| Max delivery height(m) |
1.55 | 1.52 | 1.82 | 4.56 | 4.56 | 1.85 | 6.48 | 6.48 | |
| Angle of repose(°) | 13°29′ | 8°53′ | 6.5° | 10°～22° | 10°～22° | 4.32° | 10°～22° | 10°～22° | |
Pls contact us directly if you have any needs of belt conveyor.
