Home > Products > Multi Heads CNC Router > China UnionTech 2015 Multi Heads CNC Wood Router with Good Price
China UnionTech 2015 Multi Heads CNC Wood Router with Good Price
- 30 Piece / Pieces per Month
- qingdao
- T/T L/C Credit Card PayPal
- 20 days
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Brand Name: | UnionTech | Place of Origin: | China | Model Number: | UT-2015-8S |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 1 years |
Weight: | 1000kgs | Dimension(L*W*H): | 1.9*3.2*1.8m | Voltage: | 220/380v |
Condition: | New | CNC or Not: | CNC |
Product Description

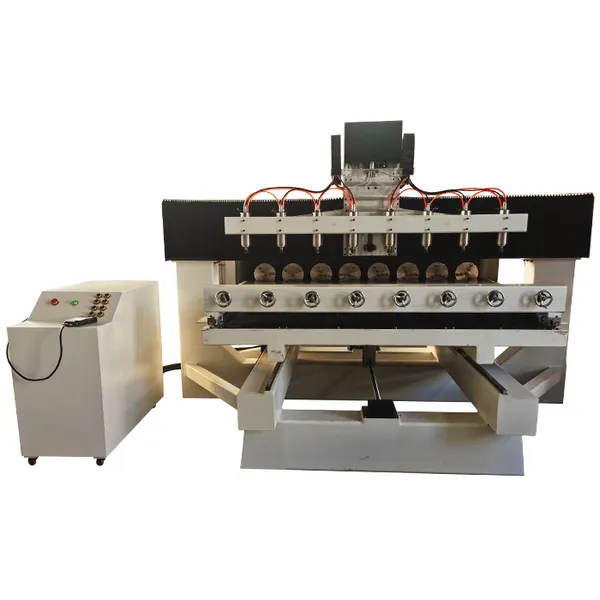

China UnionTech 2015 Multi Heads CNC Wood Router with Good Price
2000 * 1500mm the standard working size, equipped with 300mm rotary device, is professionally used for processing cylindrical products, such as wooden table legs,railing etc. We have Italian HSD brand spindle for option.
Features: |
UnionTech 4 axis CNC router uses HIWIN25 linear square rails, XYZ axis adopts import ball
screw, move smoothly, high accuracy carving. high-speed low noise.
UnionTech 4 axis CNC router has widened machine head part assembly additional bob-weight.
and ancillary shorting, make the whole machine move more smoothly.
UnionTech 4 axis CNC router with computer connection directly, support break, continue
carving after cut off electric.
UnionTech 4 axis CNC router has multi-function, it can make the machine work on flat or cylinders.
Parameters: |
X,Y,Z Working Area | 2000*1500*300mm for flat working, 200mm diameter, 2000mm length for rotary axis |
Table Surface | Movable T-slot Table |
Frame | Welded Structure |
X, Y Structure | 25# HIWIN linear guide, helical rack |
Z Structure | Hiwin Rail Linear guide and TBI Ball Screw |
Max. Power Consumption | (Without Spindle)2.5kw~3kw |
Spindle Power | 8* 2.2kw water cooling spindle |
Spindle Speed | 0-24000RPM |
Drive Motors | Leadshine 850W servo motor |
Working Voltage | AC380V/50-60Hz,3PH (Option: 220V/1phase) |
Command Language | G Code |
Operating System | NCstudio control system |
Rotary device | 8 sets, 200mm diameter |
Computer Interface | USB |
Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
Optional parts | Japanese YASKAWA servo motor, Italy HSD air cooling spindle |
Product details: |
| Spindle: China HQD 3kw air cooling spindle. ER25 collet. 7kw for options. |
Motor: Leadshine pure servo motor and driver, powerful and high quality, with alarm function. motor for options. | |
Controller: safeguard and breakpoint function. | |

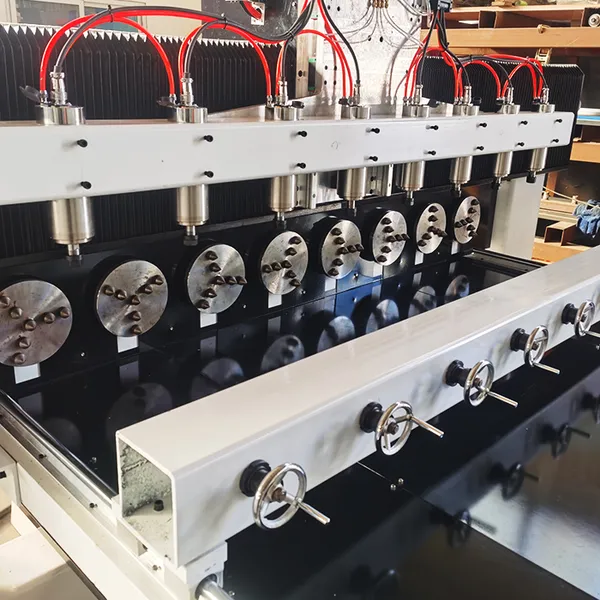

Multi spindles 8 spindles, 8 rotary axis, higher working efficiency. |
Applications: |
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,craft sash,
composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble,plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4. relief sculpture, 3D engraving & Cylinder object engraving.
The factory to show: |
Jinan UnionTech Machinery Co., Ltd. is located in Jinan City, Shandong Province. We have always been devoted to the research and manufacture of CNC machines. We have R & D Production Department, Quality Control Department, and Sales & Service Department. Our products are widely used in Woodworking, Advertising, Model, Electricity, CAD/CAM Industrial Models, Clothing, Package Printing, Marking, Laser Sealing and so on. We can offer you high quality products with the competitive price. Our products got the CE certificate. Our main products are robot arm CNC Routers, 5 axis CNC router, Laser Engraving and Cutting Machines, Fiber Laser Cutting Machines, Plasma Metal Cutting machines and so on. With advanced technology, high quality, reasonable price and perfect post-sales service, our products have attained favorable comments among other our clients and our business has developed rapidly. Our products are exported worldwide, including Southeast, the Middle East, Africa, Europe and the U.S.A. We are looking forward to establishing relationships with you in the near future.
FAQ: |
UnionTech standard size and configuration CNC router machine delivery time is 7 days, ATC series machine delivery time is 15 days, 4 axis and 5 axis series machine delivery time is 25 days.
Q2. Can you send machine to my home?
Yes, we have cooperation long time shipping agent, famous team in China, they can offer FCA,FOB, CIF, DDU, DDP price, usual suggest receiver address is Business district, usual less big car drive in the Civil area.
Q3. This is the first time to use cnc router machine, is it easy to operate?
Yes, it is easy for a newer, if you can draw with software, the machine operation is no problem, because we will support:
1).English guide video and instruction book together with the cnc router.
2).Free training course in our factory. Engineers are available to serve overseas.
