Product Description
The machine uses the high-speed relative motion between movable gears to crush materials through the impact between gears, friction and impact between materials. The utility model has the advantages of simple structure, firmness, stable operation and good crushing effect. The crushed material can be directly removed from the grinding chamber of the main engine, and the particle size can be obtained by changing the screen with different apertures.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) No need screen in grind chamber, change powder size by changing speed.
4) Can make very fine powder.
Working principle

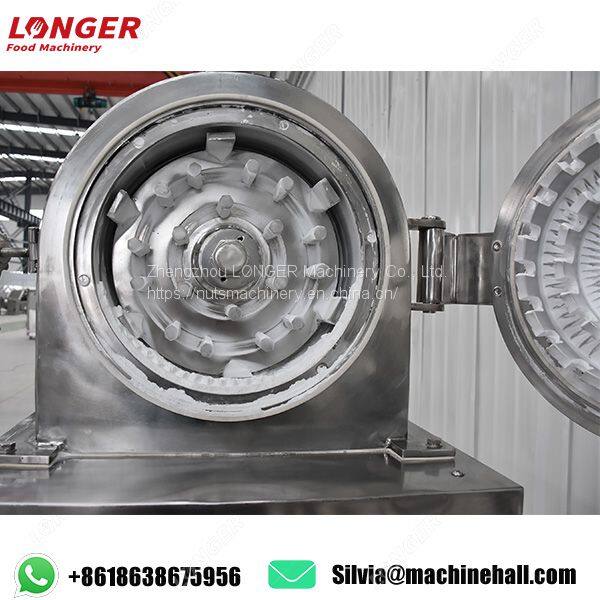

It makes use of the high-speed relative movement of the movable gear disc and the fixed gear disc to crush the materials through the comprehensive effect of striking and friction of the gear disc as well as the mutual striking of the materials. The final size is adjusted by changing the screen with different hole.
Advantages
1 Material,usually all material use stainless steel 304,if you want stainless steel 316,we can make for you.
2 Automatic operating :just press button. Easy to clean,usually use water cooling and air compressor is ok .
3 Final powder size range from 12 mesh -120 mesh,we have screener like 12 mesh,20mesh,30mesh,40mesh,60mesh,80mesh,100mesh,120 mesh for your choose.
4 Machine has water cooling system to reduce working temperature,so can working long hours.
FAQ
Q1. What materials the machine can grind?
coal, gypsum, salt, sugar, various seasonings, pepper, pepper, anise, anise, cinnamon, herbs, spices
Q2.The minimum fineness:
120 mesh
Q3.The crushing part is divided into three types:
boring heads, claws, and turbines. The difference is different materials, according to the order of the hardness of the material.When crushed coal, gypsum and other high hardness of boring use taro.
Q4 Vulnerable parts:
screen, one machine, one screen. 60 yuan
5.The fineness can be adjusted by the screen, the screen machine comes with one, and the rest needs the customer to buy it.
6.When dealing with oily viscous materials, communicate with the factory in advance. During the production, the factory will put frozen liquid into the machine to prevent the material from sticking to the screen, but the price of the machine needs to be re-determined.
7.Feed inlet can be customized according to the size of the material, 20B-C inlet is 6 cm wide, 12 cm long.
8.How does it work？
The claws pass through the high-speed operation of the thorns on the claw plate cover. Turbine milling on the wall, friction
9.Dust removal principle:
The fine powder is sucked out by the motor operation.
