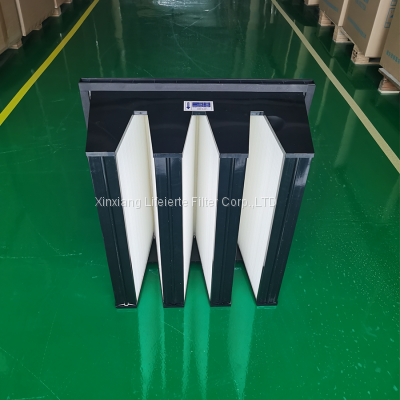

4V V-Shape Type Air Filter With Plastic Frame and Single Header, F9 Medium, Customize Dimensions
Introduction
V-type pleated filter is a kind of air filter, and its filtering principle is adsorption method. Compact structure, space saving, large effective filtration area, low resistance, long service life and good stability. It is used in air pre filtration of central air conditioning and central ventilation system, suction port filtration of gas turbine and centrifugal air compressor, clean return air system, etc. W-type combined high efficiency air filter with large air volume is a kind of air filter. Its filtering principle is adsorption method, in order to obtain clean air that can reach the standard. The dust removal equipment is designed to capture and adsorb dust particles with different particle sizes in the air, so as to improve the air quality. Besides dust adsorption, chemical filter can also adsorb odor, It is usually used in biopharmaceuticals, hospitals, airport terminals, human settlements and other places.
Hepa Air Filter 592*592*292 4V Type High Efficiency Air Filter
Brand: LEFILTER
Model: 4V Type
Size: 592 * 592 * 292
Filtration area m2: 18.8
Initial resistance/air volume PA/m3/h: 80/2500, 130/3600, 200/5000
Hepa Air Filter 592*592*292 4V Type High Efficiency Air Filter Characteristic:
1. Large effective filtration area, low resistance and long service life;
2. Small space occupied makes the structure design of central air conditioning system more compact;
3. 4V type can be used for incineration, which meets the requirements of environmental protection;
MZ / P close fold filter, filter material is chemical fiber, efficiency specifications are F7, F8, F9, H10. MZ / g close fold filter, filter material is glass fiber, efficiency specifications are F6, F7, F8, F9, H10.
Other model
| 4V Type Hepa Air Filter | 592*592*292 |
| 4V Type Hepa Air Filter | 592*592*292 (MY09) |
| 4V Type Hepa Air Filter | 592*592*292 (MY10) |
