Help CenterPCBN Tools Solution
Related Products

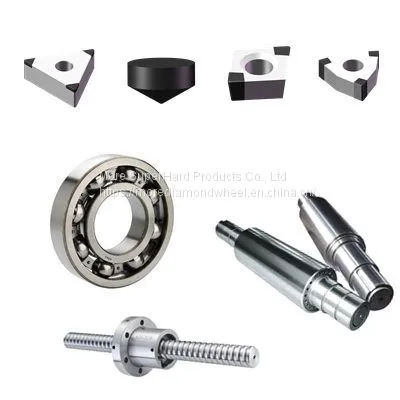

Application Materials:Hardened steel, heat and abrasive resistant steel, high manganese steel, superalloy,high strength cast iron
Machining Workpiece: HSS rolls, ball screw, wind power bearings,hardened steel gears, mold, bearings,gears, gear shaft, hardened mold,high hardness component, car ball cage
Inserts Model:TNGA160416, TNGN,RNGN090300, CNMN, SNMN, RCGX and customized PCBN inserts, etc
Application: bearing, gears, mold, ball screw, etc
Case Studies
Case I
Workpiece |
Gear |
Cutting inserts |
PCBN – SNGN201020 |
Workpiece Materials |
40CrMo (45-55HRC) |
Cutting Parameters |
Roughing: Ap=4mm, f=0.7mm/r |
Finishing: Ap=0.5mm, f=0.6mm/r | |
Cutting Method |
Gear Top cylindrical Turning |
|
|
Comparison
Comparison |
Cutting Speed |
Efficiency |
Life |
Carbide inserts |
20m/min |
20h/pcs |
0.25pcs/edge |
|
MORESUPERHARD CBN inserts |
50m/min |
2h/pcs |
2pcs/edge |
Case II
Workpiece |
Bearing |
Cutting inserts |
PCBN—SNGN150720 |
Workpiece Materials |
Gr15 (55-62HRC) |
Cutting Parameters |
Vc=120m/min |
Ap=4mm | |
f=0.1mm/r | |
Cutting Method |
Cylindrical / Face turning |
|
|
Case Studies - Case III
Workpiece |
Rotary Support Bearing |
Cutting inserts |
PCBN—RCGN090700 |
Workpiece Materials |
42CrMo (47-55HRC) |
Cutting Parameters |
Vc=90m/min |
Ap=0.2mm | |
f=0.3mm/r | |
Cutting Method |
Inner Circle Turning |
|
|
Comparison
Comparison |
Cutting Speed |
Efficiency |
Life |
Coated Alloy |
50m/min |
2h/pcs |
1pcs/edge |
|
MORESUPERHARD CBN inserts |
90m/min |
30min/pcs |
4pcs/edge |
Case IV
Workpiece |
Crankshaft |
Cutting inserts |
PCBN—DNGA110408 |
Workpiece Materials |
42CrMo (42-47HRC) |
Cutting Parameters |
Vc=170m/min |
Ap=0.3mm | |
f=0.1mm/r | |
Cutting Method |
Excircle Interrupted Wet Turning |
|
|
Comparison
