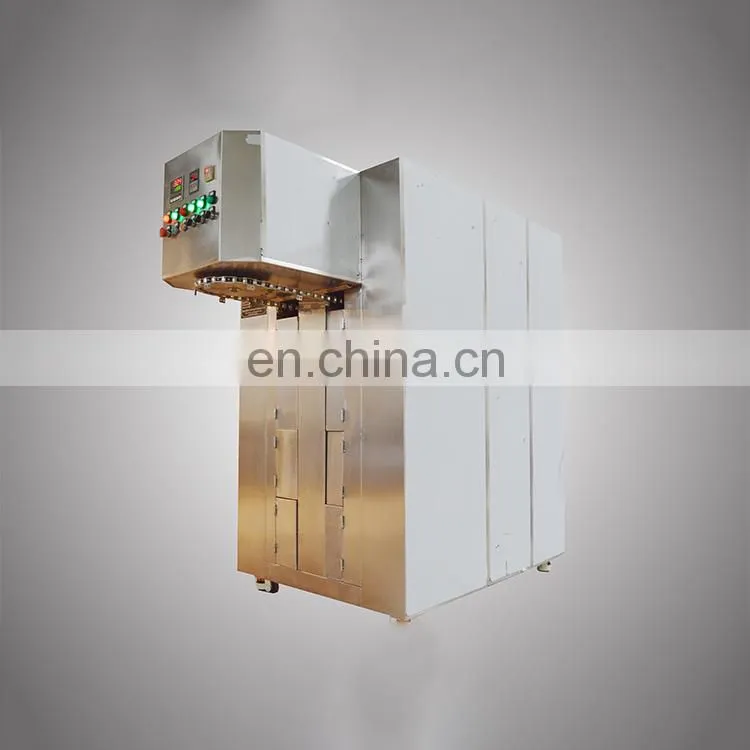

Small Heater for Socks Printer,socks Heater

Small Heater for Socks Printer,socks Heater thumbnail-1
Small Heater for Socks Printer,socks Heater thumbnail-2
Small Heater for Socks Printer,socks Heater thumbnail-3
Small Heater for Socks Printer,socks Heater photo-1
Small Heater for Socks Printer,socks Heater photo-2
Small Heater for Socks Printer,socks Heater photo-3
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Contact Supplier Request Quote Chat Now
Shenzhen Ruicheng Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us



Specifications





Name:

Tunnel heater

Electrical control box:

Top pf the box

Model:

CO-100

The precision of temperature control/resolution:

±1℃

Voltage:

380V/50HZ

Temperature uniformity:

±5℃

Power:

12KW

Operating temperature range:

+10~200℃

Size:

L1250*W1050*H1850mm(Contains the control box height)

Body materials:



Outside the enclosure wall materials

Senior 1.5 A3 manufacture plastic spraying, color white for computers.

Enclosure the tank material

Senior 1.5 SUS304 stainless steel plate.

Box body framework material

5 # Angle ~ 8 # channel steel.

Enclosure reinforced material

5 # square tube ~ 8 # channel steel, local use steel plate bending.

Material placed box

After spray paint manufacture production.

The insulation layer thickness and material

Each place according to the furnace temperature and energy conservation design considering the thickness of 100 mm, padding material, 100 kHigh-density aluminum silicate fiber filling.

Working chamber configuration:



Materials and configuration

Transmission chain for the production of stainless steel, the chain pitch is 25.4, the big ball design.

Heating system:



Heating elements

Using heraeus's infrared heating element, total power 12 kw, continuous service life can reach more than 80000-90000 hours.

Heating element number

6 groups

Electrical configuration:



The temperature controller

Japan island electric high precision digital display temperature control instrument measuring temperature and set temperature, the PID adjustment, model temperature control precision: high and low temperature + / - 1 ℃, resolution + / - 1 ℃.

Gear motor

The Sew German brand

Sound and light alarm device

APT/AD16 acousto-optic alarm device, set time end alarm prompt (schneider brand).

Control circuit voltage

380V / 50HZ

Protection system

Leakage protection, open circuit protection, earthing protection.

Circuit breaker to start

Start with a leakage protection circuit breaker, effective protection of all electrical components.

Delivery time:

30 days (imported reducer the goods time need 4 weeks.
Small heater for socks printer,socks heater
Related Products

Small heater for socks printer,socks heater



Certificate

Small heater for socks printer,socks heater

Our certificate is reviewed by the authority,

not fake, not fake or not, you can contact us to show you

Company Information

Small heater for socks printer,socks heater



Our Services
  • Call Us >> Customer provide specification or sample.
  • Sample Confirm >> Colorido provide sample for cusotmer approval.
  • Order Confirm >> Order confirmed and proceed.
  • Production >> Bulk production QC inspection.
  • Shipping >> Final QC inspecition and Export.
  • Commitment >>Colorido is responsible to all quality issues.


Packaging & Shipping

>>> FAQ

1) What’s your delivery time?
Our delivery lead time is within 10 working days after tt deposit received.

2) What’s your payment method?
Payment method is T/T (Wire Transfer) or LC, PAYPAL,Western Union etc. it depends on the country difference.

3) How to order a machine from you?
After you confirm the order details, we will send you Proforma Invoice, including our bank account. We will prepare the order on receipt of payment. The shipping documents will be sent to you in around one week after shipment date of departure.

4) If I have some technical problem, how can you help us to solve it?
Detailed description, photos or video will help our technician analyze the problem and give solution accordingly.

5) Once there is something need replace, what can I do?
We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back the broken ones. We suggest that users order spare parts package for long time maintenance and fast replacement.

6) How much taxes should we pay?
Please consult your local customs or import agent for details. Thanks.

7) Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.

8) We want to become exclusive distributor of your machines?
We look forward to your close cooperation. After you order first machine and be capable of offering after service, then we can start to negotiate about distribution relationship. Thank you.

9) How about Warranty?
12 months warranty for our machines. During warranty period, we will send free parts for replacement (circuit boards) while broken parts should be sent back.
