Belt Type Industrial Textile Printer Direct Printing Digital Belt Textile Printer
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Accuracy Precise Localization Printing System Digital Fabric PrinterNegotiableMOQ: 1 -
Direct Flag Printer Popular Flag Printing Machine in ChinaNegotiableMOQ: 1
-
Fabrics and Sublimation Transfer Paper Digital PrinterNegotiableMOQ: 1
-
Roll Size Heat Transfer Paper Sublimation PrinterNegotiableMOQ: 1
-
Process Integration Digital Textile Printer Automatic DTG Textile Printer Price Textile Printing MachineNegotiableMOQ: 1

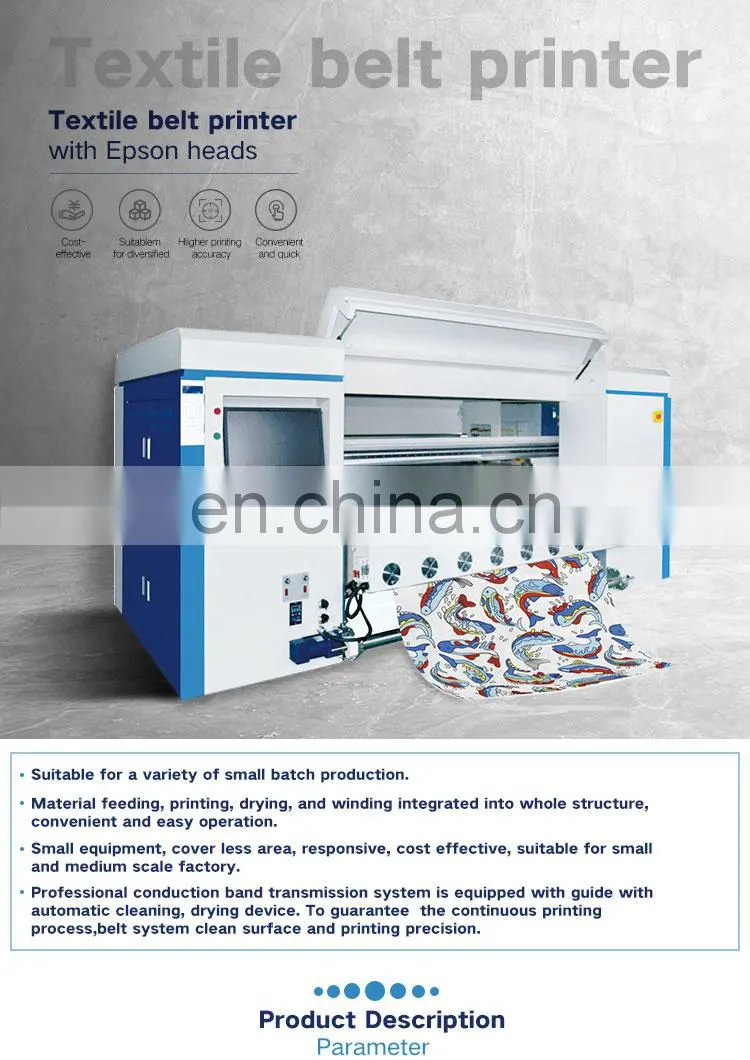

Textile belt printer with heads
Model CO-1802
Print head DX5 , 4720, 5113 (Optional).
Print head qty 2pcs/4pcs/8pcs
Printing width 1800mm/2600mm/3200mm
Max fabric width 1850mm/2650mm/3250mm
Suitable fabrics thickness 2~30mm adjustable
Suitable fabrics types Knitted or woven cotton, linen, silk, wool, polyester, nylon etc
Ink type Reactive, Acid, Sublimation, Pigment ink.
Ink colors 10colors: C, M, Y, K, LC, LM, Grey, Red, Orange, Blue.
Printing Speed (4colors production mode 4pass) Head model DX5 5113/4720
2heads 30sqm/h 50sqm/h
4heads 60sqm/h 90sqm/h
8heads 120sqm/h 180sqm/h
Cleaning Method Auto positive cleaning system.
Take up and Drying Belt continuous transport, automatic fabric taking up system, infrared dryer
Work Station Win10 64bit
CPU:Inter Core i7 6700K
HD: 1T
RAM:32GB
RIP Software Wasatch/Neo Stampa
Image type JPEG, TIFF, BMP file format/RGB, CMYK color mode
Power Supply 380V±10% 3Phase 5Wire
Frequency 50HZ±10%
Consumption 2heads Less than 6KW
4heads Less than 11KW
8heads Less than 16KW
Compression air Air flow above 0.3m3/min, Air pressure above 6KG
Working Conditions Temperature 18ºC-28ºC, Humidity 50%-70%
Equipment Dimensions 1800mm 2600mm 3200mm
3500*2500*1700mm 4300*2500*1700mm 4900*2500*1700mm
Weight 1500kg 1900kg 2200kg
Remark: All models are subject to physical object.

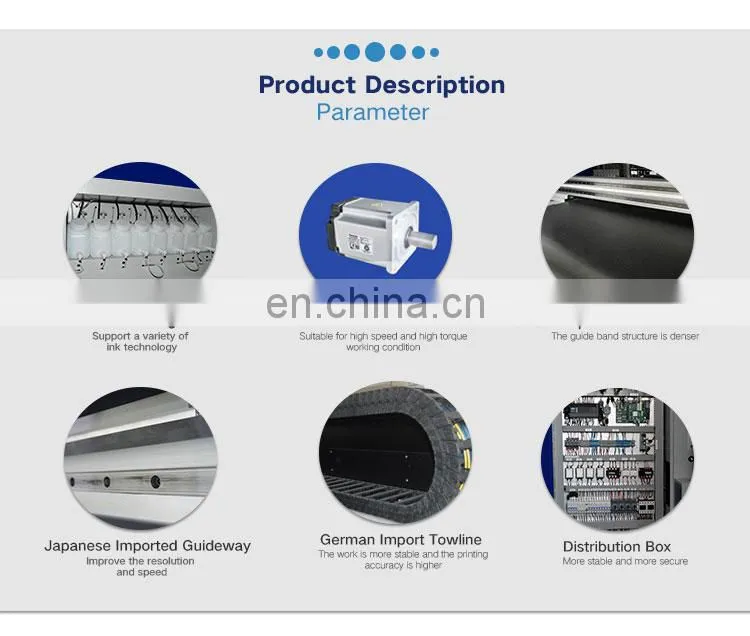

Details Display Show
Application
Why Choose Us
About Us
Product packaging
FAQ
FAQ
1) What’s your delivery time?
Our delivery lead time is within 10 working days after tt deposit received.
2) What’s your payment method?
Payment method is T/T (Wire Transfer) or LC, PAYPAL,Western Union etc. it depends on the country difference.
3) How to order a machine from you?
After you confirm the order details, we will send you Proforma Invoice, including our bank account. We will prepare the order on receipt of payment. The shipping documents will be sent to you in around one week after shipment date of departure.
4) If I have some technical problem, how can you help us to solve it?
Detailed description, photos or video will help our technician analyze the problem and give solution accordingly.
5) Once there is something need replace, what can I do?
We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back the broken ones. We suggest that users order spare parts package for long time maintenance and fast replacement.
6) How much taxes should we pay?
Please consult your local customs or import agent for details. Thanks.
7) Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.
8) We want to become exclusive distributor of your machines?
We look forward to your close cooperation. After you order first machine and be capable of offering after service, then we can start to negotiate about distribution relationship. Thank you.
9) How about Warranty?
12 months warranty for our machines. During warranty period, we will send free parts for replacement (circuit boards) while broken parts should be sent back.
Our delivery lead time is within 10 working days after tt deposit received.
2) What’s your payment method?
Payment method is T/T (Wire Transfer) or LC, PAYPAL,Western Union etc. it depends on the country difference.
3) How to order a machine from you?
After you confirm the order details, we will send you Proforma Invoice, including our bank account. We will prepare the order on receipt of payment. The shipping documents will be sent to you in around one week after shipment date of departure.
4) If I have some technical problem, how can you help us to solve it?
Detailed description, photos or video will help our technician analyze the problem and give solution accordingly.
5) Once there is something need replace, what can I do?
We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back the broken ones. We suggest that users order spare parts package for long time maintenance and fast replacement.
6) How much taxes should we pay?
Please consult your local customs or import agent for details. Thanks.
7) Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.
8) We want to become exclusive distributor of your machines?
We look forward to your close cooperation. After you order first machine and be capable of offering after service, then we can start to negotiate about distribution relationship. Thank you.
9) How about Warranty?
12 months warranty for our machines. During warranty period, we will send free parts for replacement (circuit boards) while broken parts should be sent back.
