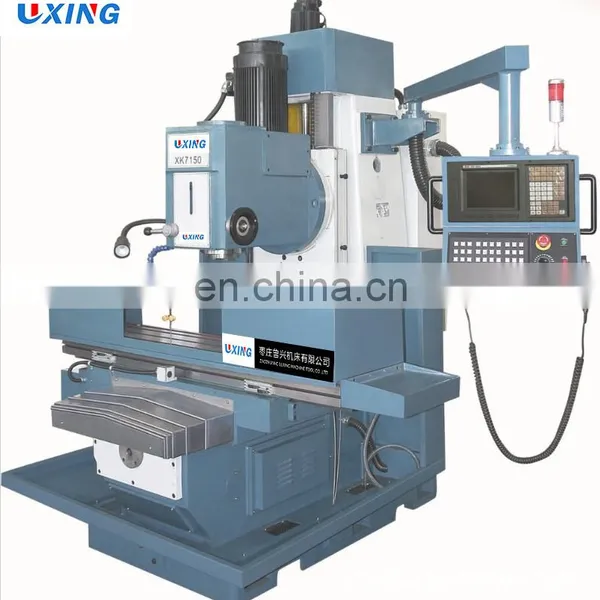

Luxing High rigidity heavy duty Metal Vertical XK7150 XK7150A CNC Bed type knee type Milling Machine price
Features:
1. The overall bed structure, high rigidity.
2. The feed system is directly connected to the ball screw by the servo motor, with high transmission precision.
Machine main specifications:
Specifications |
Units |
XK7150 |
XK7150A |
Table size(X.Y) |
mm |
1650*400 |
2050*400 |
Table stroke |
mm |
1050*500*530 |
1450*500*530 |
T-type slot numbers / width /space |
mm |
3-18-100 |
3-18-100 |
Max. load working table |
kg |
800 |
1000 |
Distance from spindle axis to column guide way |
mm |
540 |
600 |
Distance from spindle nose to table surface |
mm |
100-630 |
150-700 |
Spindle taper |
|
ISO50(7:24) |
ISO50(7:24) |
Spindle motor power |
KW |
7.5 |
7.5 |
Feed motor power |
KW |
2.5 |
2.5 |
Positioning accuracy |
mm |
0.04 |
±0.04 |
Repeat positioning accuracy |
mm |
0.02 |
0.02 |
Overall dimensions(Lx W x H) |
mm |
2390*1860*2220 |
3000*2285*2340 |
Machine weight |
Kg |
4500 |
5300 |
1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
