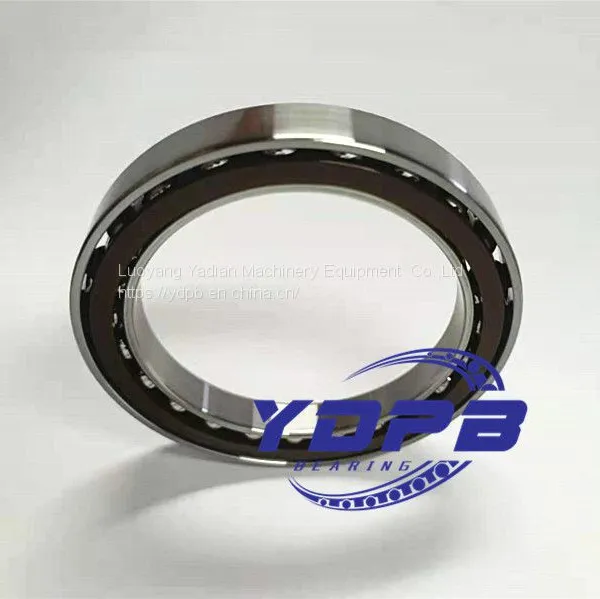

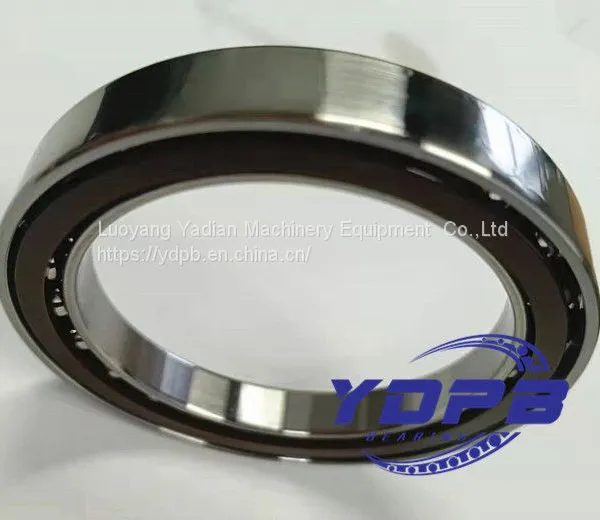

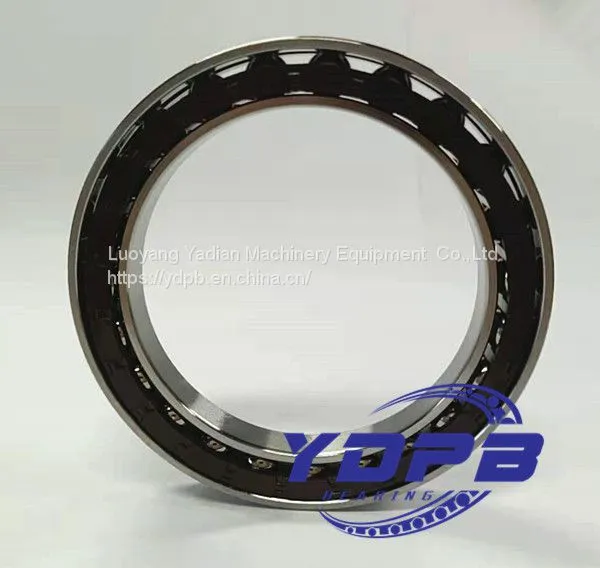

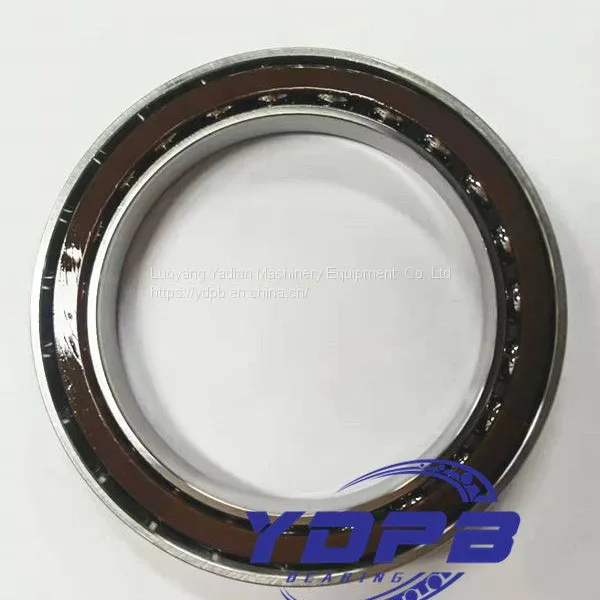

Help CenterYadian F25 Flexible Bearing for Harmonic Drive Reducer Deformed Robots Bearing 45.212X61.341X9.015/6.35mm
Related Products
-
China 5mm Ball Bearing Flexible Robots Bearing for Harmonic DriveUS$ 1 - 300MOQ: 1 Piece -
China 9.5 mm Ball Bearings Flexible Robots Bearing for Harmonic Drive ReducerUS$ 1 - 300MOQ: 1 Piece
-
China Industrial Roller Bearings CSF25/CSG25US$ 1 - 100000MOQ: 1 Piece
-
China Flexspline Bearing Factory 3E904KAT2 Harmonic Drive Reducer of Industrial Robots Bearing 18.8X25X4mmUS$ 1 - 100000MOQ: 1 Piece
-
3E905KAT2 China Flexible Bearing Manufacturers 24x32x5mm Harmonic Reducer BearingUS$ 1 - 100000MOQ: 1 Piece
Flexible bearings description
Robot bearing/harmonic drive flexible bearing is a special kind which easily deforms in a reversible way. It has a very thin outer ring which varies from round shape to oval interatively during its working time. easily double sealed bearing designed primarily for application of radial load—deep ball grooves also permit application of thrust load in either direction, often used in conjunction with another bearing.
Note: Some bearings we have use new structure( with cage and cover,convenient for you to install)

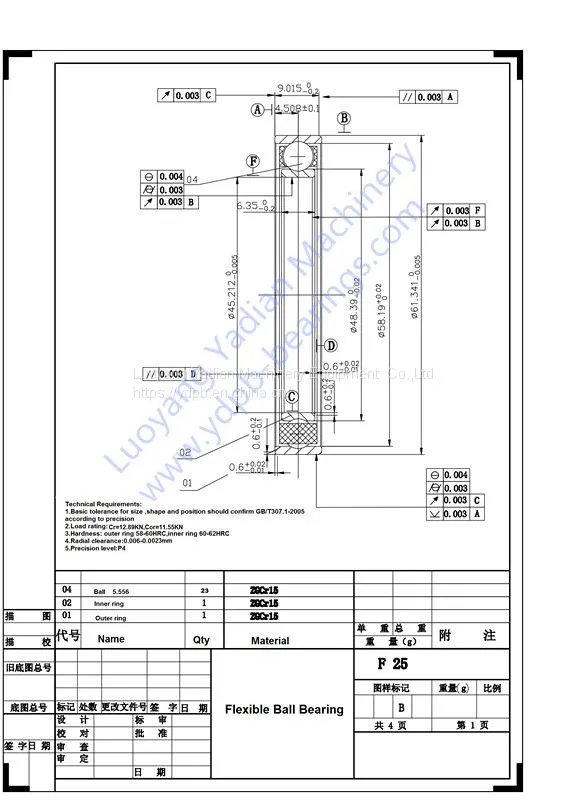

Details for Industrial Robots Use Flexible Bearings Regular models
| Bearings Model | Outer ring | Inner ring | Dynamic load rating | Static load rating | Radial Deformation |
Input rotate speed |
Output torque |
||
| Model | D | B | d | B1 | Cr | Cor | Max. mm | r/min | N.m |
| F25 | 61.341 | 9.015 | 45.212 | 6.35 | 12.89 | 11.55 | 0.4 | 3000 | 50 |
Note: Full balls flexible bearing with high rigidity ,if need,pls contact us .
Most of our stock flexible bearings are with higher precision, pls let us know what is your requirements about these bearings you need ,then we can select suitable ones for you.

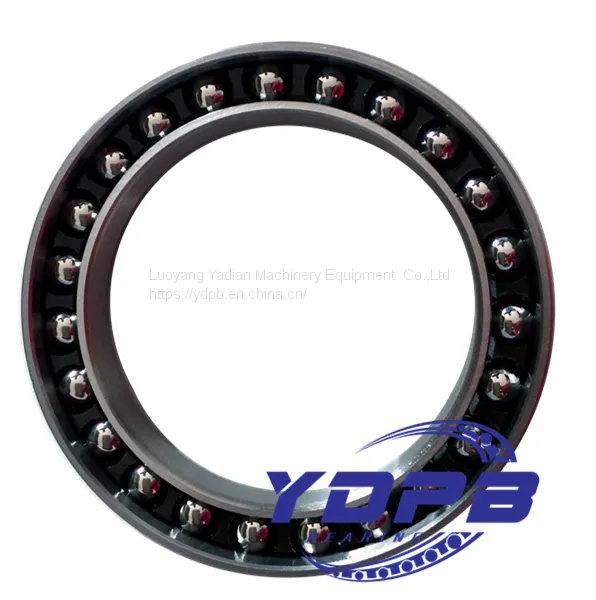

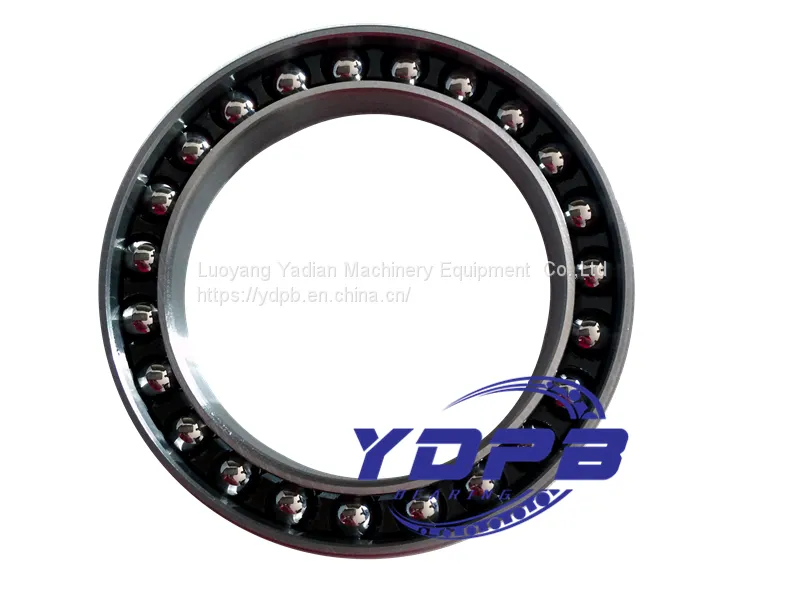

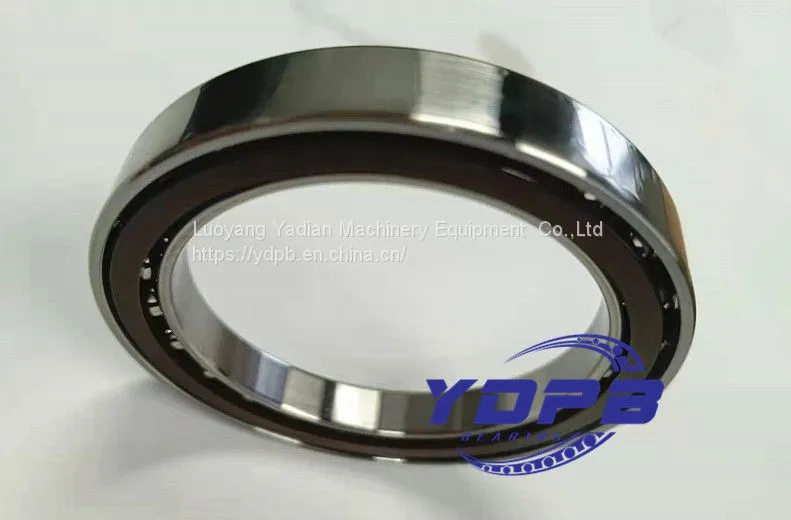

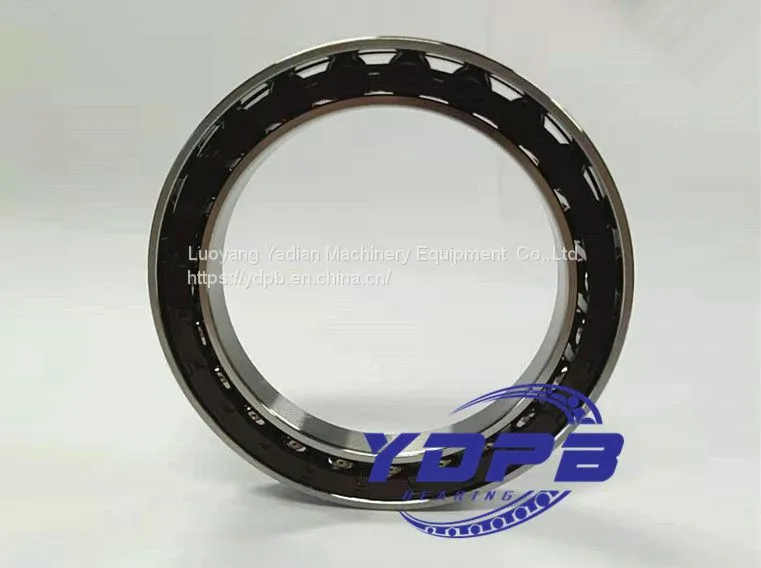

Related photoes for deformed flexible bearings
Packaging
1.Vacuum +carton/Pearl cotton+wooden cases
2.if you have special requirements,pls make us know in advance.
Payment
1.30% T/T in advance for period goods, balance will be paid before shippment(we can share the ready goods photoes and packaging)
2.Stock one 100% prepayment,
3.Small order you can place order on our onlin shop(pls contact us for address) ,
4.For bulk order, payment terms can be discussed
Warranty:
All of our high precsion bearing have 2 years quality warranty.
Service from Luoyang Yadian Machinery
1.Before-sales service :help selecting suitable bearings ,help design share drawings etc.
2. After-contract service: Dedicated person responsible for documentary，update you the order situation in time.
3. After-sales service: Follow the delivery, Product installation and usage，Timely service.
Transport for robots use harmonic reducer bearings
More informaiton ,pls feel free to send us email ydbearing@foxmail.com or call us directly.
