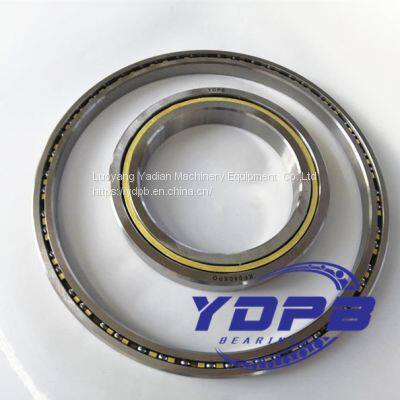

Help CenterK25020XP0 Metric 4 Point Contact Ball Slim Section Bearings China Supplier For Instrument Mounts
Related Products
-
K30020XP0 Metric 4 Point Contact Ball Slim Section Bearings China Supplier For Instrument MountsUS$ 1 - 100000MOQ: 1 Piece -
K36020XP0 Metric 4 Point Contact Ball Slim Section Bearings China Supplier For Converting EquipmentUS$ 1 - 100000MOQ: 1 Piece
-
K34020XP0 Metric 4 Point Contact Ball Slim Section Bearings China Supplier For Camera MountsUS$ 1 - 100000MOQ: 1 Piece
-
K32020XP0 Metric 4 Point Contact Ball Slim Section Bearings China Supplier For Machine Tools/ Lathe AccessoriesUS$ 1 - 100000MOQ: 1 Piece
-
China Thin Section Bearings KC120CP0US$ 1 - 100000MOQ: 1 Piece
Description
YDPB is professional on the bearings inlcude Kaydon standard think section bearings ,THK IKO
standard crossed roller bearings,INA standard Rotary Table bearings ,and also with many stock ones
flexible deep groove ball bearings used for harmonic drive, custom made bearings avaible.
Kaydon thin-section bearings Structure
Open type deep groove ball bearing
Open type angular contact bearing
Open type four point contact bearing
Sealed type deep groove ball bearing
Sealed four point contact ball bearing
Feature
1. compact structure, light weight, low vibration and friction
2. space and cost saving
3. best quality, long life
4. Custom ones available
Parameters and related photoes for thin section ball bearings YDPB produce
| 20mm Series | |||||||||||
| Model | Dimension | Load capacity | Weight | ||||||||
| Basic Size | Side wall size | Radial | Axial | Torque N-m | |||||||
| id | OD | L1 | L2 | Static | Dynamic | Static | Dynamic | Static | Dynamic | ||
| K25020XP0 | 250 | 290 | 265 | 275 | 6108 | 3731 | 15271 | 5906 | 8087 | 3706 | 2.1 |
| K30020XP0 | 300 | 340 | 315 | 325 | 7272 | 4119 | 18179 | 6633 | 11410 | 4849 | 2.3 |
Application
Transport
Drawings,price and other information needed ,pls send us email ydbearing@foxmail.com or call us directly
