Magnetic Drawer
- 10000 Piece / Pieces per Month
- T/T
- 15 days
You May Like
Product Description
Custom Magnetic Filter, Magnetic Separator, Magnetic Coupling, and other Magnet Assemblies are provided. As magnetic assemblies manufacturers, Leyuan Group has been an experienced magnetic products manufacturer in China since 1995. We manufacture a range of main magnetic products comprising magnetic filters, magnetic couplings, permanent magnets, and custom shaped magnets. These can be used in numerous fields including food processing, pharmaceutical, and chemical development, etc.
Dry Powder & Particle separation

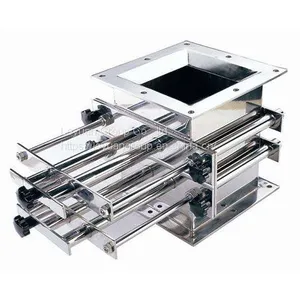

Magnetic drawers, also named drawer type magnetic grill, are made from magnetic grates in a 304L or 316L stainless steel case. As one kind of popular magnetic separator, drawer type magnetic grill separate ferrous particles from the desired product. The magnetic field intensity of the drawer-type magnetic grill is over 13000Gs and so is applicable to all kinds of powder industries.
LEYUAN supplies standard-style magnetic drawers (plate magnetic separators), easy-cleaning styles, pneumatic easy-cleaning styles, and customer-made magnetic drawers with food grade or sanitary grade features, etc.
Features of Magnetic Drawers
No energy consumption, no pollution, and easy to clean
Simple structure, easy to install, and can be installed in the pipeline or outlet of the production line.
The magnetic bar and the magnetic spacing is carefully designed so that the strong magnetic area can be more fully utilized.
Drawer-type magnetic filters have many specifications and the specific size can be designed and manufactured according to the requirements of customers.

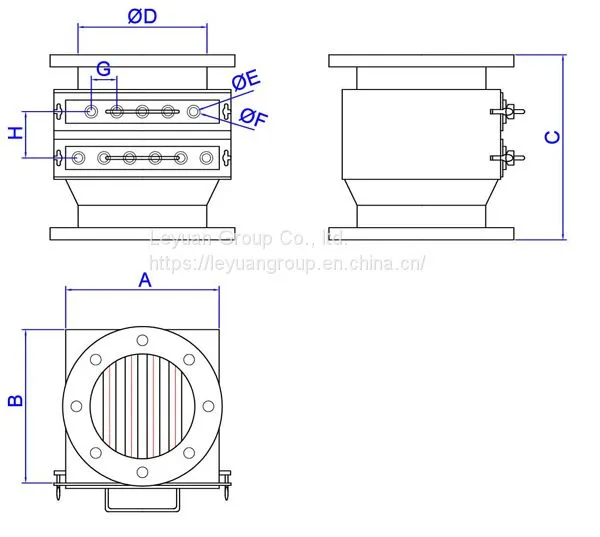

Diagram Of Magnetic Drawers
Specification | A | B | C | Flange | D | E | F | G | H | Layers | No of rods |
MY160-2 | 160 | 160 | 400 | DN100 | 110 | 25 | 28 | 50 | 100 | 2 | 5 |
MY160-3 | 500 | 25 | 28 | 50 | 100 | 3 | 8 | ||||
MY220-2 | 220 | 220 | 400 | DN150 | 161 | 25 | 28 | 50 | 100 | 2 | 7 |
MY220-3 | 500 | 25 | 28 | 50 | 100 | 3 | 11 | ||||
MY270-2 | 270 | 270 | 400 | DN200 | 222 | 25 | 28 | 50 | 100 | 2 | 9 |
MY270-3 | 500 | 25 | 28 | 50 | 100 | 3 | 14 | ||||
MY330-2 | 330 | 330 | 400 | DN250 | 276 | 25 | 28 | 50 | 100 | 2 | 11 |
MY330-3 | 500 | 25 | 28 | 50 | 100 | 3 | 17 | ||||
MY380-2 | 380 | 380 | 400 | DN300 | 328 | 25 | 28 | 50 | 100 | 2 | 13 |
MY380-3 | 500 | 25 | 28 | 50 | 100 | 3 | 20 |
