Big FOV One-Click Dimension Measuring Machine One-Touch Image Measuring Systems
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Product Description

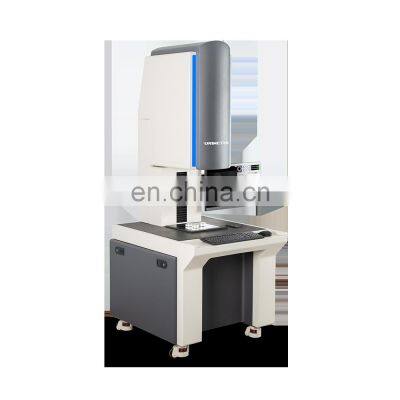

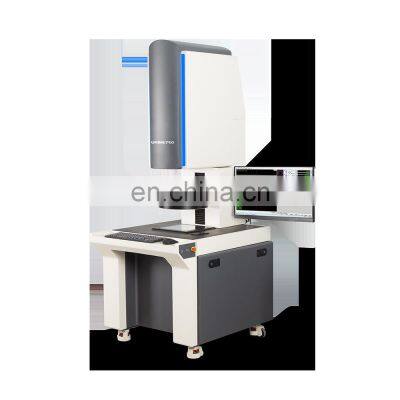

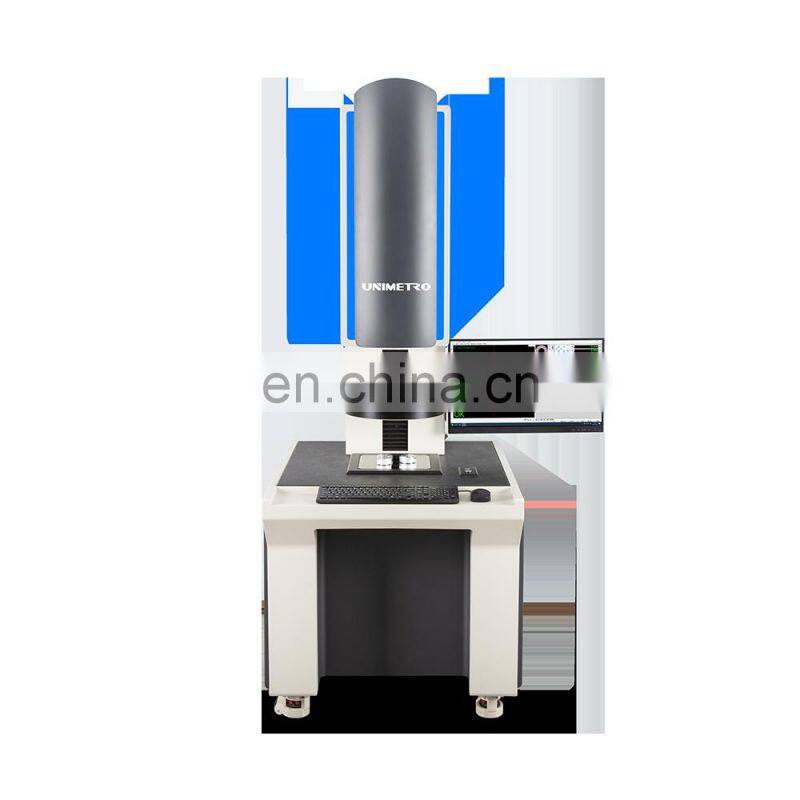

AVANT 190 Large FOV One Click Vision Measuring Machine
AVANT 190 image dimension measurement instrument is a new type of image measurement technology from UNIMETRO. It is different from the traditional 2D vision measurement instrument, it no longer needs a linear scale displacement sensor as a precision standard, and it does not need to enlarge the product image through a large focal length lens to ensure measurement accuracy.
The structure of the fuselage is simple. It does not need the grating ruler of displacement sensor. It only
needs the telecentric zoom lens with large viewing angle and large depth of field, high pixel CCD camera and
powerful background software.
needs the telecentric zoom lens with large viewing angle and large depth of field, high pixel CCD camera and
powerful background software.
Through the double telecentric optical lens with large viewing angle and large depth of field, using
high-speed digital processing function, combined with high-precision image analysis algorithm, it can complete
the evaluation of dimensional tolerance at the same time with only one key. It is widely used in machinery,
electronics, mold, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials,
precision stamping, connectors, terminals, mobile phones, household appliances, printed circuit boards, medical
equipment, watches, knives and other fields
high-speed digital processing function, combined with high-precision image analysis algorithm, it can complete
the evaluation of dimensional tolerance at the same time with only one key. It is widely used in machinery,
electronics, mold, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials,
precision stamping, connectors, terminals, mobile phones, household appliances, printed circuit boards, medical
equipment, watches, knives and other fields
Characteristic
◆ Solve the problem of traditional measuring instruments:
Traditional size measuring instruments, such as projector, tool microscope, image measuring instrument,
contour measuring instrument, vernier caliper, etc., may face the problems of high operation difficulty, complex
focusing process, time consuming of moving coordinate table, human error, long batch measurement time, and
complicated data statistics management.
contour measuring instrument, vernier caliper, etc., may face the problems of high operation difficulty, complex
focusing process, time consuming of moving coordinate table, human error, long batch measurement time, and
complicated data statistics management.
Fast and efficient:
● Products can be placed on the workbench at will, without additional fixture to fix and position.
● Rapid measurement, up to 512 parts can be measured at the same time.
● Make batch measurement more efficient, and batch measurement can be carried out quickly and accurately
in CNC mode.
● Rapid measurement, up to 512 parts can be measured at the same time.
● Make batch measurement more efficient, and batch measurement can be carried out quickly and accurately
in CNC mode.
Accurate and consistent:
● With one click, anyone can easily obtain accurate and consistent measurement results.
● Software auto focus, no deviation caused by focus adjustment.
● Automatic identification of the measurement position, each time can obtain a unified and stable
measurement results.
● Software auto focus, no deviation caused by focus adjustment.
● Automatic identification of the measurement position, each time can obtain a unified and stable
measurement results.
Easy and simple:
● Anyone can get started quickly, saving the time of manual training and improving work efficiency.
● Simple operation interface, the operator can quickly find the corresponding function and measure.
● Virtual lines and virtual points can be created to meet more measurement requirements.
● Simple operation interface, the operator can quickly find the corresponding function and measure.
● Virtual lines and virtual points can be created to meet more measurement requirements.

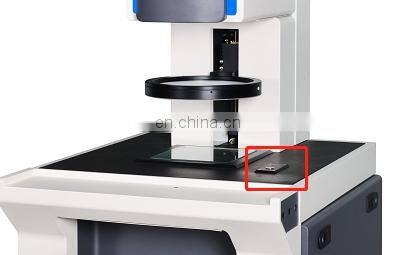

2.Placement of workpiece: no need to
position, arbitrary placement.
position, arbitrary placement.
3.One click measurement: press the button or hit the space bar.
Specification
Model Number |
A190 |
Image sensor |
20MP HD color digital camera |
External display |
24’ |
Light receiving lens |
Single / double telecentric lens |
Drop shot system |
Single zone ring direction lighting (white light), |
Transmission system |
Parallel transmitted illumination (White light) |
Broad Vision（mm） |
195*130 mm |
Repeatability |
±3（Coordinate table not moving） |
Measurement Software |
INS/F |
Display resolution |
0.1um |
Z-direction electric coordinate table |
100mm(Moving range) |
Dimension |
240*415*770mm |
Weight |
530KG |
Power Supply |
110-230VAC，50/60HZ |
