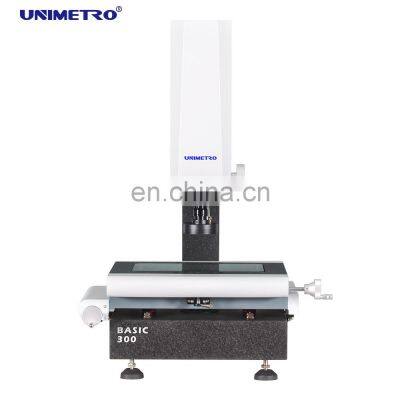

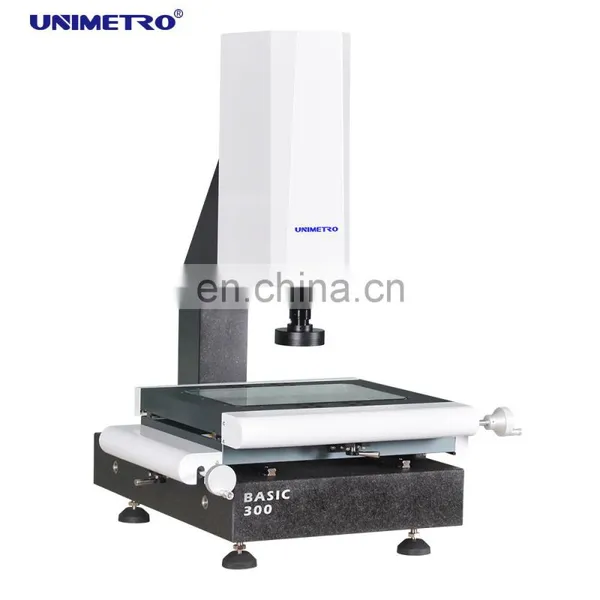

BASIC SERIES--Full Manual
BASIC Series vision measurement machine is designed and developed by UNIMETRO, Which is the most common model for most of the factories manufacturing accurate parts. It is fit for small quantity samples measuring application. 3 axis manual control, with user friendly software, allows the operator to manage using the machine in very short time.
▶ Granite base and column, excellent stability;
▶ Aluminum work stage,make the motion control fast reacting and flexible;
▶ Using HIWIN linear guide way and high-precision linear guide rail, with aluminum work stage and hard anodizing surface processing, ensures the high dynamic performance and long life cycle usage of the machine.
▶ Integrated control system,embedded with motion control,and all signal control as illumination and linear scale reading, ensures the performance of the machine is extremely stable.
◉ 3 axis 0.5um resolution linear scales
◉ High performance Auto focus function
◉ Compatible with Renishaw touch probe
◉ Aluminum work stage and hard anodizing
◉ 3 rings 8 section LED ring light software control and programmable
◉ Parallel light path LED contour light software control and programmable
◉ 1.2M pixel HD digital camera
◉ Integrated core control box
◉ Z axis motorized control
◉ HIWIN linear guide way
◉ With Laser indicators for auxiliary positioning and focusing
◉ 0.7-4.5X manual dented zoom lens with magnification signal feedback sensor
◉ Easy calibration
◉ Multiple angle touching
◉ Fast coordinates system setting
◉ Compatible to full line of Renishaw stylis
◉ CAD module supported(Optional)
◉ 3D drawing output
◉ Star probe compatible
◉ 3D dimension measuring
◉ Image and touch probe combine measuring
◉ Probe rack supported(Optional)
PARAMETER
BASIC200 | BASIC300 | BASIC400 | BASIC500 | ||||||
Dimension(mm)(L×W×H) | Dimension(mm)(L×W×H) | 550*540*930 | 600*740*980 | 700*840*980 | 800*940*980 | ||||
Measuring range(mm)(X×Y×Z) | Measuring range(mm)(X×Y×Z) | 200*100*150 | 300*200*200 | 400*300*200 | 500*400*200 | ||||
Measuring Accuracy(μm) | Measuring Accuracy(μm) | 2.5 + L / 100 | 3.0 + L / 100 | ||||||
Repeatability (μm) | Repeatability (μm) | 2.5 | 3.0 | ||||||
Weight (kg) | 140 | 190 | 240 | 290 | |||||
Image and Measuring | Camera | 1.2M pixel HD digital camera | |||||||
Lens | 0.7-4.5X manual dented zoom lens with magnification signal feedback sensor | ||||||||
Magnification | 18 - 195X ( For reference only. With different camera and lens the magnification will be different. ) | ||||||||
Field of View | 8.1mm ~ 1.3 mm | ||||||||
Working distance | 80 mm | ||||||||
Linear scale resolution | 0.5μm ( 0.1μm Optional ） | ||||||||
Driving system | Driving system | X, Y, Z axis manual control, | |||||||
Illumination | Illumination | Programmable 4 sections LED ring surface light, parallel LED contour light 8 sections LED ring light, co-axial light , for option. | |||||||
L is measuring length(mm), the mechanical accuracy of Z-axis and focus accuracy is related to the surface of the workpiece.
**Magnification is approximate value, it is related to the dimension of monitor and resolution.
Field of view(mm) = (diagonal*Horizontal*Vertical)
0.5X or 2X objective is optional available, and realize image magnification: 13X~86X or 52X~344X.
SOFTWARE FUNCTION
INSPECT 3D VISION MEASURING SOFTWARE
The UNIMETRO INSPECT3D software is with user friendly UI, easy to learn,
powerful function, allows the users to achieve fast and precise measuring.
The software is offering full English language UI, also allows new language development.
◉ Input CAD file and measure
◉ Parts array and macro measuring
◉ Auto focus and height measuring
◉ Navigating function helps fast locating
◉ Powerful geometric measuring function
◉ Multiple data reports and graphical data output function
◉ Flexible user program
◉ Creating reference elements
◉ Powerful edge detecting function
◉ Supporting multiple external accessories
◉ Auto calculation of the elements geometrical tolerance
◉ Measuring complicated production fast and conveniently
