Electric screwdriver machine with auto screw feeder device for factory supply
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
Product Description
Product Description

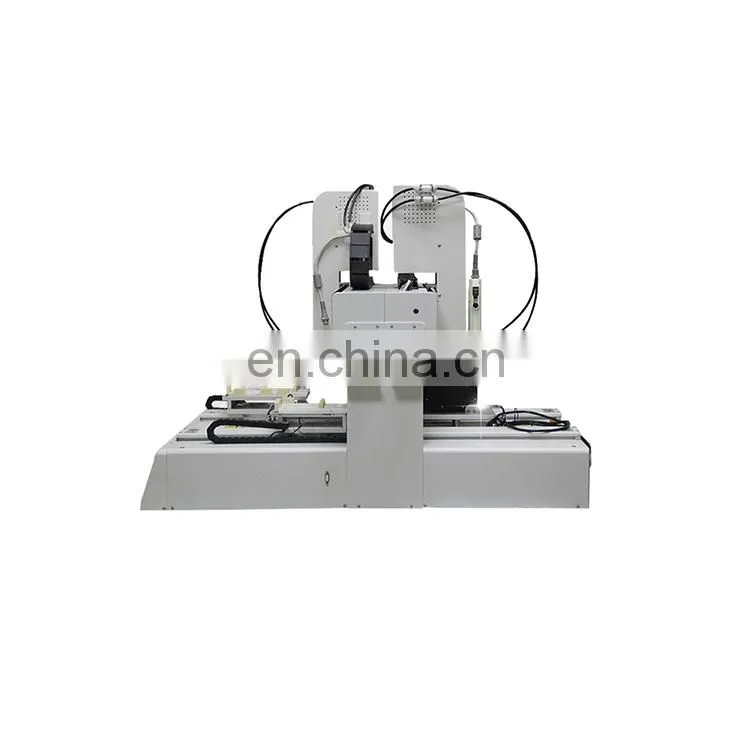

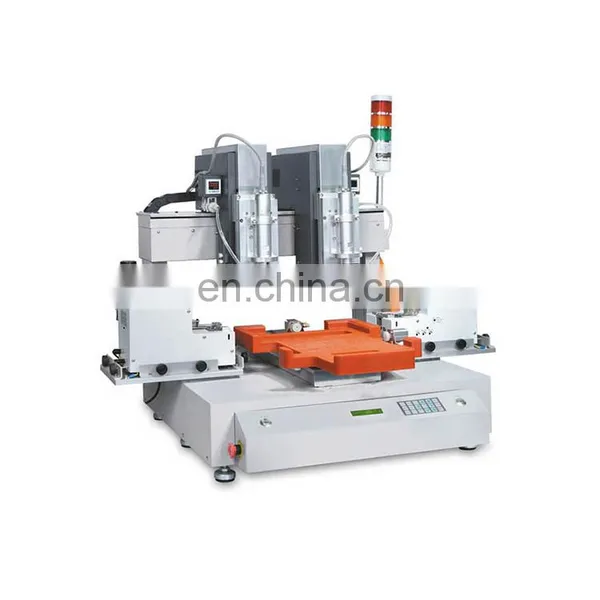

Electric screwdriver machine with auto screw feeder device for factory supply
The automatic screw machine is a machine that replaces the traditional manual tightening of screws. It has continuous feeding, constant torque, optional counting function, anti-leakage function, screw sliding and floating lock detection, which saves labor costs and improves production assembly efficiency. Commonly used in the electronics and machinery industries
Machine construction | The gross weight | About 50KG | ||||
Dimension | 55*65*80cm | |||||
Voltage | AC 100V 230V50~60HZ | |||||
Power | 1000W | |||||
Ambient Temperature | -20~40℃ | |||||
Control instructions | Host program control | Autonomous dedicated control system | ||||
Hand-held teaching box | Hand-held teaching box (touch screen) | |||||
The program input | Direct coordinate input or computer connection | |||||
The I/O signals | 8 INPUT / 8 OUTPUTS | |||||
Speed and accuracy | Positioning accuracy | X,Y:+/-0.08mm; Z: +/-0.01mm | ||||
Running speed | 600mm/sec(X-Y) | |||||
Screw feeding machine | Automatic motor for screw machine | Standard equipment | ||||
Range of application | X &Y Working Range | Customized | ||||
Z Working Range | Customized |
Features: | ||||||||
1. Wide universality, small in size, can cooperate with production line, convenient for product replacement. | ||||||||
2. High degree of automation, easy operation which the staff can master and debug quickly. | ||||||||
3. With intelligent inspection function, inspection miss locked,unstable locked,loose screw and so on. | ||||||||
4. Touch screen display or teach pendant programmable achieve more operations,Through a simple programming, can be put into production, convenient for production and management.. | ||||||||
5. The Y axis can be made into double-station(that is, double Y axis),so the operator can load alternately. | ||||||||
6. Accurate torsion, convenient adjustment, and the quality of lock is guaranteed. | ||||||||
7. With the function of leak detection, once a screw did not fill in place it can fill continually or start alarm processing. |
