Automatic Blow Type Desktop Screwdriver Machine

Automatic Blow Type Desktop Screwdriver Machine thumbnail-1
Automatic Blow Type Desktop Screwdriver Machine thumbnail-2
Automatic Blow Type Desktop Screwdriver Machine thumbnail-3
Automatic Blow Type Desktop Screwdriver Machine thumbnail-4
Automatic Blow Type Desktop Screwdriver Machine thumbnail-5
Automatic Blow Type Desktop Screwdriver Machine photo-1
Automatic Blow Type Desktop Screwdriver Machine photo-2
Automatic Blow Type Desktop Screwdriver Machine photo-3
Automatic Blow Type Desktop Screwdriver Machine photo-4
Automatic Blow Type Desktop Screwdriver Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Contact Supplier Request Quote Chat Now
Shenzhen Ruicheng Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

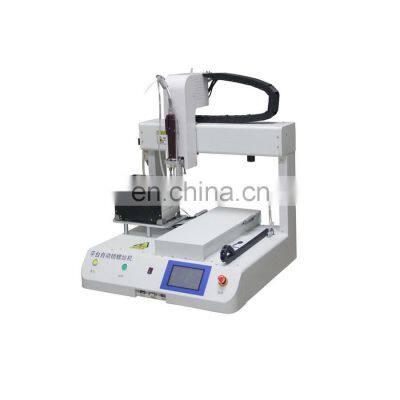

Automatic blow type desktop screwdriver machine

The automatic screw machine is a machine that replaces the traditional manual tightening of screws. It has continuous feeding, constant torque, optional counting function, anti-leakage function, screw sliding and floating lock detection, which saves labor costs and improves production assembly efficiency. Commonly used in the electronics and machinery industries
Machine construction
The gross weight
About 50KG
Dimension
55*65*80cm
Voltage
AC 100V 230V50~60HZ
Power
1000W
Ambient Temperature
-20~40℃
Control instructions
Host program control
Autonomous dedicated control system
Hand-held teaching box
Hand-held teaching box (touch screen)
The program input
Direct coordinate input or computer connection
The I/O signals
 8 INPUT / 8 OUTPUTS
Speed and accuracy
Positioning accuracy
X,Y:+/-0.08mm; Z: +/-0.01mm
Running speed
600mm/sec(X-Y)
Screw feeding machine
 Automatic motor for screw machine
Standard equipment
Range of application
X &Y Working Range
Customized
Z Working Range
Customized
Features:
1. Wide universality, small in size, can cooperate with production line, convenient for product replacement.
2. High degree of automation, easy operation which the staff can master and debug quickly.
3. With intelligent inspection function, inspection miss locked,unstable locked,loose screw and so on.
4. Touch screen display or teach pendant programmable achieve more operations,Through a simple programming, can be put into production, convenient for production and management..
5. The Y axis can be made into double-station(that is, double Y axis),so the operator can load alternately.
6. Accurate torsion, convenient adjustment, and the quality of lock is guaranteed.
7. With the function of leak detection, once a screw did not fill in place it can fill continually or start alarm processing.
Producrs Application
