High Speed Automatic Toilet Roll Paper Plastic Film Packing Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Speed Automatic Maxi Roll Paper Packing MachineNegotiableMOQ: 1 -
Automatic Small Maxi Roll Paper Shrink Packing MachineNegotiableMOQ: 1
-
High Speed Automatic Multi Rolls Toilet Paper Packing MachineNegotiableMOQ: 1
-
High Capacity Automatic Toilet Paper Packing MachineNegotiableMOQ: 1
-
Full Automatic Toilet Paper Plastic Film Packing MachineNegotiableMOQ: 1
Product Overview

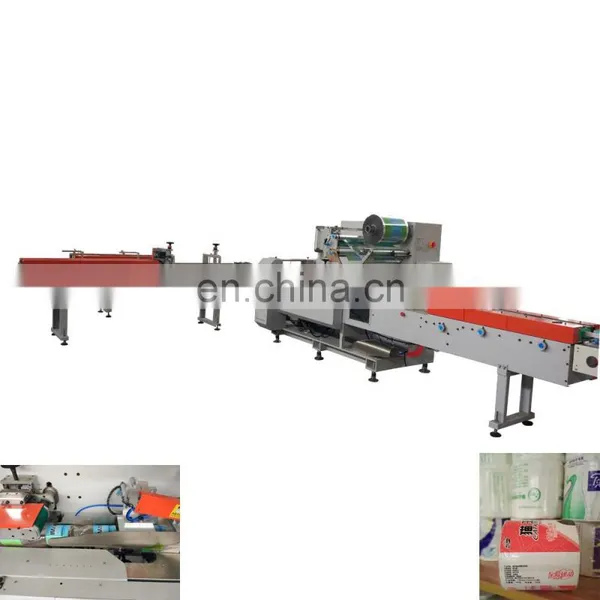

XY-503IZ High Speed Automatic Toilet Roll Paper Plastic Film Packing Machine
Outline
1. XY-AI-503IZ single roll paper automatic packing machine is suitable for single toilet paper roll with core or coreless, kitchen tissue, fully automatic packing.
1. XY-AI-503IZ single roll paper automatic packing machine is suitable for single toilet paper roll with core or coreless, kitchen tissue, fully automatic packing.
2. Paper feeding, film feeding, longitudinal sealing, cutting, coreless paper exhaust, reversing operation actions are driven by servo control method that has complete run function configuration, high efficiency, simple operation, specifications for wide range, quick changeover specifications, convenient maintenance low use cost and other the advantages.
3. Packing core toilet paper stable production speed up to 200 pcs/ min.
4. Packing coreless toilet paper stable production speed up to 150 / min. Only electronic setting, free conversion is done for tissue length between 80 mm to 195 mm.
Video Link: https://youtu.be/ifHmmLdCMJU
Video Link: https://youtu.be/ifHmmLdCMJU

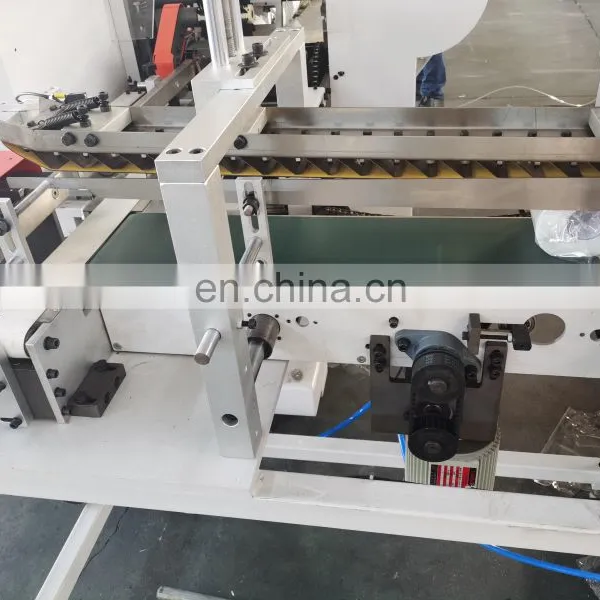

Details Images
Finished Products
Product Paramenters
Packing speed | 100-200packs/min |
Max width of film | 430mm |
Toilet roll dimension | Length:80-220mm Diameter:80-130mm |
Total Power | 15.5KW 380V 50HZ 3phases |
Weight | 1800KG |
Machine size(L*W*H) | 5500*3300*1600mm |
Material of film | BOPP, SPP, CPP(as usual, use CPP) |
Thickness of film | 0.018-0.03mm |
Related Products

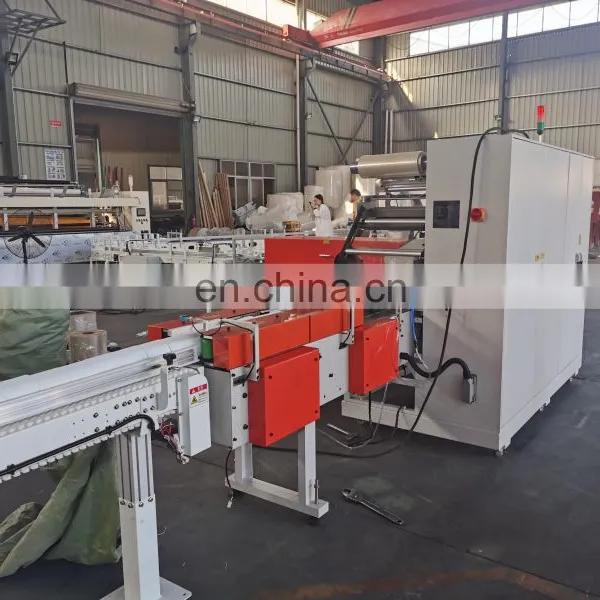

Workshop
Packing & Delivery
Company Profile
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Why Choose Us
Why choose machines from Fujian Xinyun Machinery Development Co.,Ltd?
1.Good quality of machine with reasonable price.
2.Good service:Any question from customer will by replied within 24 hours. For all the machines we sell, we will offer one-year guaranteen for free and all life-long maintenance. We deliver a USB dish of Operation Video with machine, it will help customers to work the machine easily.
After the machines arrive, the sellers shall send technicians to install the production line(if need).
And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportation and accommodation in buyer's city.
And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportation and accommodation in buyer's city.
