Handkerchief Paper Automatic Single Bag Packaging Machine

  Handkerchief Paper automatic single bag packaging machine

   XY-BT-268

Function Characteristic:

1.  Adopt with advanced PLC control, man-machine interface operation and stepless frequency converter, which possesses stable function, high automation and simple operation. Paper feeding, edge sealing angle rolling, outputting and label sticking can be conducted at once time.
2.  Adopt Auto oil injecting cycled lubrication system is adopted to prolong the usage life of the mechanical parts to a large extent; Advanced photo electricity elimination is mounted for much more beautiful packaging; Intellective term-controlling unit for flexible temperature control.
3.  Mix the auto tracking out of order and warning system , and show in real time through the touch-sensitive screen, can find out the trouble reason and trouble position rapidly, deal with failure in time.
4.  High-accuracy Omron follows the system photoelectrically track.

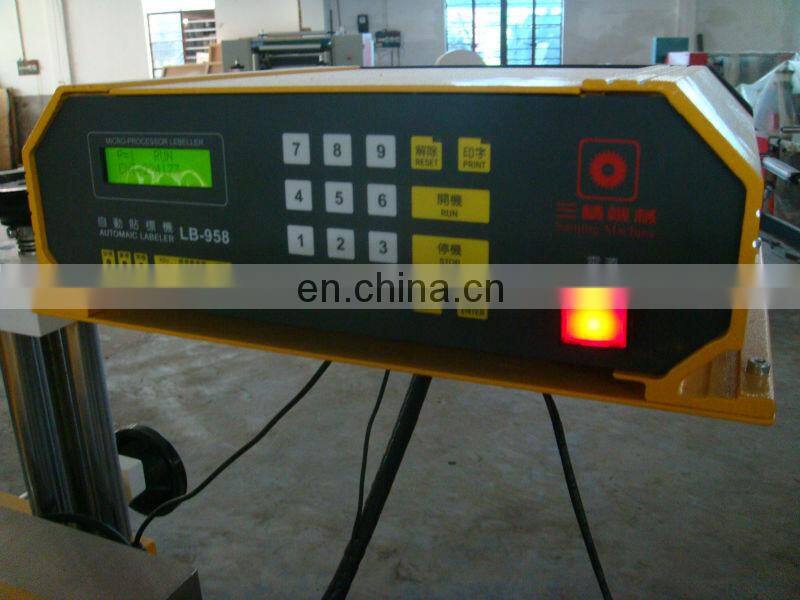

5. Outside pack membrane tear mouthfuls of glue can stick synchronous automatically, date printer and label sticker (can be added)

Technical specification:

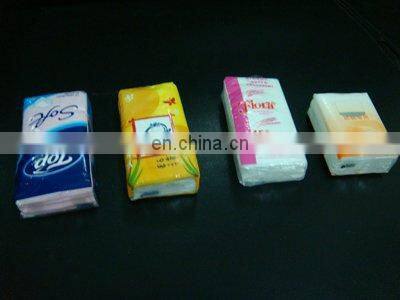

1.The size of packing of product:

Standard paper handkerchief 106mm *53mm *26mm number : 10 sheets

Mini type paper handkerchief 72 mm*53mm*26mm 10 sheets

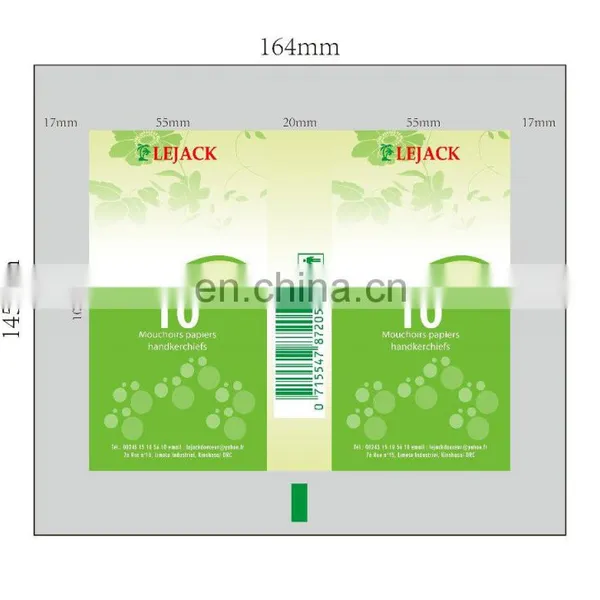

2.Specification of packing film :

Standard paper handkerchief 150mm

Mini paper handkerchief 116 mm

3.Packing speed (package /minute): 30-80

4..Air pressure: 0. 3~0. 4mpa

5.Power: 380V 50HZ

6.Over size: 3600 mm*2700 mm*1900 mm

7.Weight: 1600 KG
