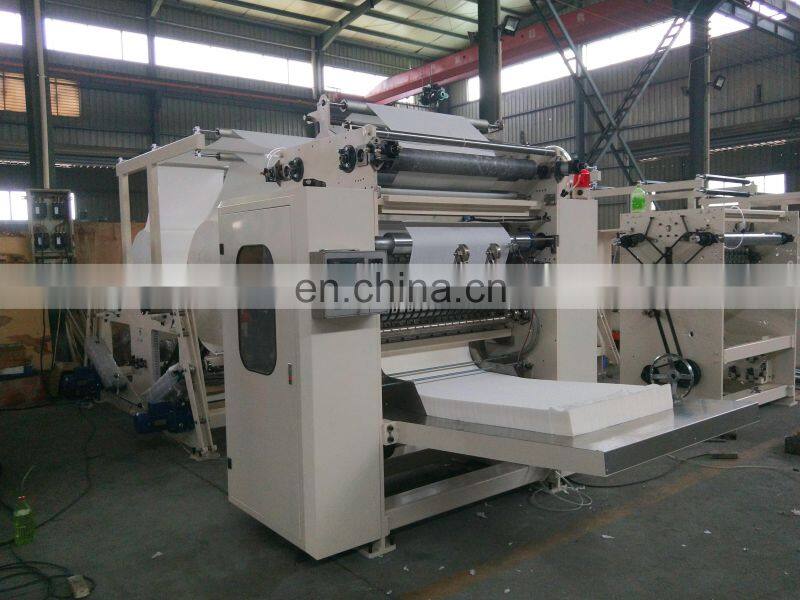

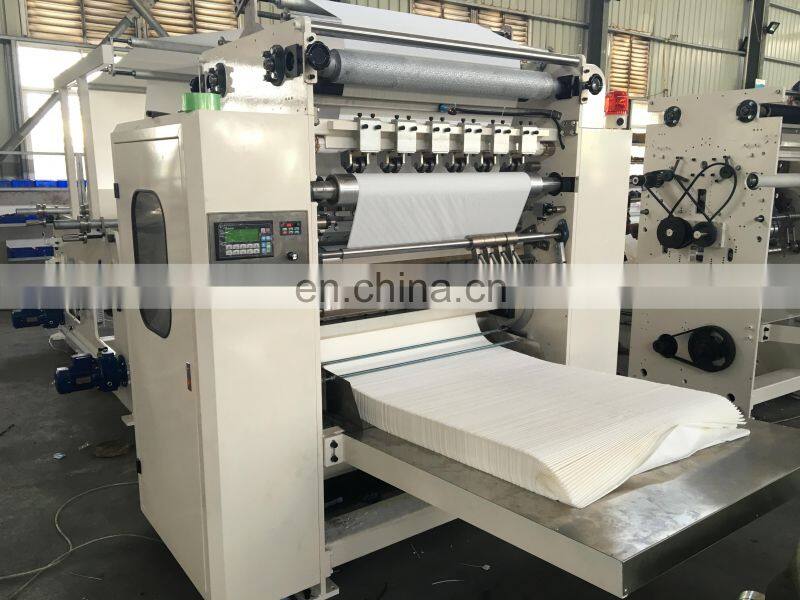

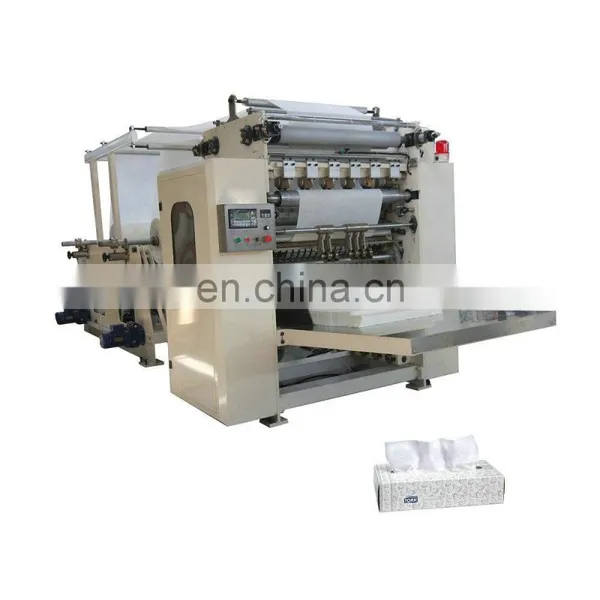

Automatic V fold facial tissue paper making machine XY-GU-20A
This machine is for converting Facial Tissue Paper,enjoys automatic Embossing,Folding,Cutting and Counting function.
We can make the machine with 2-10 output lines and offer customize service.
Facial Tissue Folding Machine Overview

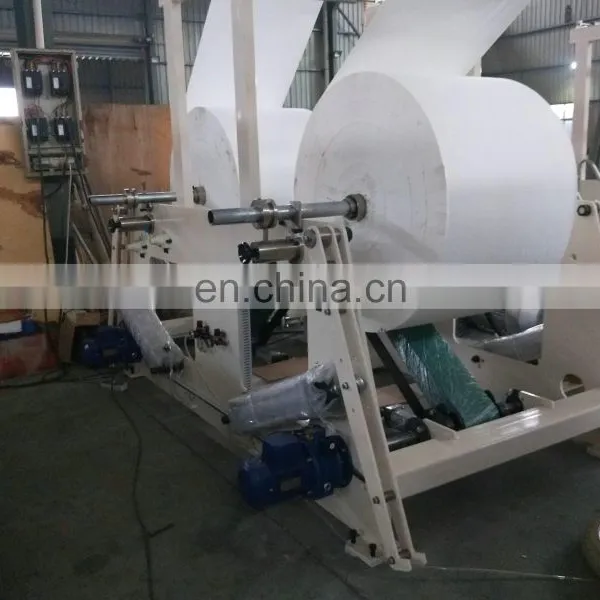

1. Jumbo Roll stander with 2 units
2. Paper Tension Control system
3. Embossing roll pattern design customize
4. Edge Embossing roll assistance
5. Digital Counting sensors readout
6. Product Output panel
Professional Facial Tissue Machine Features | ||||||||||||||
Machine Model | XY-GU-20A | |||||||||||||
Speed(sheets/minute) | 2 Lines | 3 Lines | 4 Lines | 5 Lines | 6 Lines | 7 Lines | 8 Lines | |||||||
1,600 | 2,400 | 3,200 | 4,000 | 4,800 | 5,600 | 6,400 | ||||||||
Design Product Capacity | 800-1,200 sheets/line/minute | |||||||||||||
Jumbo Roll Size | 1400mm(W) 1200mm(Ø) | |||||||||||||
Jumbo Roll Material Qualify | Jumbo Roll Paper Core: 3 inches Paper Material:100% pure paper Paper Basic Weight: 12~18 gsm/1 ply x2 | |||||||||||||
Interfold Style | V Fold | |||||||||||||
Unfold Dimension(L*W) | 200*200mm | |||||||||||||
Interfold Dimension(L*W) | 100*200mm | |||||||||||||
Controlling System | Frequency drive | |||||||||||||
Air compressor | Prepared by buyer | |||||||||||||
Power | 7.5 KW (380V 50Hz 3 Phase) | |||||||||||||
Overall size | 5800*2400*2000mm | |||||||||||||
Weight | 2-6 T | |||||||||||||
Why needs embossing? (Pattern selected by the customer)
Embossing enhances hand feel and absorbency, meaning fewer tissue paper used per hand dry.
Machine Parts
Name: Cutting blades
Original: China
We can design cutting blades from 2 lines to 10 lines.
Main Features
Name: Embossing device
Original: China
We can design steel to steel full-embossing devices and edge-embossing devices.
Machine Parts

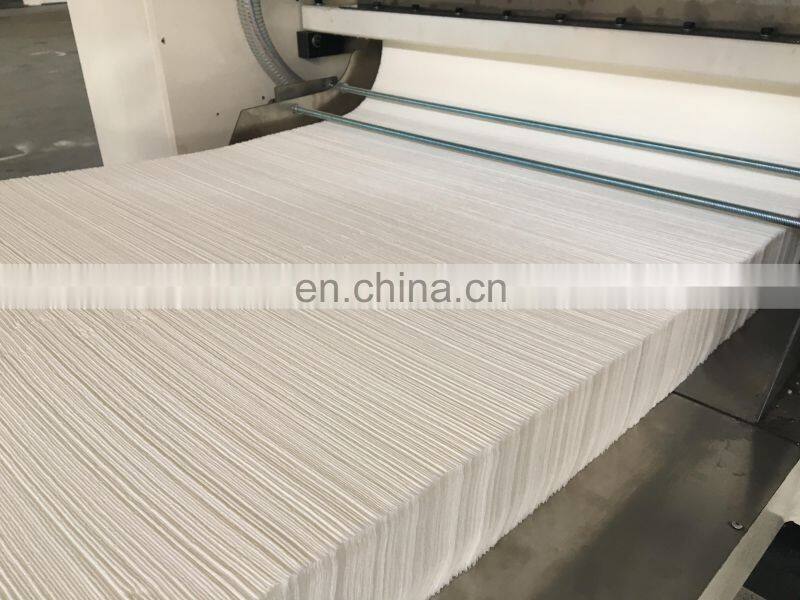

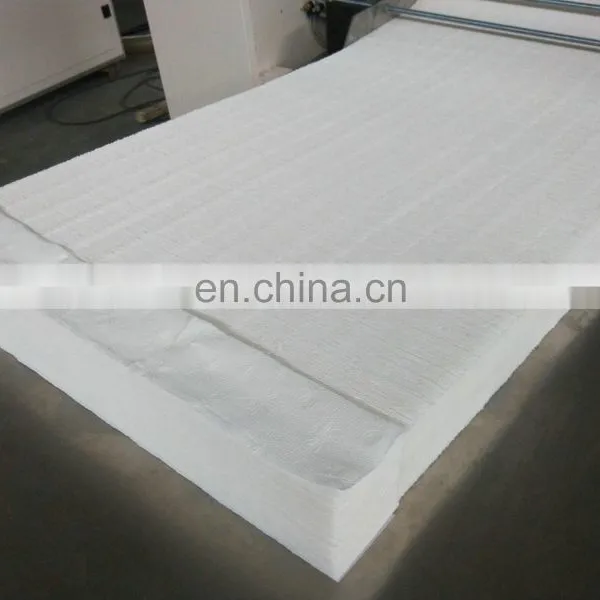

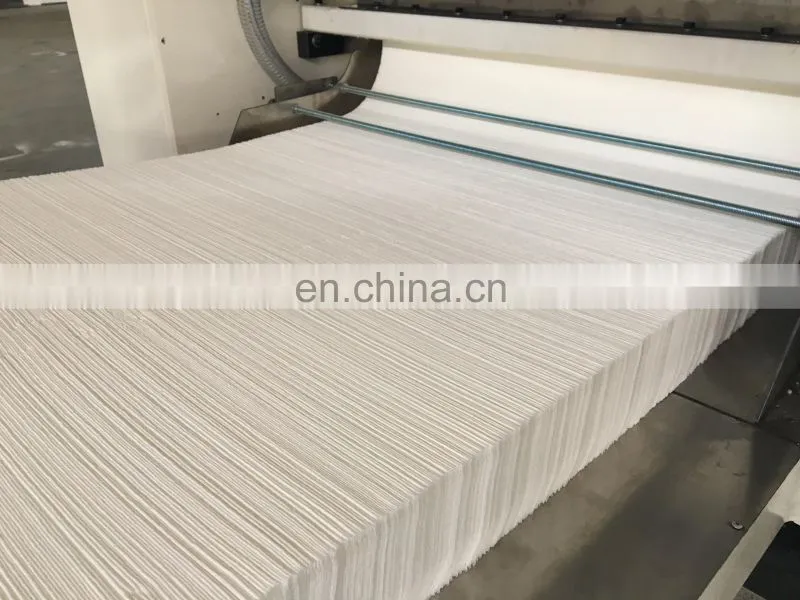

Name: Output in order
Original: China
Automatic counting and easy for packing.

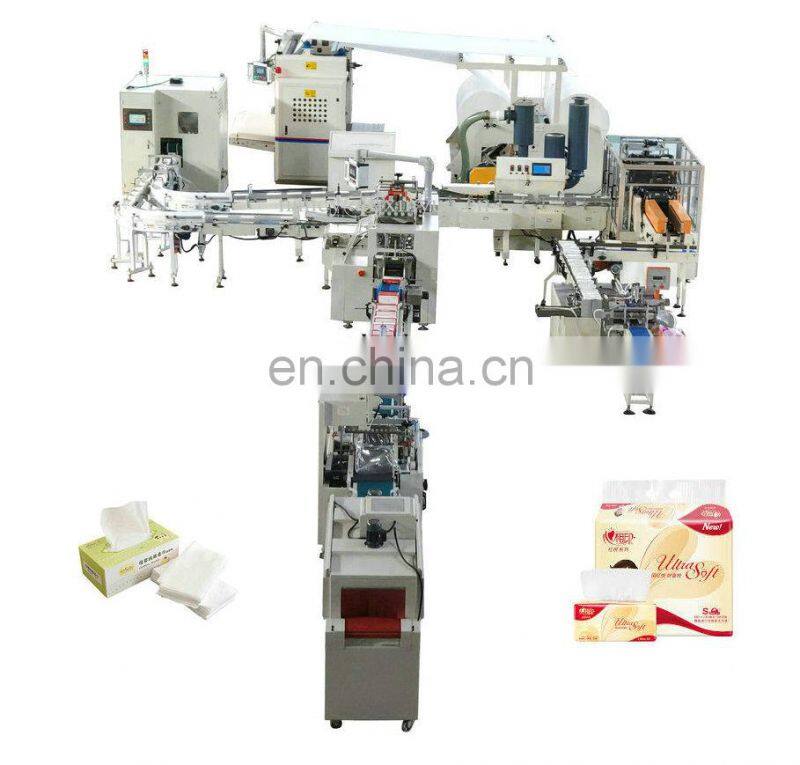

You may like Semi-automatic or full-automatic Facial Tissue Production line
The normal package is wooden box(Size: L*W*H). Spraying antirust oil on machine surface and cover PE film,then packed by seaworthy Export Packing Wooden Pallet, ensure that the goods will safely arrive at the erection or construction site without any damage.
Q: Are you trading company or manufacturer
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
