CE Automatic interfold 4 Lane Soft Towel Facial Tissue Paper Making Machine
- 1000 per Month
- T/T Credit Card
- Best quality factory price jumbo roll paper machine
- Toilet Paper Cutter/Kitchen Towel Cutting Machine Price with High Performance
- N Fold Hand Paper Towel Dispenser Packaging Machinery Manufacturer
- Automatic paper recycling machine for produce craft paper from www.frdpapermachine.com
- Durable and sturdy spiral paper tube machine
- Durable and sturdy corner protectors
Product Description
XY-GU-20A CE Automatic interfold 4 Lane Soft Towel Facial Tissue Paper Making Machine
This machine is working for facial tissue paper without warpping and packing
Compoent of machine consist of Automatic;Embossing ;Folding ;Cutting;Couting function
1. Automatic counting points a whole row output
2. Helical blade shear, vacuum adsorption folding
3. Step-less speed regulation unwind and can adapt to rewind high-low tension paper material
4. Adopt PLC computer programmable controller, pneumatic paper and easy to operate;
5. Frequency conversion control, saves energy.
6. The product width is adjustable, to meet different market requirement.
7. Supporting paper rolling pattern device, pattern obvious, flexible to market demand. (The embossing pattern is chosen by the customers ).
8. It can make "V"type single layer towel and two layers glue lamination .(Optional)
Technical Parameter
Basic information of machine | ||
Model | XY-GU-20A | |
Main Power (KW) | 7 - 15KW (380V 50Hz 3 Phase) | |
Weight (T) | 3 - 7 | |
Overall size (mm) | L(5800)xW(2400)xH(2000) | |
Embossing unit | Steel to steel | |
Slitting unit | Pneumatic slittingPneumatic slitting | |
Pneumatic system | 3 HP air compressor ,mini pressure 5kg/cm2PA | |
Driving system | Timing belt | |
Design Product Capacity | 800-1,200 sheets/line/minute | |
Speed(sheet/minute) | Min:2 lines/1,600 Max:8 lines/6,400 | |
More detial informations | ||
Vacuum suction unit | 22KW Fan | |
Jumbo roll paper frequency motor | 3.0KW(2sets) | |
Interfold Style | "V"type | |
Folded size of finished products | 100*200±2mm | |
Unfold size of finished products | 200*200±2mm | |
Jumbo Roll Size | 1400mm(W) 1200mm(Ø) | |
Jumbo Roll Material limite | Paper Basic Weight: 12~18 gsm/1 ply | |
Paper Material:100% pure paper | ||
Jumbo Roll Paper Core: 3 inches |
The max width of jumbo roll paper | 2Lines | 3 Lines | 4 Lines | 5Lines | 6Lines | 7Lines | 8lines | ||||||
420mm | 680mm | 840mm | 1050mm | 1260mm | 1470mm | 1680mm | |||||||
Electricity power for | 3.0KW | 3.0KW | 4.0KW | 5.5KW | 5.5KW | 7.5KW | 7.5KW | ||||||
Vacuum blower | 7.5KW | 11KW | 15KW | 15KW | 22KW | 22KW | 25KW | ||||||
Production speed | 60-100 m/min |
1. Jumbo Roll stander with 2 units
2. Paper Tension Control system
3. Embossing roll pattern design customize
4. Edge Embossing roll assistance
5. Digital Counting sensors readout
6. Product Output panel

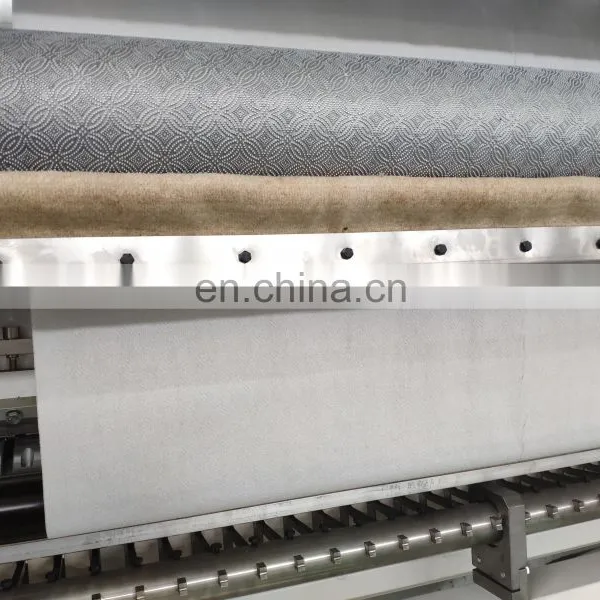

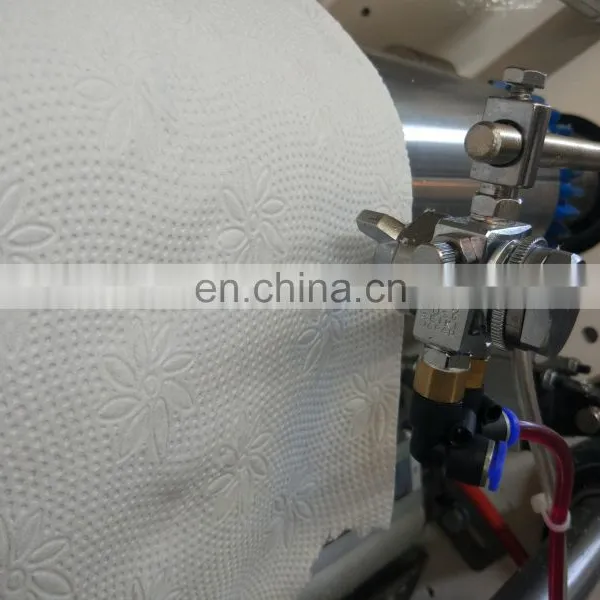

Embossing device
Slitting device

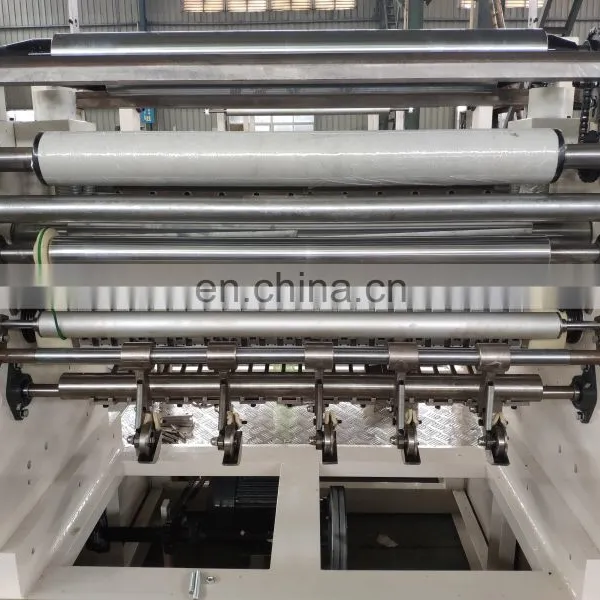

Folding device
Automatic facial tissue paper poduction line
XY-GU-A-B
XY-GU-A-B
XY-GU -281
Full Automatic Facial Tissue Cutting Machine
XY-BT-298
High speed automatic facial tissue paper packing machine
XY- GU -26
Semi-automatic soft tissue middle bag packing machine
Other machine
XY-GU-388
High Speed Full Automatic Facial Tissue Box Packing Machine
XY-TQ-B
High speed automatic rewinding toilet paper making machine
XY-OQ-7000A
New condition Full-automatic folding napkin paper making machine
1. What can I get during I buy the paper machine from your corporation?
First of all, we will provide best serves sincerely to our client, then we'll offer a good quality paper machine at reasonable prices to you
second The prices are clear and quite good .there is no haggling as well. So you don't have to worried about you would get ripped off or anything.
2. How long does it take freight transport to the final destination from the city?
Regularly!The freight transport would take time about 1-60 days.
3. Is there have any engineers to instruct me on how to operate the machine?
Of cause! I'll send a professional engineer to instruct your workers on how to operate and maintain the machine in your local factory!
4. What are your terms of payment?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
