Product Overview

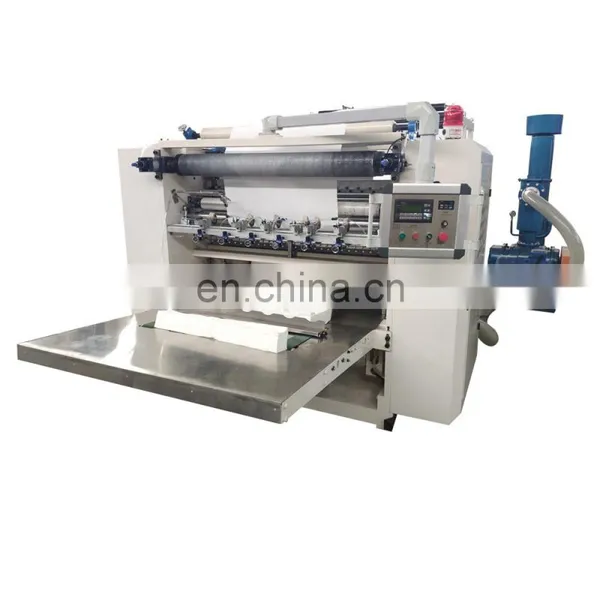

XY-GU-20A Automatic Facial Tissue Paper Manufacturing Machine
Box drawing type facial tissue machine use tissue jumbo roll to Process folded into "V" type paper processing equipment. The machine adopts the vacuum adsorption principle and auxiliary manipulator folding.
Function and characteristics
1. Automatic counting points a whole row output
2. Helical blade shear, vacuum adsorption folding
3. Stepless speed regulation unwind and can adapt to rewind high-low tension paper material
4. Adopt PLC computer programming control, pneumatic paper and easy to operate;
5. Frequency conversion control, saves energy.
6. The product width is adjustable, to meet different market requirement.
7. Supporting paper rolling pattern device, pattern obvious, flexible to market demand. (The embossing pattern is chosen by the
customers ).
8. It can make “V”type single layer towel and two layers glue lamination .(Optional)
VIDEO LINK: https://youtu.be/CQ1YqAeXSZY
1. Automatic counting points a whole row output
2. Helical blade shear, vacuum adsorption folding
3. Stepless speed regulation unwind and can adapt to rewind high-low tension paper material
4. Adopt PLC computer programming control, pneumatic paper and easy to operate;
5. Frequency conversion control, saves energy.
6. The product width is adjustable, to meet different market requirement.
7. Supporting paper rolling pattern device, pattern obvious, flexible to market demand. (The embossing pattern is chosen by the
customers ).
8. It can make “V”type single layer towel and two layers glue lamination .(Optional)
VIDEO LINK: https://youtu.be/CQ1YqAeXSZY
Product Specifications
Machine Model |
XY-GU-20A |
Unfold size of finished products |
200*200±2mm |
Folded size of finished products |
100*200±2mm |
Diameter of raw material |
Φ1200mm(Other size can be specified) |
Diameter of raw material inner core |
3inches(76.2mm) (Other size can be specified) |
Daily Output (8 hours) |
2000Kg |
Embossing unit |
Steel to steel |
Slitting unit |
Pneumatic slitting |
Power |
4.0KW Main motor |
Vacuum suction unit |
15KW Fan (Taiwan brand) |
Pneumatic system |
2 Stands（Need to be specified） |
Pneumatic System |
3 HP air compressor ,mini pressure 5kg/cm2PA |
Driving system |
Timing belt |
Overall dimension |
6000*2000*1850mm |
Weight |
3.0T |

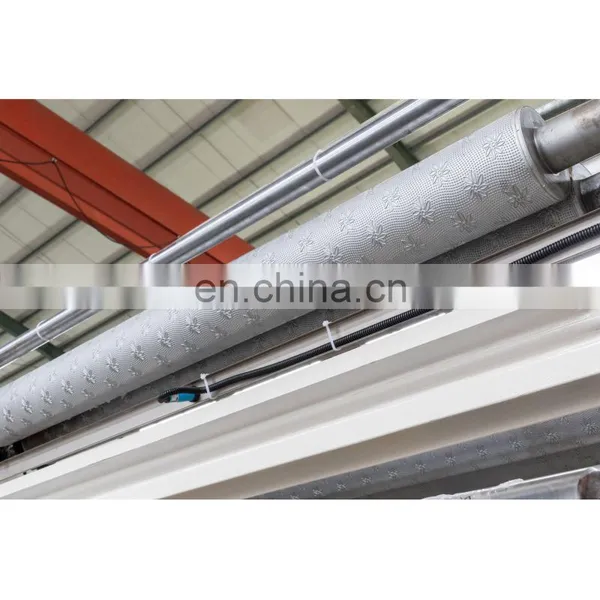

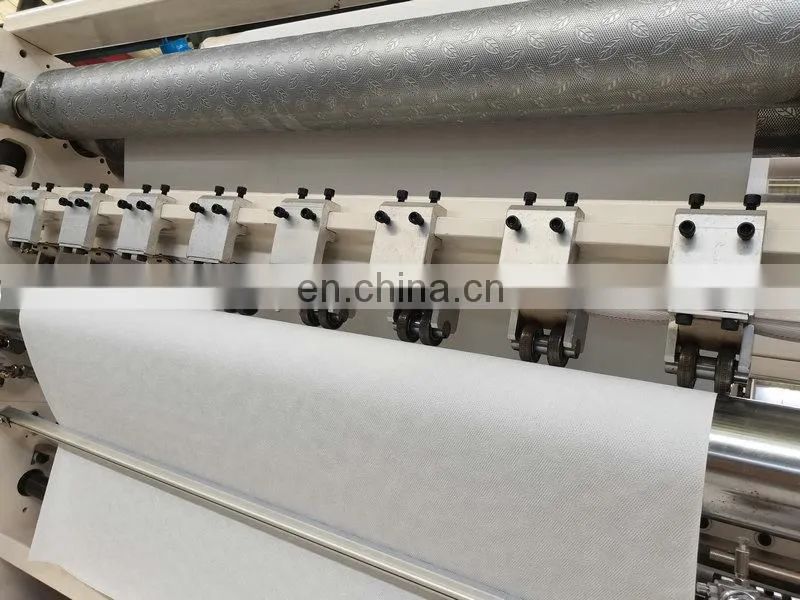

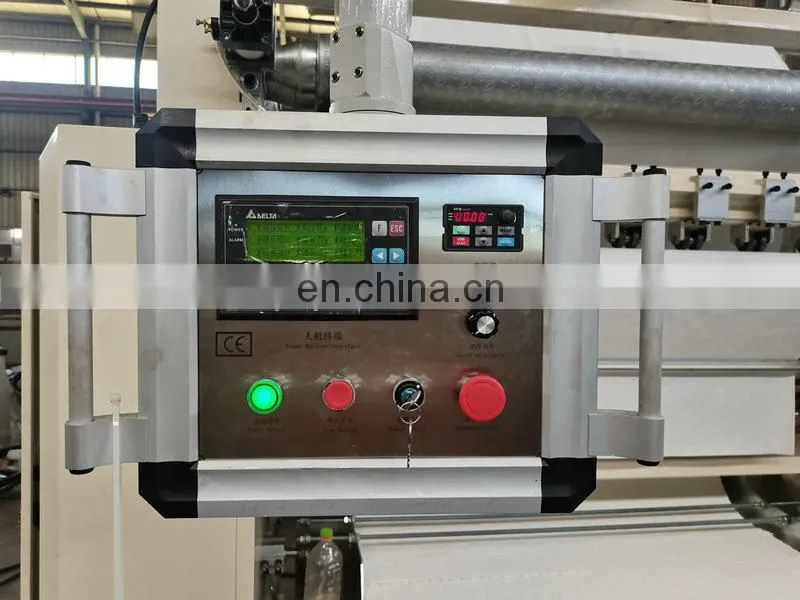

Embossing device Plc

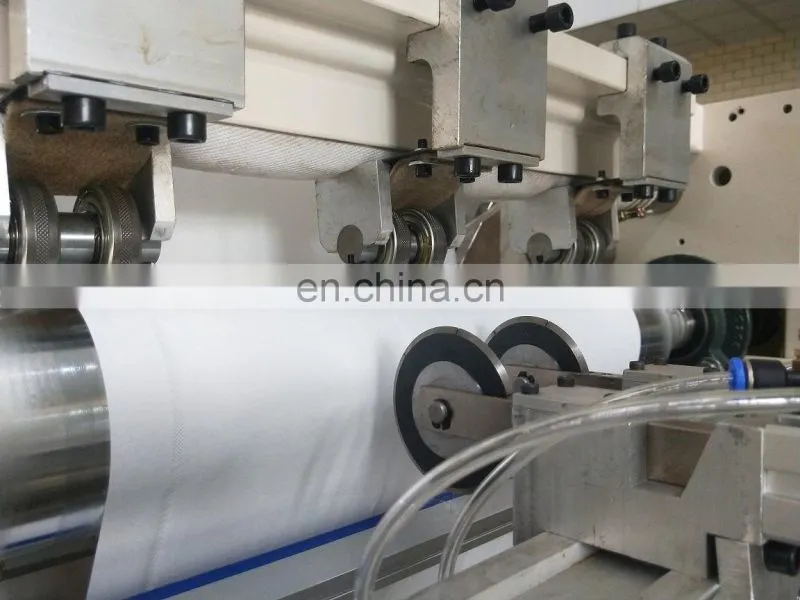

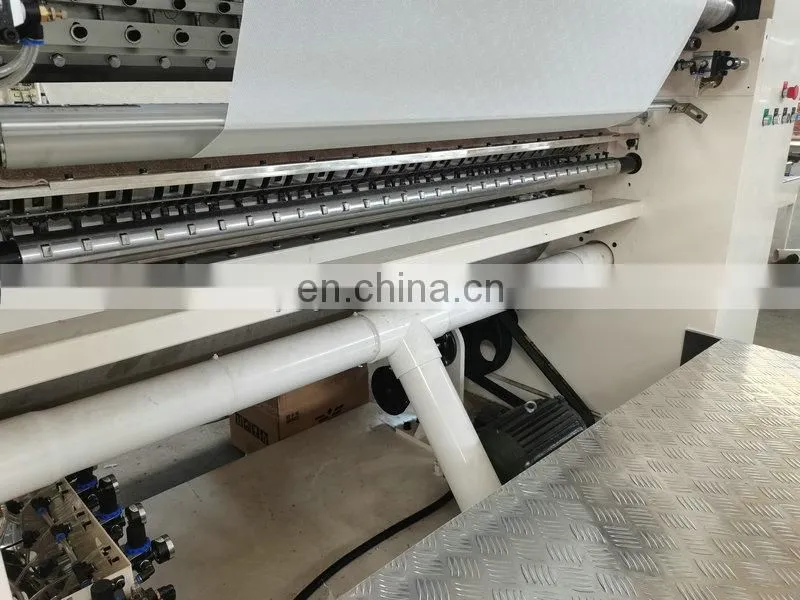

Folding deivce Slitting round knife

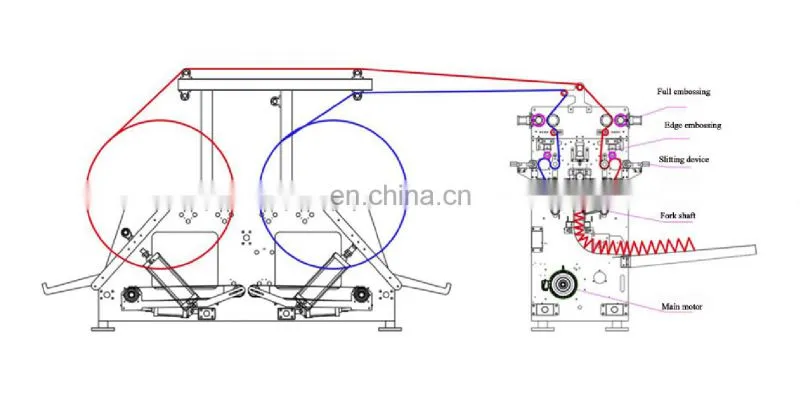

Drawing
Embossing
XY-GU-A-B/D Automatic facial tissue machinery production line
Automatic facial tissue production line is consist of facial tissue folding machine, single channel log saw cutting machine,single
bag packing machine,semi automatic facial tissue bundle packing machine,automatic facial tissue carton box packing
machine,automatic multi boxes facial tissue shrink packing machine and conveyor belt.
bag packing machine,semi automatic facial tissue bundle packing machine,automatic facial tissue carton box packing
machine,automatic multi boxes facial tissue shrink packing machine and conveyor belt.
