Products Description
Main machine features:

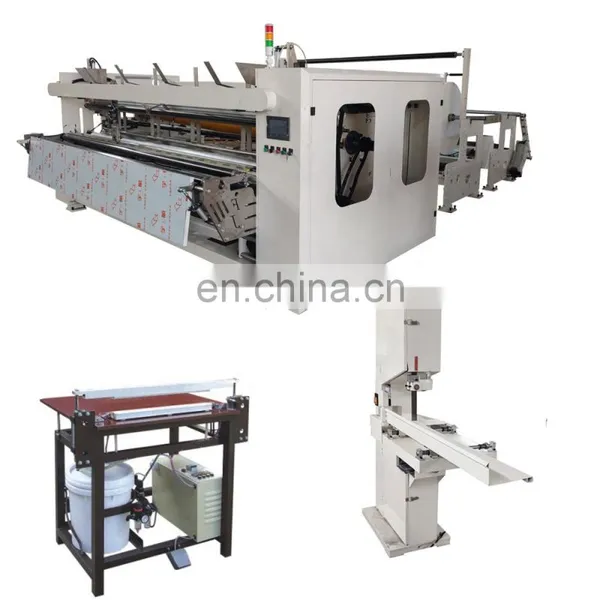

This production line consists of Wall Type Automatic Rewinding Machine, manual Band Saw,semi automatic Packing Machine and paper core machine.
This production line consists of Wall Type Automatic Rewinding Machine, manual Band Saw,semi automatic Packing Machine and paper core machine.
Vodeo Link: https://youtu.be/Le3GR4Zs0UE
https://youtu.be/jgQ8Vb4UwZo
XY-TQ-2800B Wall Type Automatic Rewinding Machine
Functions and Features
1. This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high
speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so
reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric
fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted
independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.
Functions and Features
1. This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high
speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so
reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric
fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted
independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.
Video Link： https://youtu.be/ytRj9VTSUeI
https://youtu.be/1y42GDIz7sA
https://youtu.be/yxkPLY4jQVI
Jumbo Roll Width |
2800mm (Other size can be specified) |
Jumbo Roll Diameter |
Φ1200mm(Other size can be specified) |
Jumbo Roll Inner Core Diameter |
3inches(76.2mm) (Other size can be specified) |
Perforation Distance |
4 anvil Blades(115mm)(Other size can be specified) |
Finished Product Diameter |
Φ80~φ280mm |
Finished Product Inner Core Diameter |
φ38~φ76mm |
Production Speed |
180-230 m/min |
Jumbo roll paper stand |
1 or 3 Stands(Need to be specified） |
Pneumatic System |
3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user) |
XY-AI-300 Manual toilet paper band saw cutting machine
Video link: https://youtu.be/0Tq2WlD8bHc
XY-AI-398B Semi Automatic Multi Rolls Packing Machine
Video Link：https://youtu.be/9w9d7Df9Yzk
Related Products
XY-TQ-A-H Automatic maxi roll paper making machine production line
Video Link: https://youtu.be/VcoDKk6BJM0
Video Link: https://youtu.be/VcoDKk6BJM0
XY-TQ-A-G Low price automatic small toilet paper machine production line
Video Link:
https://youtu.be/oinyh6kf1Zo
XY-SD-A Autoamtic paper core making machine
Video Link： https://youtu.be/RmS_34TsYYo
Packing & Delivery
Packing Details : Packing, standard export wooden pallet
Delivery Details : 50-60 days after order
