Product Overview

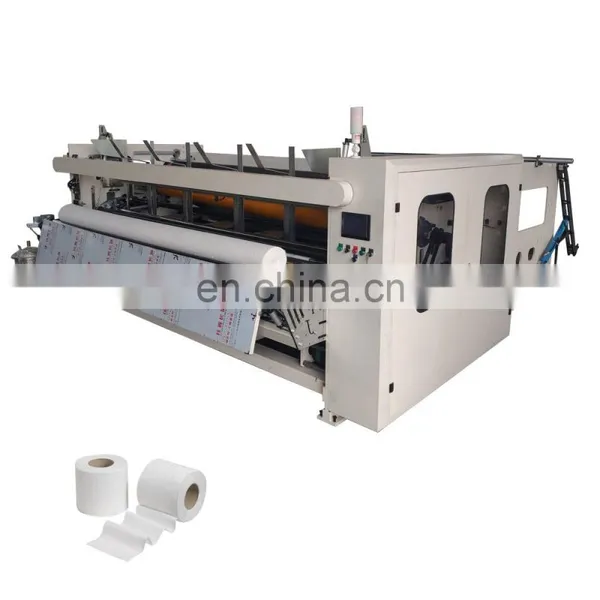

XY-TQ-B Automatic 2 Plys Toilet Paper Roll Making Machine
Outline
Automatic toilet paper rewinding machine is for toilet paper roll processing. Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients’ requirements. The production process is: Unreeling — Embossing —Perforating— Lamination— Rewinding— Tail-gluing— Edge trimming---Automatic core loading.
Video Link: https://youtu.be/xm3SCLiV9hU
Automatic toilet paper rewinding machine is for toilet paper roll processing. Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients’ requirements. The production process is: Unreeling — Embossing —Perforating— Lamination— Rewinding— Tail-gluing— Edge trimming---Automatic core loading.
Video Link: https://youtu.be/xm3SCLiV9hU
Function & Features
1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.

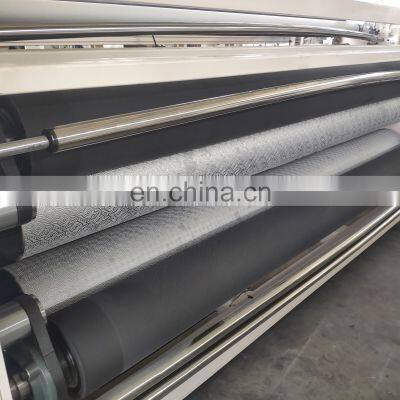

6. Embossing Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns
7. Adopt jogging switches for wearing the paper, easy and safe to operate.

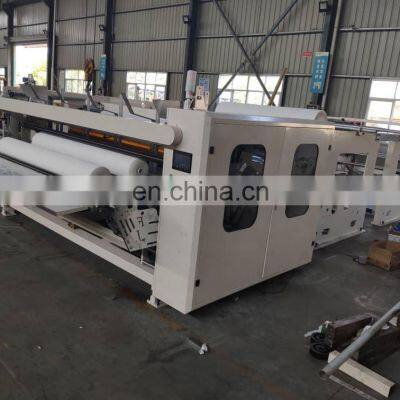

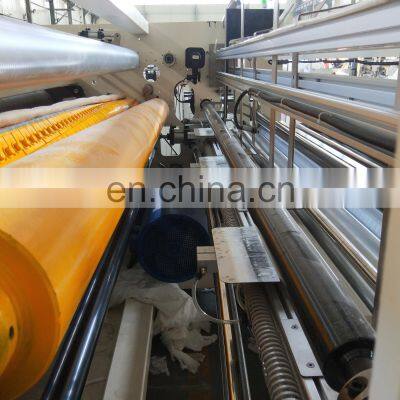

Details Images

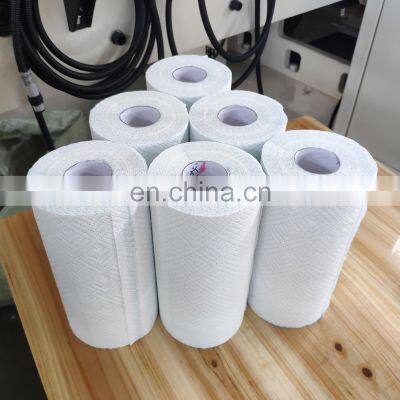

Finished Products
Product Paramenters
Jumbo roll max width | 1750mm (Other size can be specified) |
Jumbo roll diameter | Φ1100mm |
Jumbo roll inner core diameter | 3inches(76.2mm) |
Finish product diameter | φ90-φ280mm |
Finish product Inner core diameter | φ38-φ76mm |
Perforation distance | 120-150mm |
Production speed | 180-230m/min |
PLC | INVT |
Pneumatic system | 3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa（Provide by user） |
Unwinding transmission | Variable stepless speed regulation |
Rewinding Unit | With core or coreless |
Related Products
XY-AI-280 Automatic Double Channel Roll Paper Log Saw Cutting Machine
XY-503IZ Automatic Single Roll Paper Packing Machine
XY-AI-500 Automatic Maxi Roll Paper Cutting Machine
XY-TN-269 Automatic Maxi Roll Shrink Wrapping Machine
Workshop
Packing & Delivery
Company Profile
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Why Choose Us
Why choose machines from Fujian Xinyun Machinery Development Co.,Ltd?
1.Good quality of machine with reasonable price.
2.Good service:Any question from customer will by replied within 24 hours. For all the machines we sell, we will offer one-year guaranteen for free and all life-long maintenance. We deliver a USB dish of Operation Video with machine, it will help customers to work the machine easily.
After the machines arrive, the sellers shall send technicians to install the production line(if need).
And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportation and accommodation in buyer's city.
And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportation and accommodation in buyer's city.
