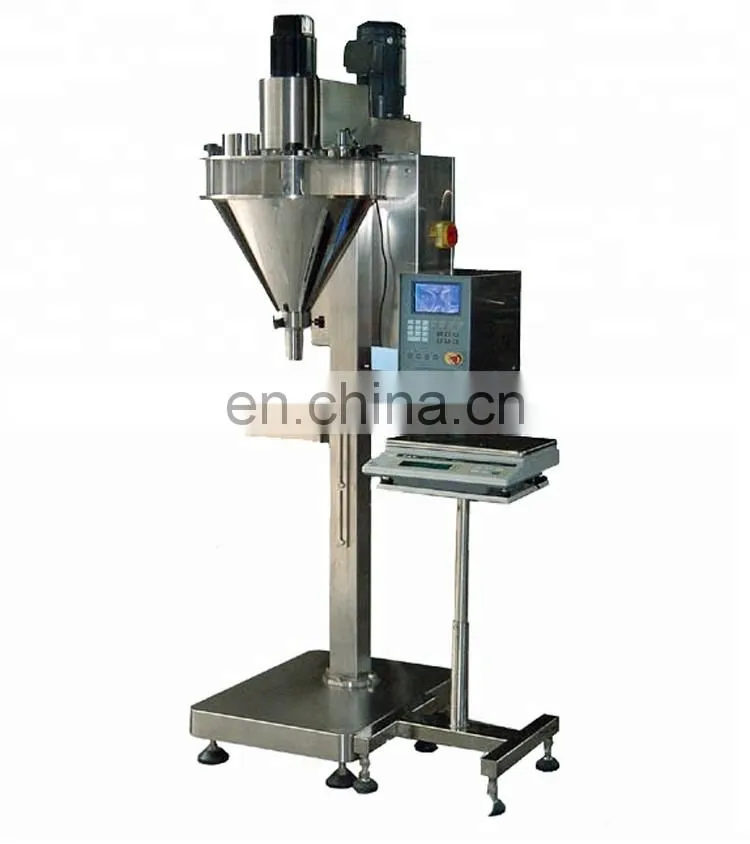

Automatic Small Powder Auger Filler for VFFS
Application Range:
Milk powder, protein powder, cocoa powder, coffee powder, additives, powder, small granules medicines, veterinary drugs, glucose, spices, solid beverage, toner, toilet powder, pesticides and so on.
Main Technical Parameter:
Model |
RZ-DH -3A-100 |
RZ-DH-3A-500 |
RZ.DH-4A-200 |
Hopper |
Quick disconnecting 25L Enlarged size 35L |
Split hopper 25L Enlarged size 35L |
Siamese 38L |
Packing weight |
1 ~ 200g 1 ~ 500g(Enlarged size) |
1 ~ 200g 1 ~ 500g(Enlarged size) |
1 ~ 200g |
Packing Accuracy |
<100g, <±2%;100 ~ 500g, <±1% |
<100g, <±2%;100 ~ 500g, <±1% |
<100g, <±2%;100 ~ 200g, <±1% |
Filling Speed |
40 ~ 120 times per min |
40 ~ 120 times per min |
80 ~ 240 times per min |
Power Supply |
3P AC208V ~ 415V 50/60Hz |
3P AC208V ~ 415V 50/60Hz |
3P AC208V ~ 415V 50/60Hz |
Total power |
1.2Kw 1.7Kw(Enlarged size) |
1.2KW 1.7Kw(Enlarged size) |
1.9KW |
Total Weight |
130kg |
140kg |
160kg |
Overall Dimension |
860×460×880mm |
860×520×880mm |
900×800×1100mm |
Model |
RZ-DH-3B-101 |
RZ-DH-3B-501 |
RZ-DH-3B-601 |
Hopper |
Quick disconnecting 50L |
Split hopper 50L |
Split hopper 65L |
Packing weight |
10 ~ 2000g |
10 ~ 2000g |
10g ~ 5kg |
Packing Accuracy |
<100g, <±2%;100 ~ 500g, <±1%;>500g, <±0.5% |
<100g,<±2%;100 ~ 500g, <±1%;>500g, <±0.5% |
<100g, <±2%;100 ~ 500g, <±1%;>500g, <±0.5% |
Filling speed |
40 ~ 120 times per min |
40 ~ 120 times per min |
40 ~ 120 times per min |
Power supply |
3P AC208V ~ 415V 50/60Hz |
3P AC208V ~ 415V 50/60Hz |
3P AC208V ~ 415V 50/60Hz |
Total power |
1.9Kw |
1.9Kw |
2.4Kw |
Total Weight |
200kg |
220kg |
250kg |
Overall Dimension |
1060×600×1100mm |
1060×650×1100mm |
1125×700×1200mm |
Other Selectable Auxiliary Equipment:
Our Machine:
| For more information, please click. | CONTACT US > |
