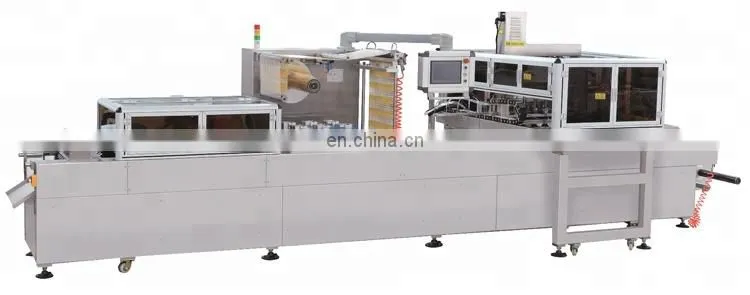

Food Vacuum Skin Packaging Machine
Application Range:
Main Technical Parameter:

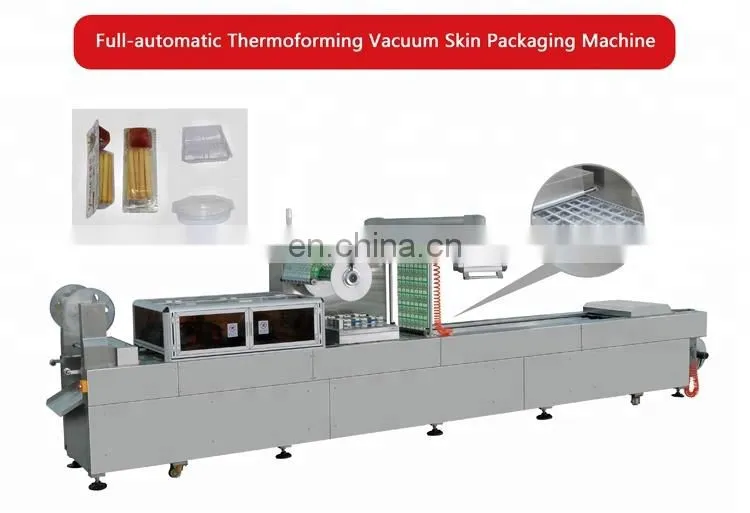

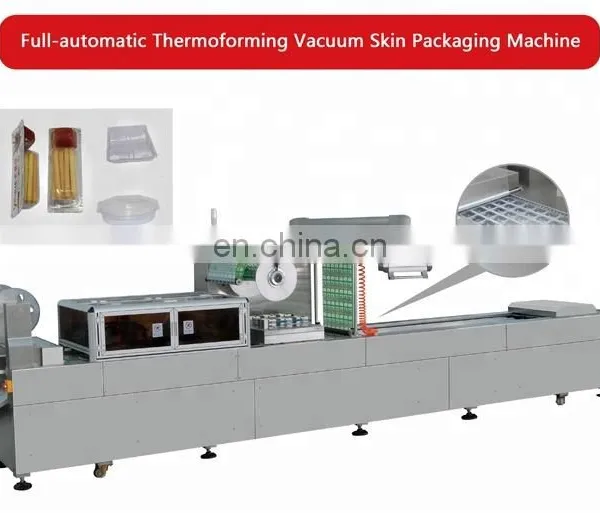

Full-automatic Thermoforming Vacuum Skin Packaging Machine | ||
| Equipment Model | RC-420S | RC-520S |
| Width of Top Film | 398mm | 498mm |
| Width of Bottom Film | 424mm | 524mm |
| Vacuum | ≤200Pa | |
| Compressed Air | ≥0.6Mpa | |
| Air Consumption | ≥0.6m3/min | |
| Air Filling Pressure | ≥0.2Mpa | |
| Punching Speed | 4-6p/min | |
| Air Filling Connector | Ø16PU tube | |
| Cooling Water | ≥0.15Mpa | |
| Power Supply | 380V/50HZ | |
| Total Power | 12~18KW | |
| Machine Dimension | 6850*1150*2000mm | |
| Machine Weight | 2250kg | 2450kg |
Detail Image:
Other Series Skin Packaging Machine
Main Functions And Features:
1.Mitsubishi PLC controller, large true color HMI touch screen;
2.Japan Yaskawa servo motor, high speed and high precision;
3.Temperature computer controlled system, intelligent & high accuracy;
4.Imported photoelectric tracking system (Germany),ensure alignment position.;
5.Germany BUSCH vacuum pump, high vacuum strength and degree;
6.Japan SMC pneumatic system for all solenoid valves;
7.Servo traction adopts Taiwan chain(TYC);
8.Combination sealing mould, whole sealer by Germany silica gel;
9.Magnetic powder type expanding system to ensure the bottom film running smooth;
10.Automatic waste recycling system.
| For more information, please click. | CONTACT US > |
Unionpack, as a professional overseas sales and service team for REZPACK who is one of China’s preeminent packaging machinery manufacturers, with more than two decades of experience in packaging machinery industry, our machine have been delivered to over 3 0 0 0 companies in 3 0 countries. Our partners and technical consultants can be found in Europe, America and Southeast Asia, bringing us techniques and expertise from all over the world. Rezpack is certified to I S O 9 0 0 1 and CE standards, and have obtained more than 2 0 0 patents.
Home to over 2 0 0 talented employees, and the workshop spans 7 0 0 0 square meters, we can produce 1 5 0 diverse sets of packing equipment in one month. Every machine is made based on customer’s requirements and carefully debugged before shipping. Our R&D team is comprised of more than 3 0 people, to develops new equipment to keep up with ever changing technology and market demands. Besides, we have a professional after-service team, comprised of 2 0 people, who can provide one-to-one video calling, door-to-door service, as well as free technical training for our partners.
We do not only produce pouch packaging machine, thermoforming packaging machine but also cooperate with 1 5 professional factories to supply whole packaging solution.
Out target is to create the extra value for our customers. The Customer is our Partner!
| Thank you very much for viewing this page, and wish you a nice day. | Contact Us > |
