Product Details
Brand Name: | LEDFUL | Place of Origin: | China |
Product Description
HD LED Display
HD1.2 | HD1.5 | HD1.6 | HD1.9 | HD2.5
Front maintenance
Front Installation
Cabinet ratio 4:3
High Grayscale
High Refresh
Light and Thin
Parameter
Value | HD1.2 | HD1.5 | HD1.6 | HD1.9 | HD2.5 |
Pixel Pitch(mm) | 1.25mm | 1.5625mm | 1.667mm | 1.923mm | 2.5mm |
Pixel Matrix Per Sq.m | 640000 | 409600 | 360000 | 270400 | 160000 |
Pixel Configuration | SMD1010 | SMD1010 | SMD1010 | SMD1010 | SMD2121 |
Scan | 1/30 | 1/32 | 1/30 | 1/26 | 1/30 |
Cabinet Resolution | 320x240 | 256x192 | 240x180 | 208x156 | 160x120 |
Brightness (nits) | 800 | ||||
Module Dimension | 200x150mm / 0.66x0.49feet | ||||
Cabinet Dimension | 400x300x75mm / 1.31x0.98x0.25feet | ||||
Cabinet Weight | 4.6kg /10.1Ib ( Die-casting Aluminum) | ||||
Service Access | Front | ||||
Refresh Rate (HZ) | ≥3840 | ||||
Grey Scale (bit) | 16 | ||||
Viewing Angle (H/V) | 160 / 160 | ||||
Power Con. (Max / Avg) | 500/ 200 w/sq.m | ||||
IP Rate | IP31 | ||||
Input Voltage (AC) | 110 / 240 |
* Specifications and photos are subject to change without prior notice.

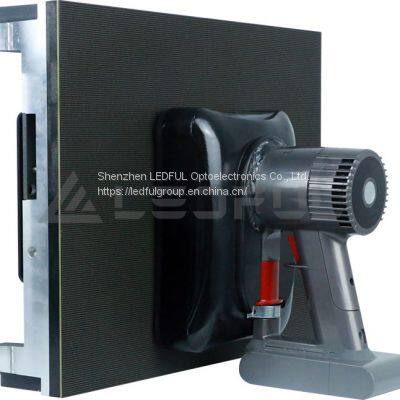

Full Front Maintenance
LED modules, power supply, receiver card, hub card, cables are all front service.
Front Installation
Each corner of cabinet have a screw hole, screw M8 bolts to fix bare cabinet on the wall.
Assembly modules onto the cabinet.
Each corner of cabinet has a screw hole, screw the M8 bolts to fix bare cabinets on the wall.
Assemble modules onto the cabinet in order.
Ultra Wide Viewing Angle
Both 160° from horizontal & vertical for the viewing angle.
Seeing from five directions, it would be still the natural and clear image in an LED display.
Ultra High Definition
It delivers a truly amazing picture with extraordinary pixels producing an image that is HD quality in an LED Screen.
Ultra Fast Response
The response speed exceeds the response limit of the naked eyes,
while playing the high speed dynamic images in an LED Screen,
it will have more advantages, there will be no ghosting&twisting and it will perfectly provide the dynamic images.
High Contrast Ratio
High-end Black Body SMD Encapsulation, Excellent Performance, it has outstanding performance
when works on the color and has very good contrast.
High Refresh Rate
It could be reach 3840HZ.
High Refresh Rate
It has almost the perfect gray scale and gives true color of the images,
there will have no data loss and you could see every details clearly.
LEDFUL is a professional outdoor led screen manufacturer. We provide Rental Event LED Display, Fine Pitch LED Display, Sports Perimeter LED Display, street advertising screens, HD LED screen and so on. Want to know about hd led screen? Please contact us.
