Help CenterFresh Vegetable Tomato/Cucumber Packing Machine
Related Products
-
Low Cost Pillow Bag Dates Packaging Machine for Khalas DateNegotiableMOQ: 1 -
High Speed Ham Sausage Packaging Machine Dried Meat Sachet Packing MachineNegotiableMOQ: 1
-
Automatic Small Candy/Nougat Packing Machine For Mini SugarNegotiableMOQ: 1
-
Manufacturer Packing Machine 20g Chanachur Packaging MachineryNegotiableMOQ: 1
-
Roasted Seaweed Packaging Machine With Tray Automatic PackingNegotiableMOQ: 1
- In here We not only offer the packing machines, we also provice satisfying solution for your product packaging!
- Over 12 Years Manufacturere & OEM Experience.
- Gold supplier& Trade Assurance member.

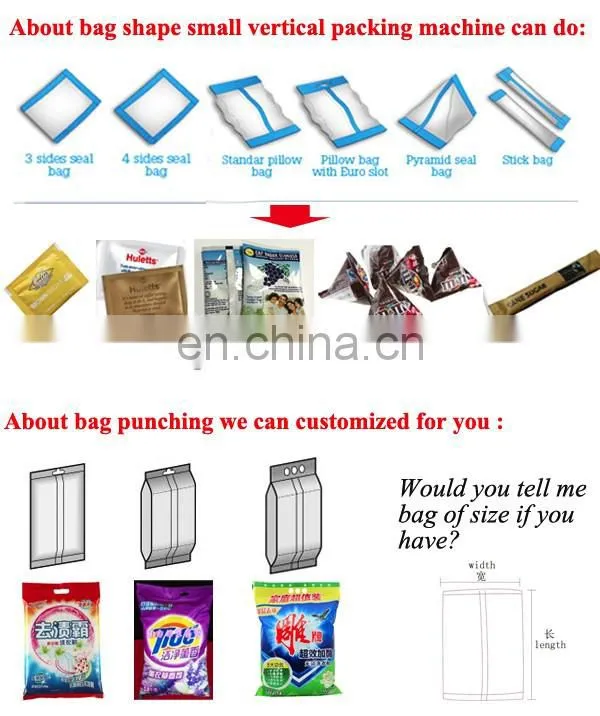

Which bag of shape we can do for you?
What kind of products can used this type Packing Machine?
Suitable for vegetables, pepper, lettuce,breads, biscuit,medical things such as packaging.
Some finished sample show for vegetable

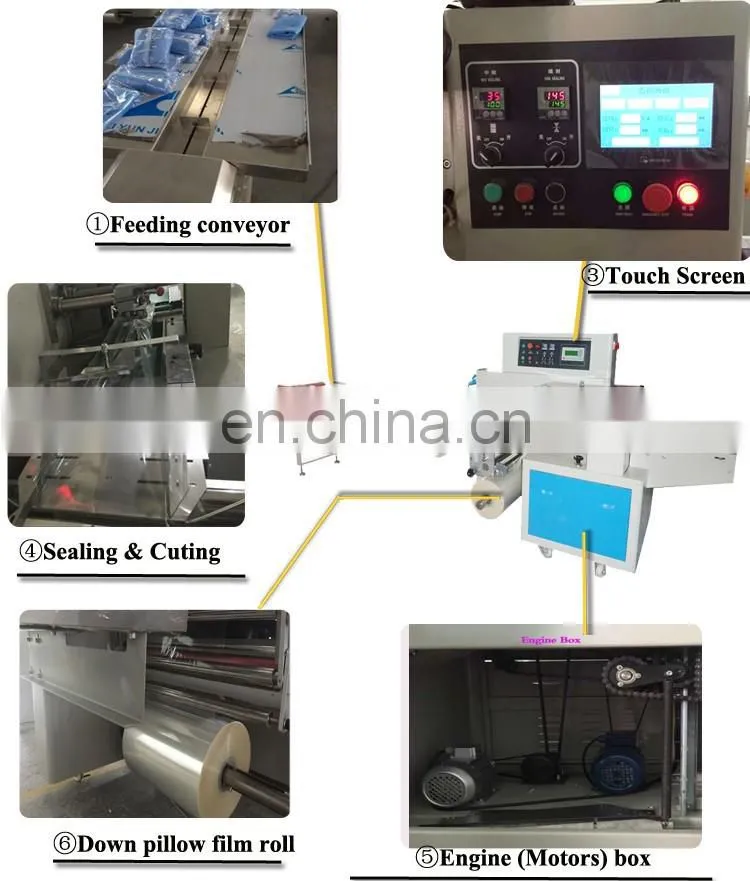

Would you tell me the name of each parts?
Of course, please checking below drawing, have any question please does not hesitate contact us.
Need More optional device can be choosen..
Optional Function:
1. Hole punch device 2. Tear notch device
3. Link bag device 4. Flip device
5. Gusset bag 6. Dust collected device
7. Static charge Eliminator 8. PE bag device
Optional External Device:
1. Air Compressor
2. Check weigher
3. Metal detector
4. Nitrogen machine
We will meet your requirement,pls do not hesitate to contact us...
What is Specification of Packing Machine?
We have several Models.
Don't Worry! We can customize the suitable one for you according to your requiredment.
Just Tell us : Specification or Bag Size required.
| Rangle of Application | Suitable for kinds of regular objects like food,vegetable, fruit,medicine,daily applances,metals, industrial | |
| Model No. | KV-350X | KV-450X |
| Product height | Max.70mm | Max.100mm |
| Bag Size (mm) |
Length:90-220/150-330 Width:50-160 |
Length:120-450 Width:60-210 |
| Machine Speed | 40-230 Bag/Min | 30-150 Bag/Min |
| Film Width | Max.350mm | Max.450mm |
| Power | 220V50/60Hz2.4Kw | 220V50/60Hz1.2.6Kw |
| Mainframe Size (Mm) | L:4020 W:720 H:1450 | L:39990 W:900 H:1468 |
| Machine Weight | 800 Kg | 900 Kg |
| Packing Film | Any Heat Sealable Laminated Roll, Like Material: OPP/CPP, OPP/CE,PET/PE ETC. | |
| Machine Motion | Continuous | |
| Feeding System | Human Feeding | |
| Packing Film Pulling | Stepping Motor Bag Pulling | |
| Contact Parts | Food Grade Stainless SUS 304 | |
| Sealing Type | Center Sealing; Pillow Type | |
| Main Motor | Main Motor For Panasonic or customized | |
| Temperature Controller | Pid Based | |
| Machine Features | Individual Temperature Control, High Speed Counter, Voltage Vector Control | |
| Language | English+Arabic+Any | |
| Additional | Toolbox+Operation Instruction | |
| Optional Features | Punching Cutting Device, Pneumatic Coding Device, Nitrogen Flushing Device | |
More pictures about packin gmachine:
Machine Packaging :
Wooden case: 2
Total Size (CBM): 4.5 CBM
We will do the best like this:
1) Dedust & Cleaning 4) Wrap Modules With Plastic Film
2) Lubricate Drive Parts 5)Packing Modules into Standard Export Plywood Cases By Shipping Or By Air
3) Divide Machine Into Modules 6)Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
Shipping:
Upon receipt of payment , delivery date will be in 10-25days,
By Air, by Sea or by Express (DHL etc)
Shipment cost will depend on the destination, shipment way and the weight of the goods
Payment:
- We Accept T/T and Western Union are accepted.
- 30% deposit before production and 70% balance before shipment.
- All banking charges outside China are on buyers.
- If buyer have any problem about payment, please contacts us ASAP.
For Custom-made machine:
We have Great customized and design ability. Any required custom made machine can be designed and manufactured for convenient operation and reasonable cost, making your packaging system work smoothly.
For Installation:
1) We provide videos and instruction manual to show the process of installation.
2) We provide training for installation for free in our factory.
3)We can send technician to buyer's factory to install the machine and provide training service.
After-Sale Service:
1. Warranty : 1 years(Electric accessories) and free life time maintenance.
2. With professional after-sales service team, we can provide you with a satisfied and technical service no matter which country you are in.
3. Any videos of packing machine installation, adjusting, setting, maintenance are available for any buyer.
4. If you got any problem when using the machine and the videos can not help, our technician will have video chatting with you to fix your problem.
5. When the machine finished, we will send you the Free Parts, Packing Machine Manuals and video, tell you how to installed the packing machine and how to using the packing machine.
Any times if have a any question please does not hesitate to contacts Us.
GOOD QUALITY WAITING FOR YOUR CHECKING:
DEAR, You will find out not only packing machines here,but a set of satisfying solution for your product packaging.
Any Inquiry, pls feel free to contact us!
1: How to find a Packing machine suitable for my product?
Tell me about your product details.
a. The weight you packed .
b. The size of your product( the length, width and height ).
2. Are you factory or trading company?
We are the factory, and especially R&D, manufacture and sell various packing euipments. We have engaged in the packing R&D and production over 10 years.
3. How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
4. We are afraid you won't send us the machine after we send you the money?
Please note our above business license and certificate. And if you don't trust us, then we can use alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
5. Why we should choose your company?
We are professtional in packing machines over 12 years, and we provide better after-sales service. You guarantee no risk for our deal.
Please let us know the follow packing details when you offer, so that we can check if this model is suitable for your case. Thank you in advance.
1. What is your packing product?
2. How many grams per bag?
3. What is your bag size(the width and length)?
4. What is voltage and Hertz in your local?
We are looking forward to hearing from you soon.
If you want to design the special packing machine, we can manufacture the packing machine as your requirements.
How To Come To Kingvictor Machine Factory?
Path1. We are near the Guangzhou Baiyun airport, by car 1 hours can received.
Path2. Also near the Guangzhou south of station, by Taxi only 30 minute.
Path3. Before you coming please contacts us, we will pick you up from your Hotel or Airport.
Please contact your Key Client Manager Ms.Livia directly
wechat / whatsapp number : 0086 131 1888 9528
