Automatic Honey Stick Filling and Packing Machine Roller Pressing Type Packaging Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Coconut Water Packing Machine Juice Milk Filling MachineNegotiableMOQ: 1 -
Detergent Liquid Soap Packing Machine Shampoo Pouch Packaging MachineNegotiableMOQ: 1
-
Automatic Oil Filling Machinery Crude Palm Oil Packing Machine Factory PriceNegotiableMOQ: 1
-
Oil Sachet Filling Machine Roller Pressing Type Packaging MachineNegotiableMOQ: 1
-
Tomato Sauce Packaging Machine Ketchup Sachets Packing Machine High SpeedNegotiableMOQ: 1
Foshan KingVictor Machinery Co. Ltd
Factory area:11,000M² Employees:300
certificates:CE SGS Founded in:2004

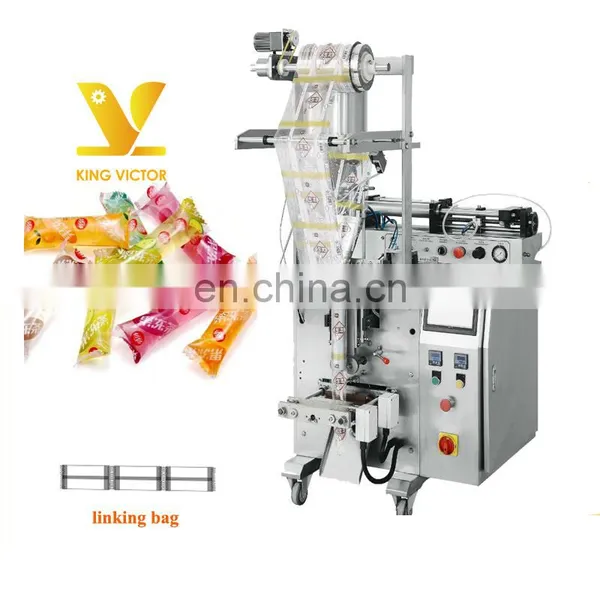

photo of machine

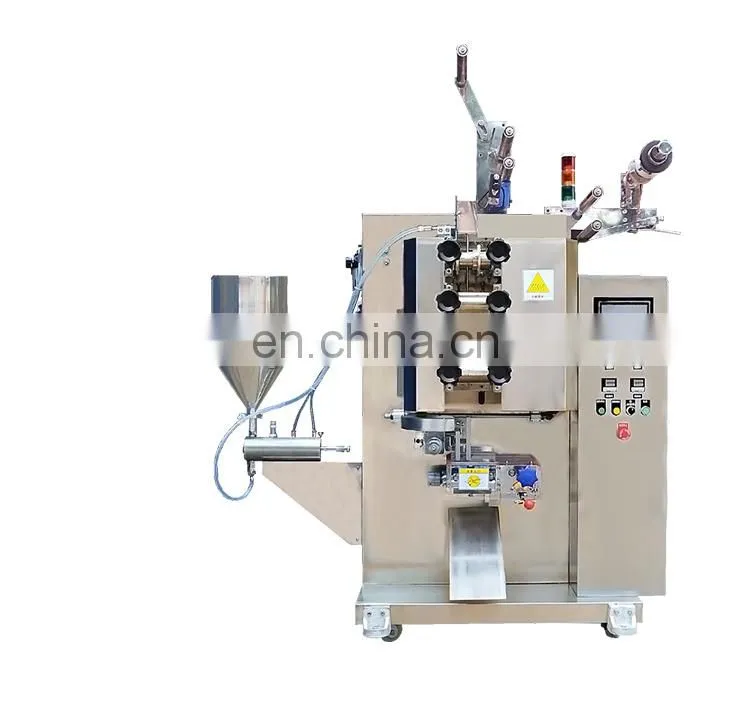

Roller pressing type/liquid stick packing machine
Suitable for packaging honey stick,jelly stick,soy sauce, milk,mineral water, edible oil, fruit juice stick,carbonated beverage,chemical liquid, etc.
support 3/4sides seal,stick package
speed:100bags/min
Liquid Delivery
1. The machine is controlled by PLC system
2. Realize the fusion of servo system and frequency conversion system
3. Complete the film feeding system, the synchronous matching of the drum drive system and the unloading system

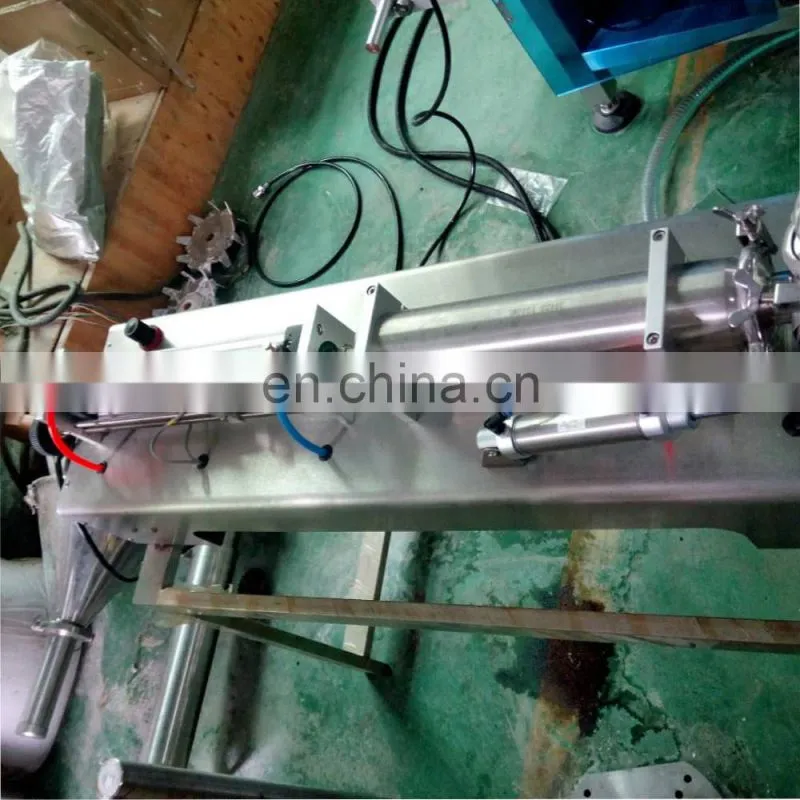

Filling Device
The bag length and positioning are easy to adjust, accurate and convenient;
The length of the bag, the adjustment of the cursor positioning;
The length of the bag and the cursor are easy to adjust and adjust;
Strips full of bubbles
Product Parameter
Model |
KV-188LYS |
|
Packaging speed |
30-100bags/min |
|
Bag width |
40-90mm |
|
Bag Length |
80-130mm/120-200mm |
|
Product Height |
Max.110mm |
|
Power Specifications |
220V
50/60Hz
|
|
Equipment power |
4.5Kva |
Packing products
successful case
package types
stick sachet
back seal
gusset bag
3 side sealing sachet
4 side sealing sachet
Zipper bag
Labeling
Linking bag
Punch hook
Want to know more,please contact us
Our factory
Large vertical packing machine workshop
Horizontal packing machine workshop
Small vertical packing machine workshop
Film production workshop
Design department
Sales department
After-sales Service
Foshan Kingvictor Machinery Co., Ltd, plant area of over 11,000 square meters, respectively, the production of various kinds of packing machine.Sales department has more than 15 years experience in aftermarket master 26 people, responsible for domestic and international sale equipment installation and commissioning, operator training and technical maintenance.
Packing & Delivery
We wrap the machine in film ,put it Into the wooden box.
And put the machine in the lorry,then transport to the port or airport.
Want to know more,please contact us
Our Customers
Customers from Saudi Arabia.
Customers from Germany.
Customers from Spain.
Customers from Nigeria.
Customers from America
Customers from Turkey
After sales service
1.Providing professional installation instructions and video of troubleshoot.
2.Providing machine control software updates and operation teaching in our factory.
3.Two years free maintenance for touch screen,inverter,PLC, temperature controler,photoelectric sensor with freight prepaid.
4.Engineers available to service the machinery overseas, buyers pay 100 US dollars daily service fees and travel expenses.
5.Pick-up services at BAIYUN airport, providing packaging solutions and testing material on machines, full refund if unsatisfied with the machine.
Certifications
ISO9001,ISO14001,ISO22000
OHSAS18001,BSCI,SA8000
CE,SGS
