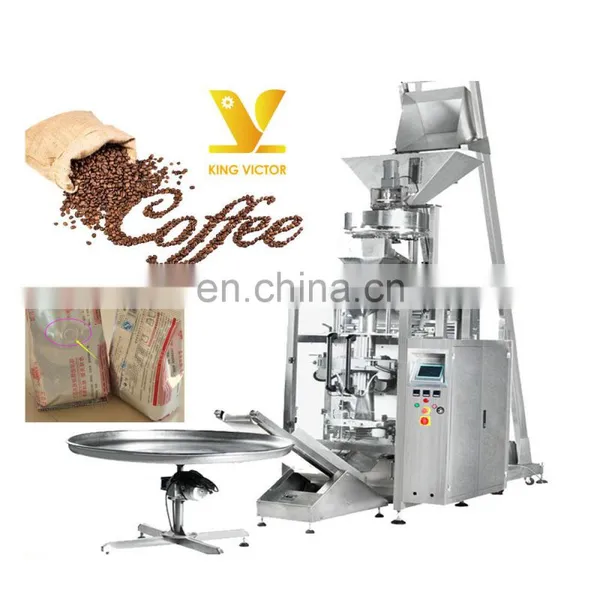

One Way Valve Bag Coffee Beans Packing Machinery
- In here We not only offer the packing machines, we also provice satisfying solution for your product packaging!
- Over 12 Years Manufacturere & OEM Experience.
- Gold supplier& Trade Assurance member.
What kind of products can used this type Packing Machine?
Applications: Suitale for coffee beans ,puffed food, chips ,peanutm melon seeds, rice seeds, monosodium glutamate, white sugar, bean, corn, biscuits and other granule solid materials packaging.

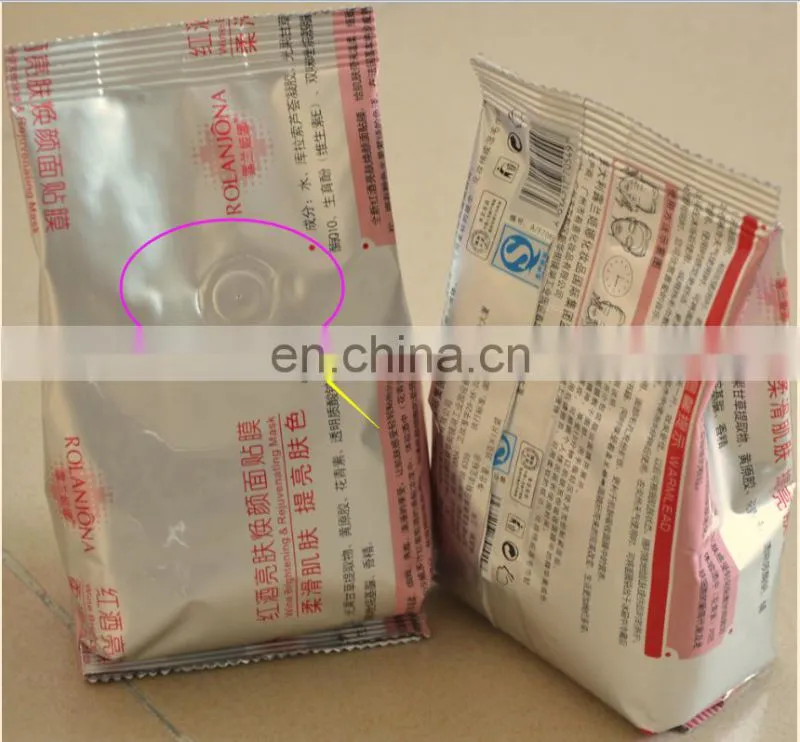

one way valve bag for coffee beans:
More advantages waiting for your discovery!
go ! Below:
What is Funtion of One Way Valve Bag Coffee Beans Packing Machinery?
1.Computer PLC control and automatic alarming function
2.English or Chinese screen display, easy operation.
2.High-sensitivity photoelectric eye color tracing.More accuracy.
3.Bag typecan be customised to 4 sides sealing, pillow bag ,and gusset bag.
4.Packaging material :Paper/pe pet/al foil/penylon/pe,tealeaf filtering paper&ect.
5. Famous brand components, ensure the quality and durability of machine.
6. Weight measuring, bag making, filling, sealing, cutting and bags counting can be done automatically.

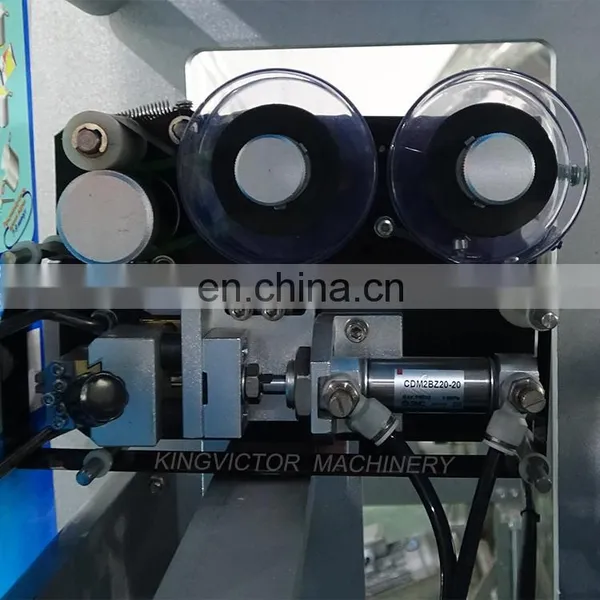

7. Ribbon code printer, link-bag device is option
We have several Models.
Don't Worry! We can customize the suitable one for you according to your requiredment.
Just Tell us : Weight or Bag Size required.
Bean Packaging Machine Specifications: | |
Model |
KV-720BZ |
Measurement |
Cup Volumetric |
Sealing Type |
Back sealing bag /gusset bag(optional ) |

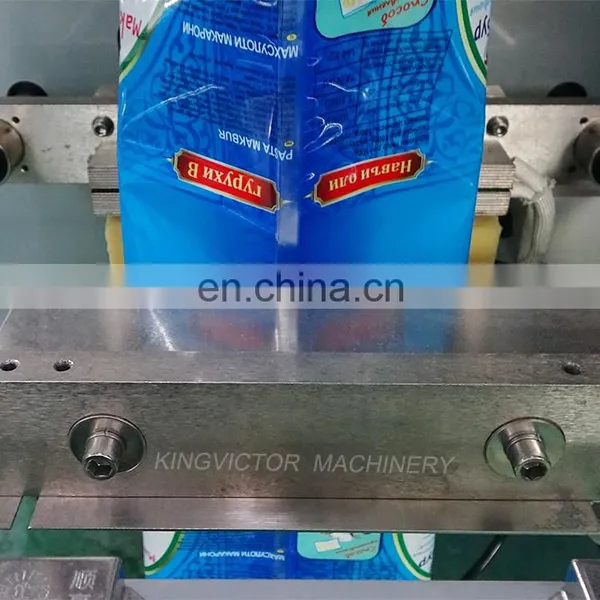

Horizontal Sealing |
Netted Line / Straight Line |
Cutting |
Tooth Cut |
Measurement Range |
500~4000ml |
Packaging Rate |
10~40 bags/min |
Bag Width |
100~350mm |
Bag Length |
100~450mm |
Film Roll Width |
720mm(Max.) |
Film Roll Diameter |
300mm |
Bag Pulling |
Servo Motor Bag Pulling |
Power |
220V,50HZ,3.6KVA |
Machine Size |
1716*1260*1820mm |
Machine Weight |
1000KG |
May I know More details of different parts?
Of course!

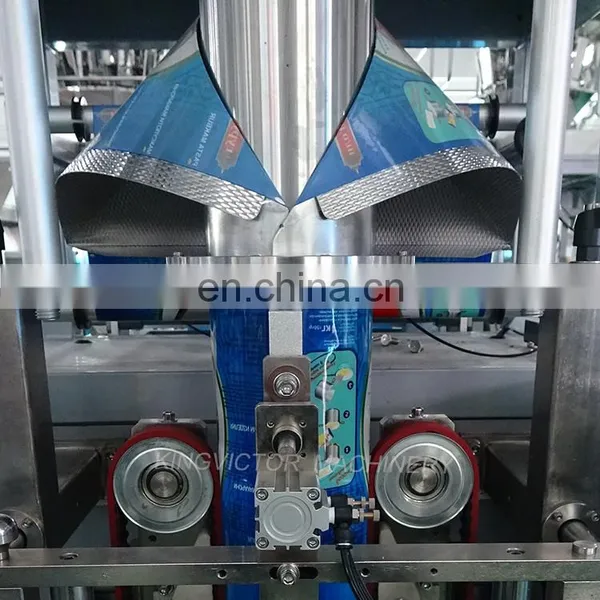

1.Film Pulling
2.Cup Metering details:(Volum Cup is customized based on product material.)
3.Compter Touch Screen(Language is optional.)
4.Customized Hoist: (Based on different product, will customize the suitable one.)

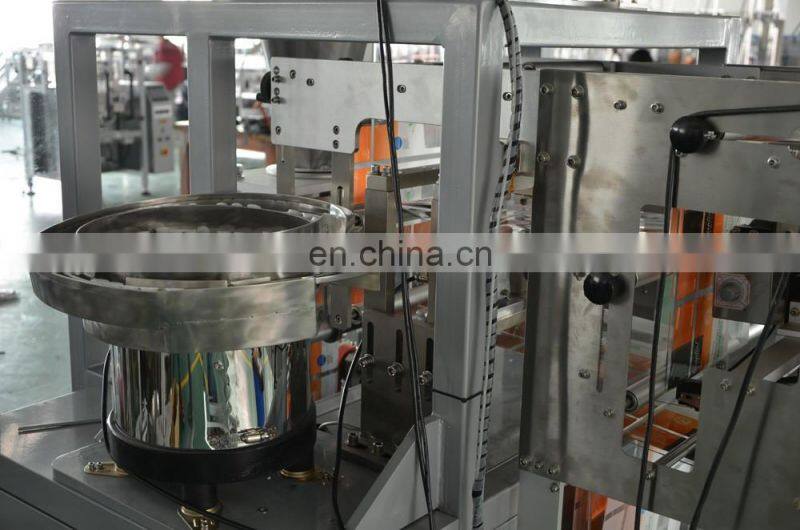

5.Vibrator for one way valve funtion:
More optional device can be choosen..
Optional Function:
1. Hole punch device 2. Tear notch device
3. Link bag device 4. Flip device
5. Gusset bag 6. Dust collected device
7. Static charge Eliminator 8. PE bag device
Optional External Device:
1. Air Compressor
2. Check weigher
3. Metal detector
4. Nitrogen machine
Dear Friends,
Know More details or video as reference, pls feel free to contact Ms.Livia.
Tel: 0086 757 8671 0076
Mob/whatsapp: 0086 159-9202-3018/0086 138-2553-1353
Work process of packing machine:
Packaging & shipping
Packaging :
- Standard Export Plywood case: 5 Caces
- Total Size (CBM): 7.50 CBM
We will according the size of packaging machinery to made of case, and ensure the safe of the packaging machinery.
Shipping:
- Upon receipt of payment , delivery date will be in 20-35 working days.
- By Air, by Sea or by Express (DHL etc)
Shipment cost will depend on the destination, shipment way and the weight of the goods.
- European Countries: 22-28 days.
- United States: East --13-16 days, West--21-28 days.
- Brazil: 30-40 days.
- Russia: 36 days.
- Asia Countries: 3-5days.
Please let us know the follow packing details when you offer, so that we can check if this model is suitable for your case. Thank you in advance.
- What is your packing product?
- How many gram per bag?
- What is bag size(the width ,length)?
- What is voltage and Hertz in your local?
We are looking forward to hearing from you soon.
If you want to design the special packing machine, we can manufacture the packing machine as your requirements.
How To Come To Kingvictor Machine Factory?
Path1. We are near the Guangzhou Baiyun airport, by car 1 hours can received.
Path2. Also near the Guangzhou south of station, by Taxi only 30 minute.
Path3. Before you coming please contacts us, we will pick you up from your Hotel or Airport.
Please contact your Key Client Manager Ms.Livia directly
Tel: 0086 757 86710076
Mob:0086 159-9202-3018/ 138-2553-1353
Whatsapp: 0086 159-9202-3018
Wechat: 0086 159-9202-3018
Imo: 0086 159-9202-3018
Skype: livia1681
QQ: 2279062827
Send Inquiry, Get Best Proposal!
Email us below get products selection and Customization support !
Statement
- The pictures demonstrating in this profile represent products of range, and subject to the newest or customized design;
- Due to the huge number of documentation updating, the data indicated in this profile may not be updated timely, Please contact with our customer service for newest version;
- The features or functions appear in this profile subject to the additional description of quotation.
