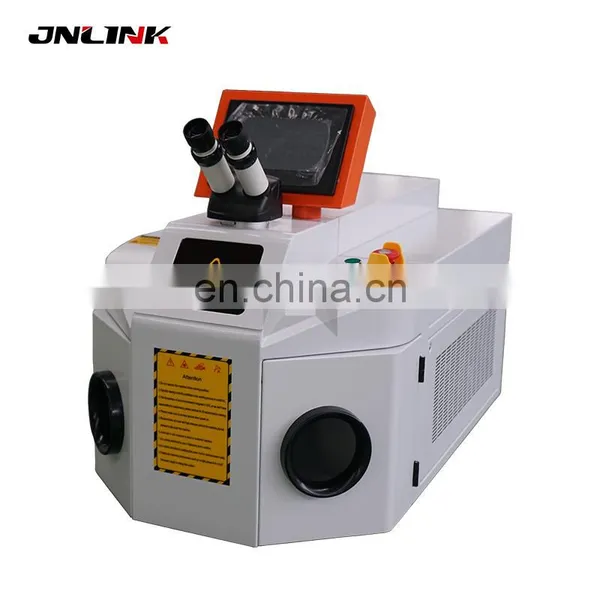

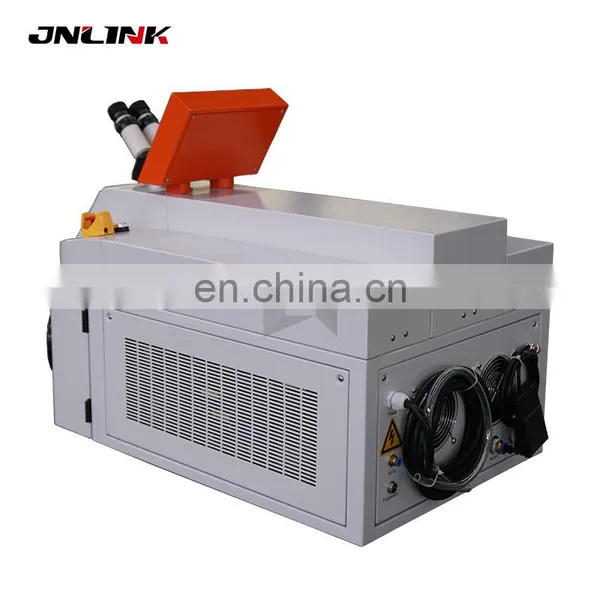

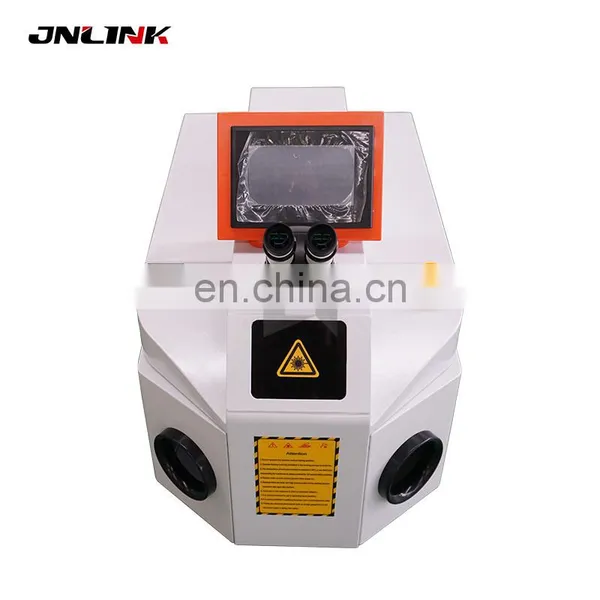

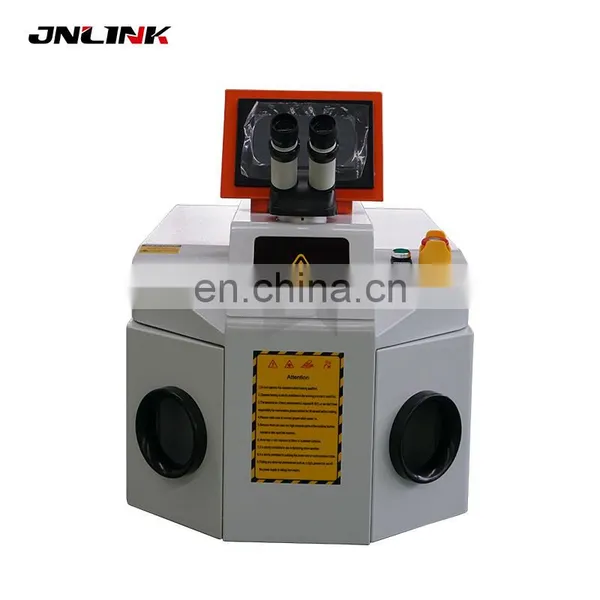

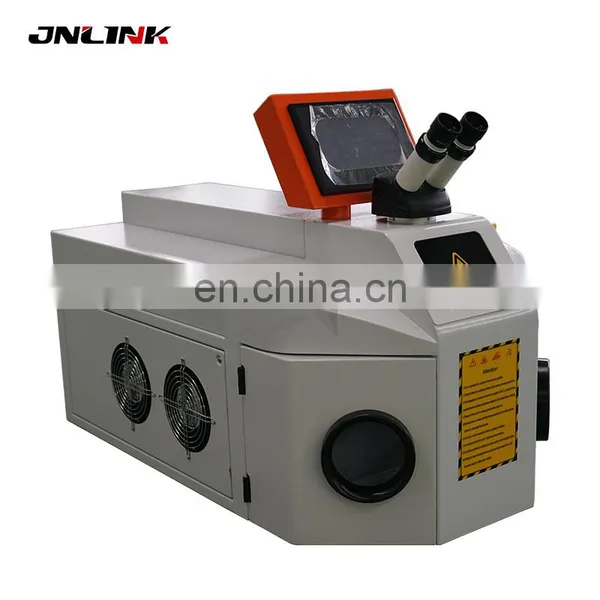

Jewelry repair spot laser welding machine 200w 300w
Tel/WhatsApp/Wechat:+86-15650035655
E-mail:export08 @
Skype:lingxiangcnc8
The jewelry/dental laser weldeing machine is specifically for jewelry laser welding of a product, mainly used in gold,bronze,stainless steel and silver ornaments of the hole and spot welding blisters.This laser welding machine is widely used in jewelry,dental,Advertisement sign field,the prospect of market is good.
1.Jewelry laser welder is high precision (0.1-2mm spot size)welding methold and laser beam is very thin.
2.Laser is quick, Frequency can reach 20HZ.
3. Jewelry,glasses frame,mould,dental teeth need laser welding way which have beautiful welding joints .
4.Jewelry Laser welding machine is widely used in all kinds of metal like gold,sillver,bronze,aluminum.steel and titanium!
5.Laser welding is new product, Buying this product can help you win advanced cleaning market!
6.We manufacture power supply which have big advantage in prices and after sale service.
7.Engineer door to door service.
Product Name |
jewelry laser welding machine |
|
Model No. |
LXW-150 |
LXW-200 |
Laser Source |
Nd:YAG |
|
Laser Wavelength |
1064nm |
|
Rated Power |
150W |
200W |
Laser Energy |
80J |
100J |
Pulse Width |
≤20ms |
|
Pulse Frequency |
≤50Hz |
|
Beam Diameter |
0.1-3.0mm |
|
Power Supply |
220V±10% /50Hz and 60Hz compatible |
|
Observing System |
microscope 10X |
|
Chamber Illumination |
LED circle lamps |
|
Parameters Memorization |
10 groups |
|
Protection Alert |
flow alert |
|
Language Display |
Chinese/English |
|
Shield Gas Supply |
One line(Argon) |
|
Cooling System |
water chiller |
|
Power Consumption |
6.5KW |
7.5KW |
Welding Chamber Dimensions |
340mm*540mm*180mm(L*W*H) |
|
Machine Dimensions |
Welder:970mm*570mm*1220mm (L*W*H) Chiller:430*370*585mm(L*W*H) |
|
Running Environment |
5℃-30℃, 5%-75% humidity |
|
Net Weight |
150kg(welder)+65kg(chiller) |
|
