Choose strong sunshine place to install this monobloc solar heat pump, it can connect second solar water heater together for heating one tank, running will very economical cost suit for home best hot water heating way.

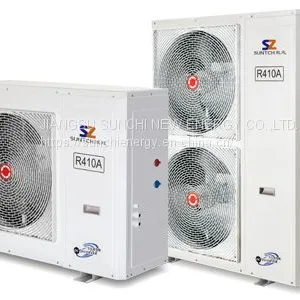

Solar Powered Heat Pump Overview
Solar Heat Pump is new special combine solar heat pipe collector & air source heat pump technology to make super COP: 5.0, main pre-heating R410A refrigerant by solar pipe collector to help compressor working to save 80%~90% power when working in South Africa weather. Passed the Protected patent certificate. Authorized OEM to a business partner.
Running -10℃~47℃ Weather.choose strong sunshine place install this monobloc solar water heater pump, it can connect second solar water heater together for heating one tank, running will very economical cost suit for home best hot water heating way.
Solar heat pump water heater usually has plenty of hot water on sunny days, but the lack of hot water on rainy days. Ordinary solar water heaters are usually equipped with resistance auxiliary heaters. When the temperature is insufficient, the electric auxiliary will be activated to raise the water temperature and meet the bath needs of people. This kind of solar water heater can supply enough hot water even without consuming electricity in summer, but in winter, the hot water is very likely to be insufficient, thus the electric auxiliary needs to be opened to heat the water frequently in winter. However, as the solar water tank is generally placed outside, the heat dissipation is relatively large. If the heating time is not well controlled, the solar water heater will not save too much energy in winter.
SUNCHI light energy heat pump (solar heat pump) water heater uses "solar heating with heat pump" as its principle, this system prefers to use solar heating. Only when the solar energy is insufficient will the auxiliary heating function of the heat pump be started. The system can provide 24 hour-a-day hot water supply without installing the centralized heating tank. The whole system realizes intelligent operation without hand operation. It has functions like automatic water replenishing, frequency conversion and constant pressure and so on. It can save 90% of the energy yearly, and supply hot water constantly 24 hours a day.
Application Places of Solar Hybrid Heat Pump:
1. Suitable for ordinary families, villas, small business units (salons, beauty salons, foot bathroom) and so on.
2. It can be installed on the balcony, the roof, the kitchen, the bathroom and so on.
Solar Hot Water Pump features:
Style: Fashionable, simple and cutting-edge style.
1. The water tank host machine can be chosen as you like, and you can shower anytime as you wish.
2. It can be used in four seasons, COP is as high as 7. (standard condition) When heating the same amount of water, it uses only 1/7 the power that an electric water heater may use.
3. Large storage capacity and constant water temperature, which can instantly meet the all-dimensional water consumption.
4. One key discharge, you can enjoy clean hot water forever.
5. Using food grade stainless steel liner, healthy and long service life.
6. Using international brand compressors, the service life of the whole machine can be more than 10 years.
Solar Hybrid Heat Pump Parameter : Heating Save Energy test
Model | RSV-8A | RSV-12A | ||
Power Supply | DC100V~DC350V + AC 220V/1Ph/50Hz(60Hz) | |||
Heating | Capacity （kW) | 9.3 | 14.5 | |
Test Condition | DB/WB | 7℃ / 6℃ | ||
water inlet /outlet | 30℃ / 35℃ | |||
Rated power consumption | W （withoutwatercyclepump） | 2.2 | 3.4 | |
City power 220V | input power (W) | 164 | 367 | |
voltage (V) | 225 | 221 | ||
current (A) | 0.73 | 1.66 | ||
Solar PV panel | input power (W) | 2036 | 3033 | |
voltage (V) | 186 | 259 | ||
current (A) | 10.95 | 11.71 | ||
Solar PV panel | Specification/QTY/ Connect Way | 300W /10 PCS / 5 pcs Series & 2 parallel
| 300W /14pcs / 7pcs Series & 2 parallel | |
Simulation test running time | 2 hours | 2 hours | ||
after Open Solar PV panel array, | 2036/2200*100%= 92.5% (save energy) | 3033/3400*100%=89.2%(save energy) | ||
Solar Hybrid Heat Pump Parameter : Cooling Save Energy test
Model | RSV-8A | RSV-12A | ||
Power Supply | DC100V~DC350V + AC 220V/1Ph/50Hz(60Hz) | |||
Cooling | Capacity | 8 kW | 12 kW | |
Test Condition | DB/WB | 35℃ / 24℃ | ||
water inlet /outlet | 7℃ / 12℃ | |||
Rated power consumption | W（withoutwatercyclepump） | 2.8 | 4.1 | |
City power 220V | input power (W) | 168 | 370 | |
voltage (V) | 225 | 223 | ||
current (A) | 0.75 | 1.66 | ||
Solar PV panel | input power (W) | 2632 | 3730 | |
voltage (V) | 176 | 245 | ||
current (A) | 14.95 | 15.22 | ||
Solar PV panel | Specification/QTY/ Connect Way |
300W /10 PCS / 5 pcs Series & 2 parallel
| 300W /14pcs / 7pcs Series & 2 parallel | |
Simulation test running time | 2 hours | 2 hours | ||
after Open Solar PV panel array, | 2632/2800*100%=94% ( save energy) | 3730/4100*100%=91.0% (save energy) | ||
JIANGSU SUNCHI NEW ENERGY CO.,LTD. established in 2005, located in Changzhou city, Jiangsu province. with 13,000 square meters of standardized production workshop. We provide Swimming Pool Heat Pump, Solar Hybrid Heat Pump, 7kw water heater and so on. Want to know about suntchi? Please contact us.
